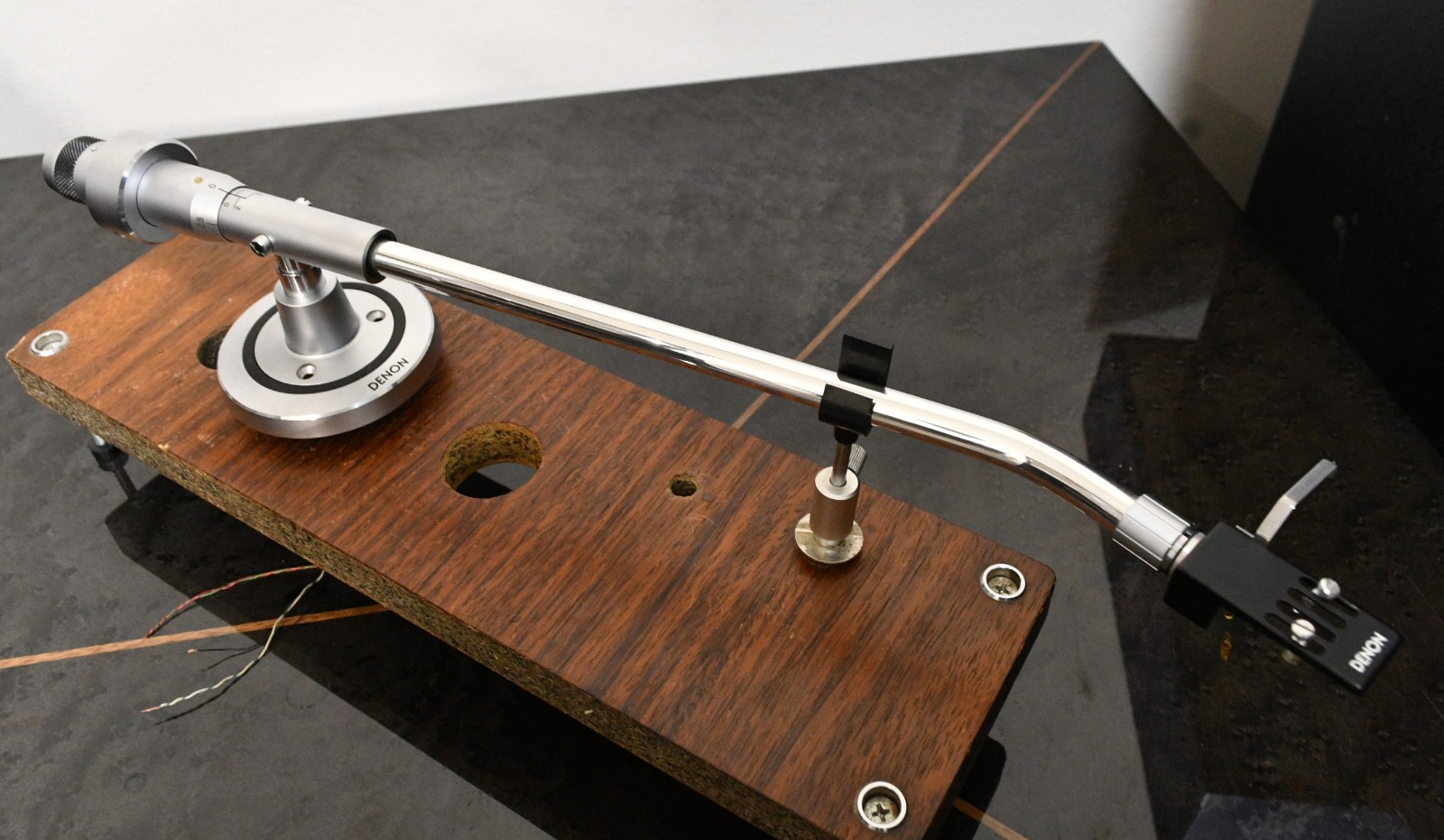

RARE * 60s year DENON DA-304 long tonearm with SME slide base for DL-103 * VG+
This is long tonearm was manufactured by DENON Corp for DL-103 cartridge, using in NHK broadcast. It comes with original headshell.
Perfect working condition.
Specification:
A long-type, static-balance J-shaped tonearm developed and designed for broadcast station use.High-grade miniature ball bearings are used for the horizontal rotation axis, ensuring high sensitivity and reliability over long periods of use. Angular-contact miniature bearings and a hardened, polished pivot are employed for the vertical movement mechanism, achieving both high sensitivity and stability.
The bearing assembly is protected by a special elastic material to minimize the impact of external vibrations.The arm stand features a vibration-damping mechanism incorporating viscoelastic materials to isolate the arm from board vibrations caused by external sources.Gold-plated terminals are used at the cartridge connection point to enhance reliability.A double-indicator micrometer-style mechanism is used for tracking force adjustment.A dedicated headshell designed specifically for the DA-304 is employed; this headshell is engineered to prevent torsional resonance while minimizing mass.
It is also detachable, allowing for easy cartridge replacement.A low-capacitance output cable is used.It supports the use of SP cartridges.
Type: Long-type tonearm
Configuration: Static-balance J-shaped
Total length: 381mm (max)
Effective length: 282mm
Offset angle: 18°
Overhang: 12.5mm
Tracking error: 2.0° (max)
Tracking force adjustment range: 0–3g (0.2g steps)
Compatible cartridge weight range: 5.5g–14.5g
Approx. 11–20g (including headshell)
Included headshell: Dedicated headshell
Headshell weight: 5g
Height adjustment range: 45–75mm (armboard to center of arm pipe)
Mounting board thickness: 10–25mm (3-point nut mounting)
