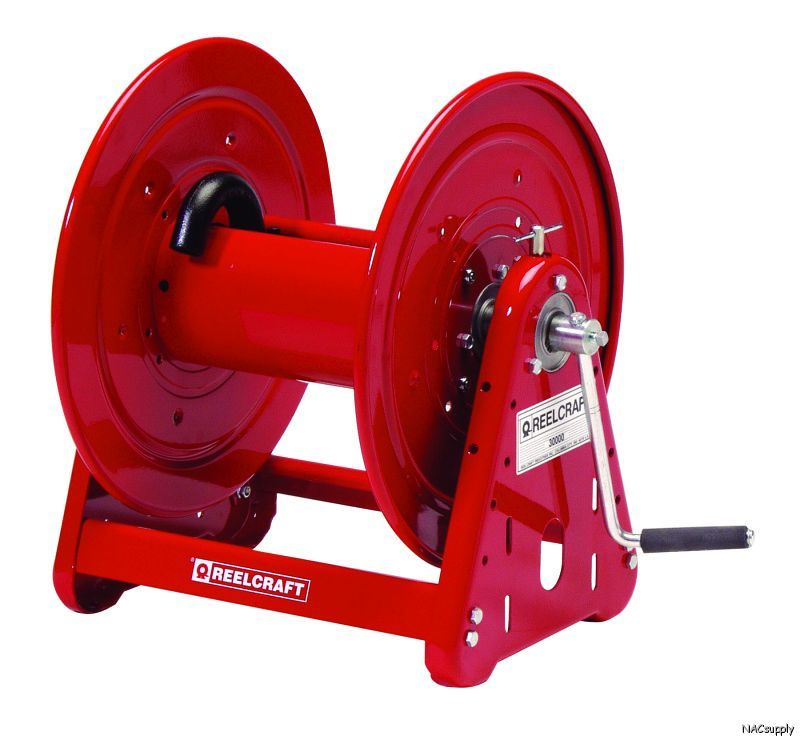

REELCRAFT HOSE REEL 3/4" x 100' - SEALCOATING For Sale

REELCRAFT HAND CRANK HOSE REEL - CAPACITY3/4" X 100'

Reelcraft's Series 30000 reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000’s vibration-proof, self-locking fasteners are ideal for industrial or field use such as sealcoating, turf care or pest control.
Caution: To prevent drum damage, fully extend and pressurize hose, then wind on the reel. The 30000 series should always be wound under 3/4"

O.D.-- 1.88"

Thread Type-- NPT

Hose Capacity-- 100 ft.

Pressure-- 1,000 psi

Inlet (F) NPTF-- 3/4"

Weight-- 42 lbs.

Height-- 20.5 inches

Width-- 21.5 inches

Depth-- 18 inches

Hose Included-- No

Features:

• Adjustable spool rotation drag that eliminates hose backlash
• Nickel-plated swivel with four O-rings
• Options: AFLAS (std), Buna, Viton® or EPR (Standard Swivel) seals
• Full flow shaft and ball bearing swivel (excludes 1/2" models)
• Permanently lubricated dual main bearings
• Motor mounting at either end of reel
• All bolted construction - no welds
• Optional lock pin to prevent spool rotation when the reel is not in use S600874

• Temperature operating range from -20° F (-29° C) to +250° F (121°C)

• Vibration-proof self-locking fasteners to ensure assembly integrity
