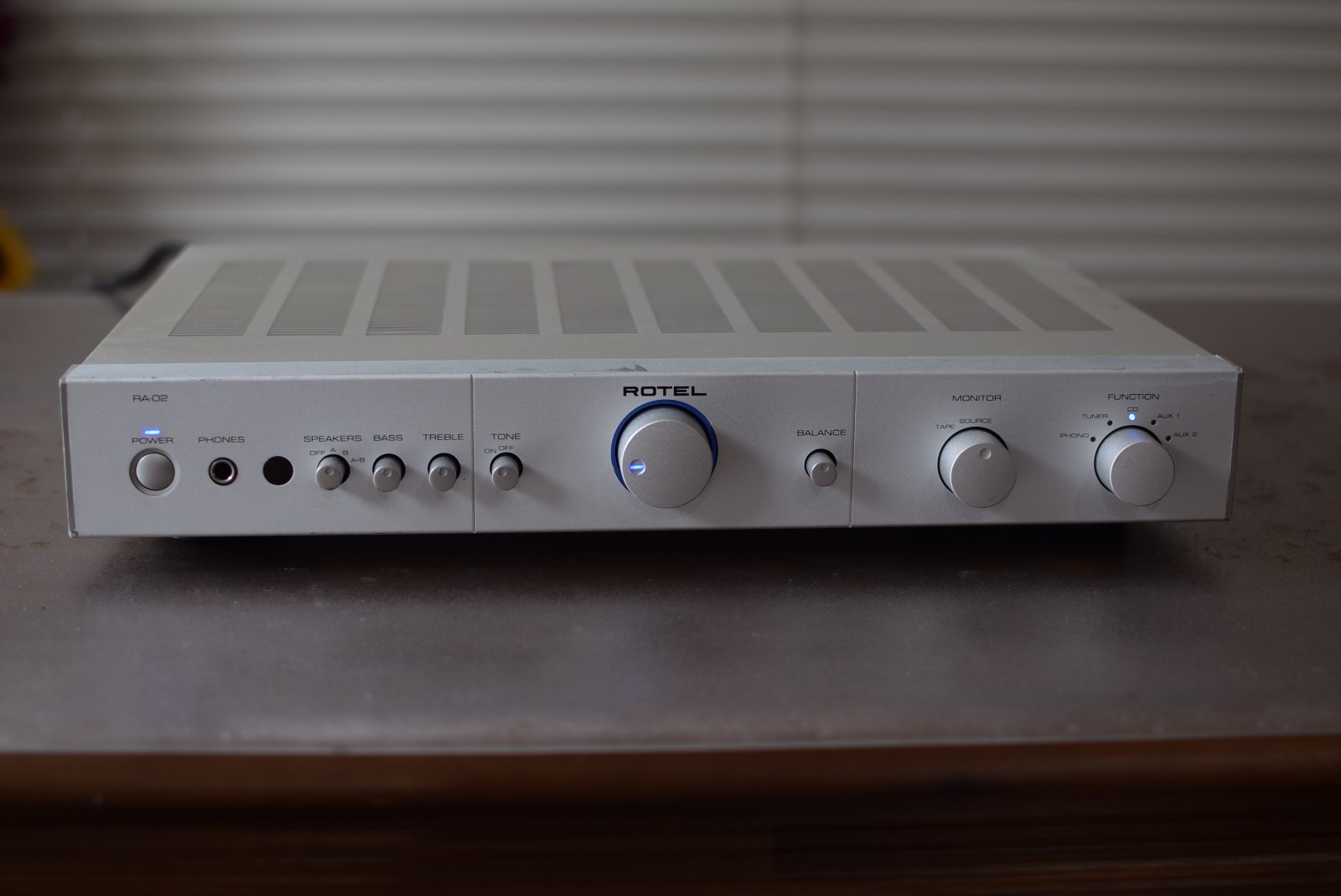

ROTEL RA-02 INTEGRATED AMPLIFIER WITH PHONO:
$199.00
Rotel RA-02 Stereo Integrated Amplifier in great working condition. Cosmetics are as shown on photos, zoom if you have to. No remote, manual or original box are included. Shipping is flat $30 to Continental USA only.Amplifier Performance - Power Output: 40 Watts RMS per channel (8 ohms, 20Hz–20kHz)
- Total Harmonic Distortion (THD): < 0.03% (at rated power, 1/2 power, or 1 watt)
- Intermodulation Distortion: < 0.03%
- Frequency Response:
- Line Level Inputs: 10Hz–40kHz (±1dB)
- Phono Input: 20Hz–15kHz (±0.3dB)
- Damping Factor: 180 (20–20,000 Hz, 8 ohms)
- Signal-to-Noise Ratio (IHF A-weighted):
- Line Level: 100 dB
- Phono: 80 dB
Inputs and Outputs - Inputs: Phono (Moving Magnet/MM), Tuner, CD, Aux 1, Aux 2, and Tape Monitor
- Input Sensitivity / Impedance:
- Phono: 2.5 mV / 47 kohms
- Line Level: 150 mV / 24 kohms
- Outputs: Speaker A/B terminals, Preamp Output (1V / 470 ohms), and a headphone jack
- Control Connections: 12-volt trigger out, infrared remote in/out
|
