RPM Signal Pick Up Lead Clamp Kit for Automotive Multimeter Gas Engine Diagnosis For Sale

【Please Note】This signal pickup tool ONLY works with a digital multimeter or oscillograph that has Signal Input Function. The ignition frequency of the engine ignition system must be between 10 Hz and 400Hz【Accurate Speed Tester】This tachometer compares the pulse sequence with the measured pulse frequency, and calculates the relationship between ripple balance and speed to keeps track of the true engine RPM for all types of gasoline engines.【Wide Measuring Range】The 600RPM~12000RPM general detecting range of this RPM signal pickup clamp allows you to detect the RPM of the spark plug ignition gasoline engine with ease.【Hassle-free Installation】Simply connect the leads to the input terminals of the automotive multimeter for accurate automotive engine adjustment and diagnosis.【After Sale 705A Inductive Pickup Clamp Lead for Automotive Multimeter - Tachometer Sensor for Spark Plug Wire, Measure Engine RPM (600~12,000 RPM), 10cm Detection Distance, 400Hz Max Frequency【Please Note】This signal pickup tool ONLY works with a digital multimeter or oscillograph that has Signal Input Function. The ignition frequency of the engine ignition system must be between 10 Hz and 400Hz
【Accurate Speed Tester】This tachometer compares the pulse sequence with the measured pulse frequency, and calculates the relationship between ripple balance and speed to keeps track of the true engine RPM for all types of gasoline engines.
【Wide Measuring Range】The 600RPM~12000RPM general detecting range of this RPM signal pickup clamp allows you to detect the RPM of the spark plug ignition gasoline engine with ease.
【Hassle-free Installation】Simply connect the leads to the input terminals of the automotive multimeter for accurate automotive engine adjustment and diagnosis.
【After Sale Service】The different ignition systems might lead to various testing results, please feel free to contact us for technical support, any questions you are welcome to turn to us.HoldPeak HP-705A Inductive Signal Pick Up Clamp
Works perfectly with signal input function multimeter for rpm measurement
The signal pickup lead is professionally designed for adjustment and diagnosis of automotive engine, and it can be used with oscillograph or multitester to measure frequency or tach rpm.
HP-705A pickup kit needs to work with digital multimeter features with signal input and capable of measuring parameters of vehicle engine systems.
Adapting standard banana plug of 3/4 inch, inductive clamp is compatible with most multimeters with signal input functions.Features:
Tach Measuring Range: 600RPM ~ 12000RPM
Detection Mode: Magnetive Induction Measurement
Applicable Engine: Spark Plug Igintion Gasoline Engine

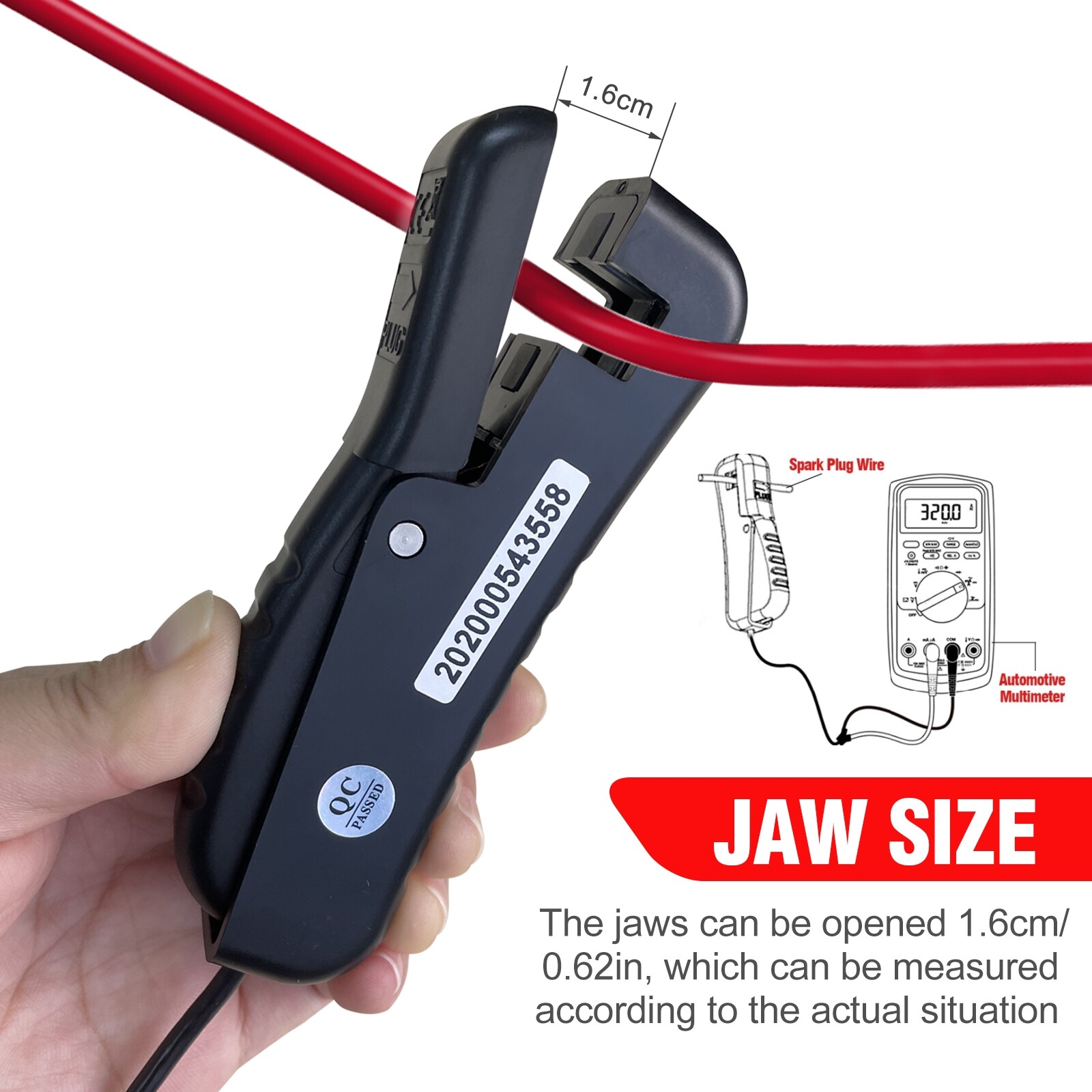

Detection Site: Secondary End Conductors of High Voltage Ignition Coil☞ Operating InstructionConnect the clamp of the instrument to a spark plug wire with the mark ”→ “ on the instrument pointing to the spark plug.
Connect the plugs of the instrument to the input terminals of the automotive meter (The black plug of this instrument should be connect to “COM” jack of the automotive meter)
Set the automotive meter in corresponding measuring range.
Read the valve on the LCD display. If no reading is received, unhook the clamp, turn it over and connect again.

☞Before Buying:

• The different ignition systems of the engine might lead to various testing results.

• The ignition frequency of the engine ignition system must be between 10 Hz and 400Hz.

• This signal pickup tool ONLY works with a digital multimeter or oscillograph that has Signal Input Function.

☞What do you get?:

·1* Instrument

· 1*705A RPM Inductive Signal Pickup Meter
