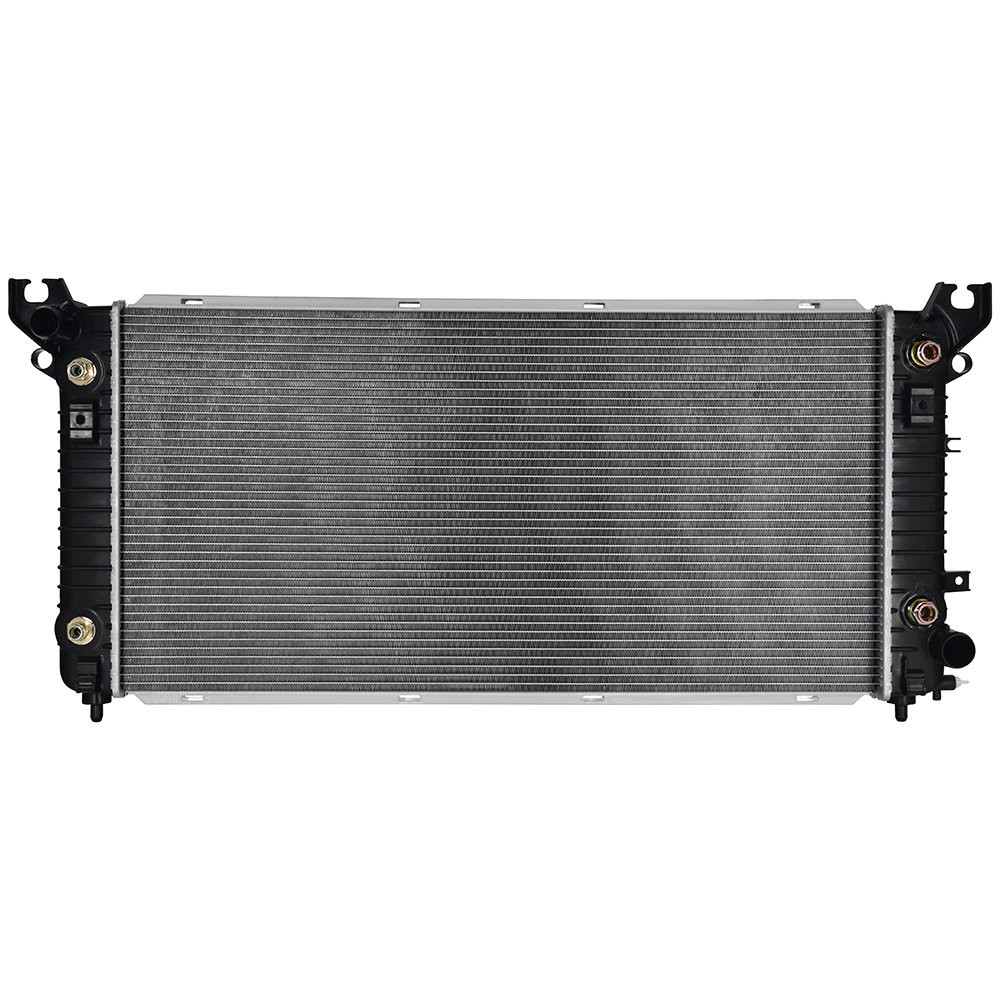

Radiator For 2014-2016 Chevrolet Suburban 2014 Chevrolet Suburban 1500 Aluminum For Sale

Welcome to our store!

To avoid you buying the wrong parts, DO CHECK the compatible chart above before placing order.

• Choose a vehicle from the "My Garage" list. Or

• Enter your vehicle's details withYear / Make / Model / Trim / Engine.Or

• Contact us: Ask us for double check.

  Cadillac Escalade
  2015-2016 Cadillac Escalade ESV
  2014-2015 Chevrolet Cheyenne
  2014-2016 Chevrolet Silverado 1500
  2014-2016 Chevrolet Suburban
  2014 Chevrolet Suburban 1500
  2015-2016 Chevrolet Tahoe
  2014-2015 GMC Sierra
  2014-2016 GMC Sierra 1500
  2014-2016 GMC Yukon
  2015-2016 GMC Yukon XL
  2014 GMC Yukon XL 1500

  Placement on Vehicle:

  Front

  How to clean radiator

  1.Cleaning Radiator Fins

  • ​Let the Radiator Cool Down
  • Dilute the Cleaning Solution
  • Clean the Radiator Fins With the Solution and Soft-Bristled Brush
  • If Some Radiator Fins Get Bent, Straighten With a Flathead Screwdriver
  • Rinse the Radiator Fins With a Hose
  • Let the Radiator Fins Air Dry

  2.Flushing a Radiator

  • ​Let the Engine Cool Down
  • Put a Catch Pan or Bucket Underneath the Radiator
  • Drain Out the Coolant
  • Dilute the Flushing Solution
  • Pour the Flushing Solution Into the Radiator
  • Drain Out the Flushing Solution
  • Pour Distilled Water Into the Radiator
  • Refill Coolant Into the Radiator
  • Monitor the Cooling System and Resolve Issues

  How to replace the radiator

  • Remove the air duct and disconnect the negative battery cable. Take off the air cleaner assembly, and drain the cooling system into a resealable container. Take off the radiator's inlet hose and remove the transmission's cooler lines.
  • Take off the fan shroud clips on the condenser tubes, and remove the bolts that connect the fan shroud to the condenser bracket. Remove the air deflectors.、
  • Disconnect the coolant hose from the radiator overflow and take off the radiator support brackets on the fan shroud. Disconnect the electrical connectors on the engine cooling fan motor, and remove the fan motor harness from the fan shroud clips. Remove the fan shroud.
  • Take off the radiator's outlet hose and disconnect the transaxle oil cooler pipes.
  • Tile the radiator towards the rear and remove the condenser brackets. Lift the condenser brackets and the mounting tabs and position them out of the way. Lift the radiator carefully out of the engine compartment and install the new radiator.
  • Reinstall and reconnect the engine components in the reverse order that they were removed.
  • Fill the new radiator with a mixture of half water and half engine coolant. Start the engine and let it run for a couple of minutes, then turn it off and add more fluids, if necessary. Reattach the negative battery coolant can be reused if it isn't old or contaminated. However, if you choose not to reuse it, take it to a garage or a hazardous waste facility for proper disposal.

    2.Warnings

    To avoid scalds, wear gloves and protective clothing before changing the radiator, and always be sure the engine is cool before replacing the radiator. Be sure to keep engine coolant in a sealed container out of the reach of children and pets. If any is spilled, clean it up immediately.

    Package:1pcof brand new radiator

    Pay attention

    1. Please read the relevant description of the product carefully to ensure that the purchased product is what you want, especially the model, product size and pictures.

    2. Be sure to ensure that your delivery address is accurate, so as not to cause unnecessary trouble.

    We are very happy to listen to your valuable suggestions. If you have any questions, please contact us first. We will communicate with you as soon as we receive the information. We hope that our high-quality services will satisfy you.

    Item SpecificsUPC Does not applyBrand autoparts-managerManufacturer Part Number 13571257Manufacturer Warranty 1 YearInterchange Part Number CU13397,Engine Rad,Replacement Radiator,1.03in.Core ThicknessCustom Bundle NoModified Item NoFitment Type Direct ReplacementPlacement on Vehicle Engine CompartmentType RadiatorMaterial AluminumCore Material AluminumTank Material PlasticMounting Style Screw-OnItems Included 1pcs of RadiatorCore Length 33.98in.Core Height 17.25in.Core Thickness 1.03in.Superseded Part Number DPI13397,AC13397,RAD13397Other Part Number RAD13397,engine radiator,cooling radiator,air radiator,aluminiumColor Black or SilverFeatures 100% Leak Tested, Crossflow RadiatorRow Count 1 RowInlet Diameter 1 1/3in.Outlet Diameter 1 5/9in.Hardware Included NoStyle CrossflowNotes Please verify the item fits your vehicle or not by compatibilitynote w/Towing Package
