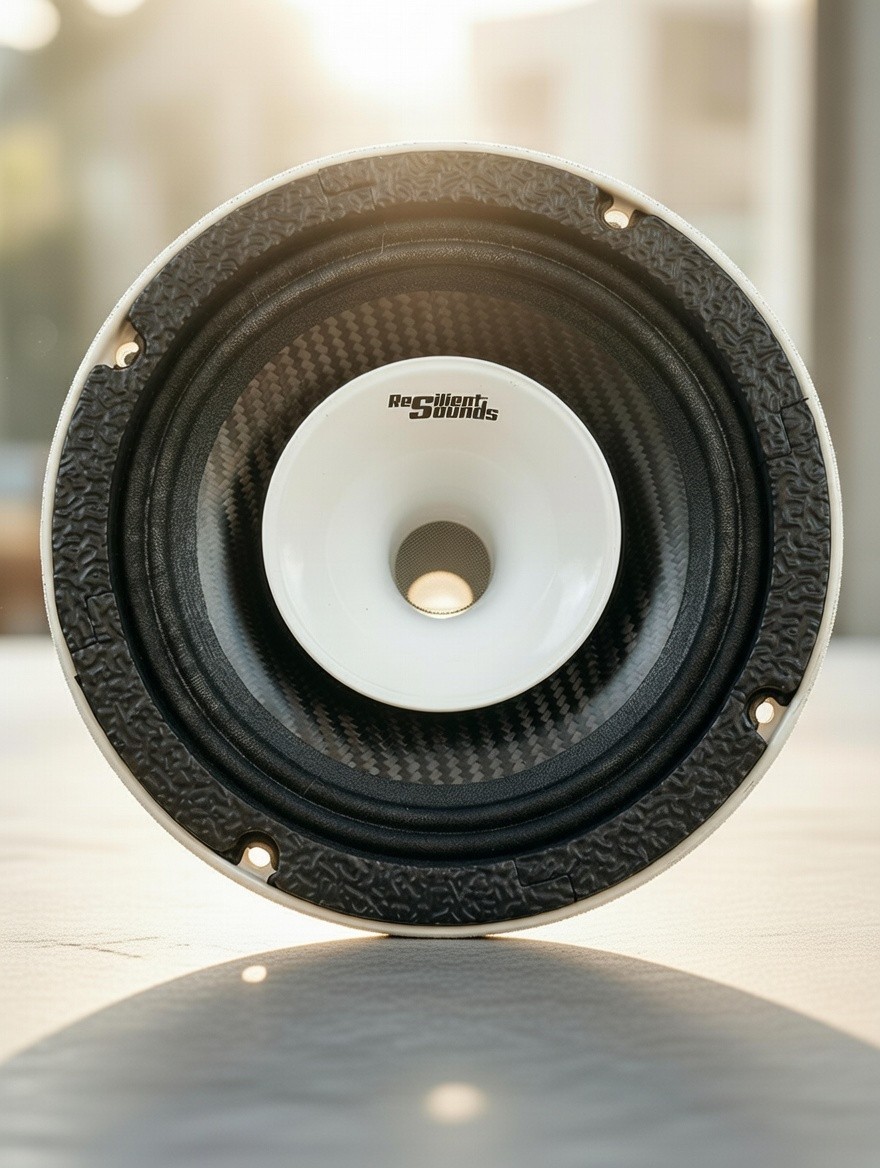

Resilient Sounds CPX6N 6.5" 800W Neodymium Pro Audio Hybrid Loudspeaker with Horn
SOLD INDIVIDUALLY
Bring your system to life with theResilient Sounds CPX6N, a powerhouse6.5-inch midrange speakerengineered for extreme clarity, volume, and durability. Featuring alightweight neodymium motorand2” high-temp voice coil, the CPX6N is built to handle800 watts of peak powerwhile maintaining incredible efficiency. Whether you’re chasing competition-level sound or upgrading your daily driver, the CPX6N delivers unmatched output and precision.
🔑 Key Features
800W Max Power / 400W RMS– High-output performance with clean sound.
2” High-Temp Voice Coil– Withstands extreme heat for long play sessions.
Neodymium Magnet Motor– Stronger magnetic force in a lighter, more efficient package.
100 dB Sensitivity– Extremely efficient, producing massive sound with less power.
Wide Frequency Response (130Hz – 20kHz)– Covers deep midbass through crisp vocals and highs.
Vented Motor Design– Enhanced cooling prevents compression at high power.
Rigid Cone & Surround– Reduced distortion and maximum clarity.
Compact Mounting Depth (3.70”)– Fits tight spaces without sacrificing performance.
Competition-Grade Build– Designed for SPL competitors and serious audio enthusiasts.
Water-Resistant Carbon Fiber Cone– Lightweight, rigid, and moisture-resistant for superior durability and sound accuracy.
📊 General Specifications
Speaker Size:6.5” (165 mm)
Max Power Handling:800 W
RMS Power Handling:400 W
Frequency Response:130 Hz – 20 kHz
Nominal Impedance:4 Ω
Sensitivity:100 dB
Voice Coil Diameter:2”
Voice Coil Wire:CCAW (Copper-Clad Aluminum Wire)
Magnet Type:Neodymium
⚙️ Thiele-Small Parameters
Vas (Equivalent Volume):4.20 L
Fs (Free Air Resonance):130 Hz
Qms (Mechanical Factor):3.88
Qes (Electrical Factor):0.51
Qts (Total Factor):0.45
Sd (Cone Area):136.8 cm²
Mms (Mechanical Mass):9.42 g
BL (Force Factor):7.05 Tm
Re (DC Resistance):3.3 Ω
📐 Mounting Information
Overall Diameter:6.85” (174.0 mm)
Front Mount Baffle Cutout:5.73” (145.5 mm)
Mounting Depth:3.70” (93.9 mm)
Overall Depth:4.12” (104.7 mm)
✅ TheResilient Sounds CPX6N 6.5” Neodymium Midrange Speakercombinescompetition-grade power handling, ultra-high sensitivity, and precise engineeringto deliver incredible clarity and volume in any setup. Perfect for enthusiasts who demand more from their car audio system.
