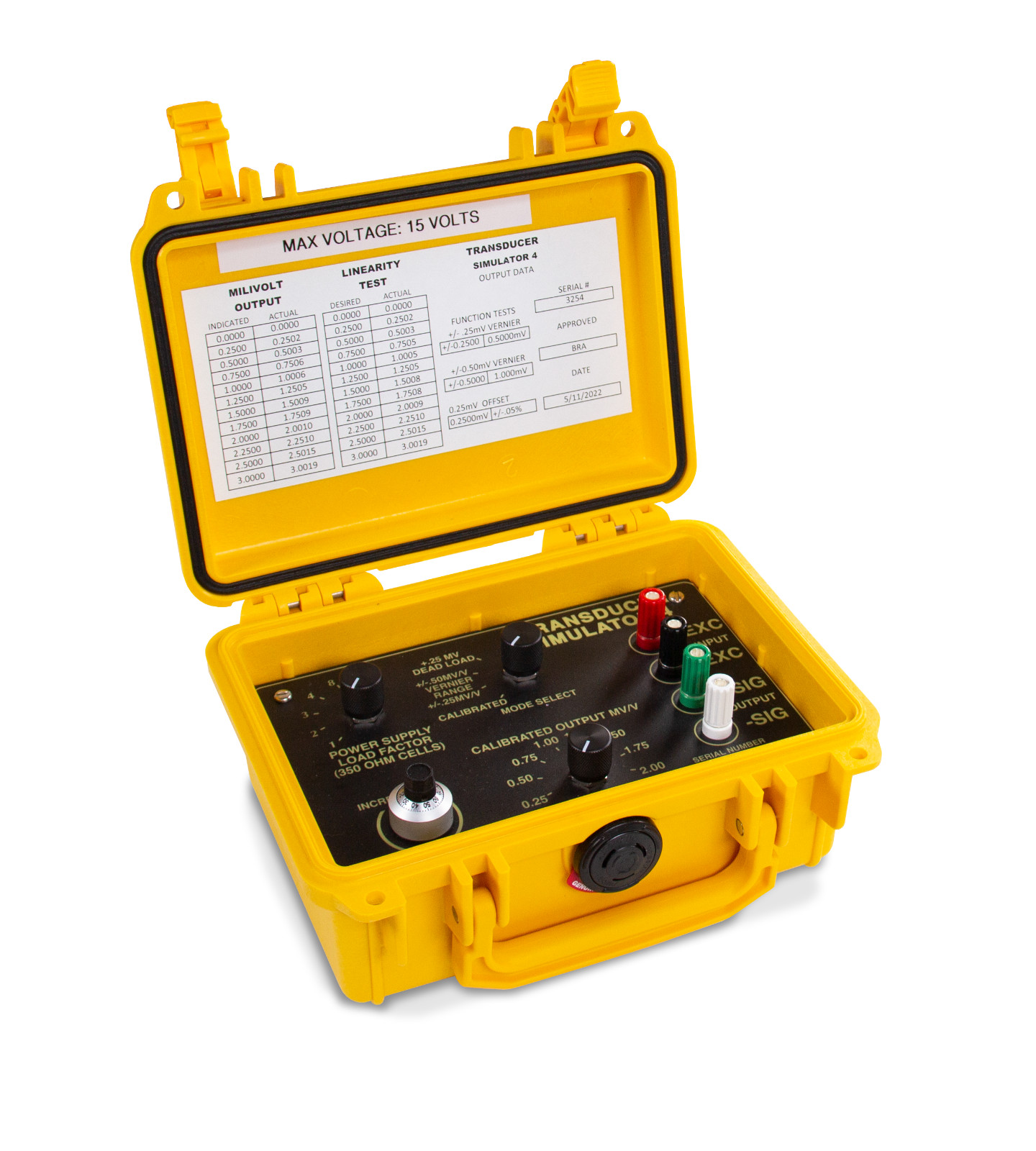

Rice Lake Transducer Simulator 4 Load Cell Signal Simulator Calibration Tool For Sale

TestWelcome To our Shop Rice Lake Transducer Simulator 4 Load Cell Signal Simulator Calibration ToolProduct Description The Rice Lake Transducer Simulator 4 is a professional-grade load cell simulator designed for precision calibration, troubleshooting, and testing of electronic weighing systems. Built for field technicians, calibration laboratories, and industrial maintenance professionals, it accurately replicates a wide variety of load cell conditions, allowing weight indicators and controllers to be tested without connecting an actual scale.

Designed for maximum versatility, the Transducer Simulator 4 supports multiple load cell configurations by simulating one, two, three, four, or eight 350-ohm load cells, or two, four, six, eight, or sixteen 700-ohm load cells. This flexibility makes it an excellent diagnostic tool for everything from small bench scales to large industrial weighing systems.

The simulator offers four operating modes to accommodate virtually any testing requirement:

• Vernier Adjustment
• Calibrated Adjustment
• 0.25 mV/V Offset
• 0.50 mV/V Offset

A precision 10-turn wire-wound potentiometer with locking clutch provides smooth, repeatable adjustments, allowing technicians to accurately simulate load cell outputs for indicator calibration, batching systems, and setpoint verification.

Built for demanding field environments, the Transducer Simulator 4 features a rugged portable carrying case with a sealed neoprene O-ring lid that protects internal components from dust and moisture. The enclosure has been crush tested to 500 pounds, providing outstanding durability during transportation and daily service work.

The simulator delivers excellent measurement stability with less than ±0.02% full-scale linearity and an extremely low temperature coefficient for dependable performance in laboratory and field applications. Binding-post connectors support both loose wires and standard banana plugs for fast, convenient setup.

Whether servicing truck scales, floor scales, hopper scales, tank weighing systems, batching equipment, or process control installations, the Rice Lake Transducer Simulator 4 provides reliable, repeatable performance for professional weighing system diagnostics and calibration.

Key Features

• High-accuracy load cell signal simulator for professional calibration
• Simulates one, two, three, four, or eight 350Ω load cells
• Simulates two, four, six, eight, or sixteen 700Ω load cells
• Four operating modes: Vernier, Calibrated, 0.25 mV/V Offset, and 0.50 mV/V Offset
• Precision 10-turn wire-wound potentiometer with locking clutch
• Sealed carrying case with neoprene O-ring gasket
• Dustproof enclosure, crush tested to 500 lb
• Ideal for setpoint and batching simulation
• Portable all-in-one field service design
• Compatible with most electronic weight indicators operating from 5–15 LakeModelTransducer Simulator 4Part Number22513TypeLoad Cell Signal SimulatorOutput ModesVernier, Calibrated, 0.25 mV/V Offset, 0.50 mV/V OffsetAdjustment10-Turn Wire-Wound Potentiometer with Locking ClutchMaximum Excitation Voltage15 VLinearityLess than ±0.02% Full ScaleTemperature CoefficientAbsolute 5 ppm/°C; Tracking <0.5 ppm/°CLoad Cell Simulation1, 2, 3, 4, or 8 × 350Ω CellsAlternate Simulation2, 4, 6, 8, or 16 × 700Ω CellsOffset+0.25 mV/VConnectorsBinding Posts for Banana Plugs or Loose WiresEnclosureSealed Carrying Case with Neoprene O-RingDurabilityDustproof, Crush Tested to 500 lbWarrantyOne-Year Limited WarrantyApplications
  • Load Cell Simulation
  • Digital Weight Indicator Calibration
  • Scale Troubleshooting
  • Batching System Testing
  • Setpoint Verification
  • Truck Scale Diagnostics
  • Floor Scale Testing
  • Tank & Hopper Scale Calibration
  • Industrial Process Weighing
  • Laboratory Calibration Services
