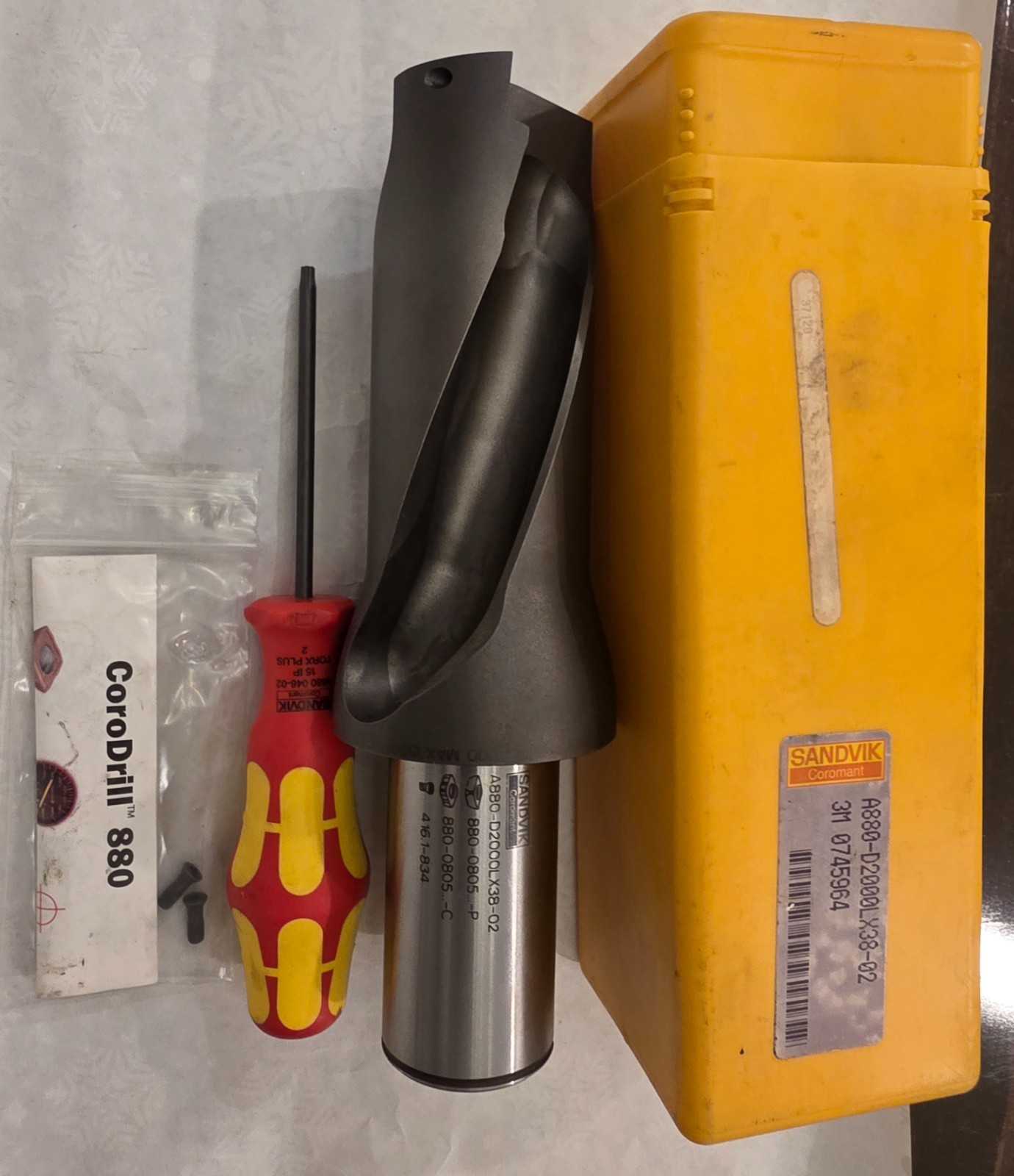

SANDVIK COROMANT INDEXABLE DRILL BRAND NEW A880-D2000LX38-02 For Sale

SANDVIK COROMANT INDEXABLE DRILL A880-D2000LX38-02ApplicationsCalculate cutting dataOpen the tool customizerBuild tool assemblyDownloadsBasic 3D model (STP)DownloadViewDetailed 3D model (STP)DownloadView2D drawing (DXF)DownloadViewGTC Package (ZIP)DownloadBasic tool data (ZIP)DownloadProduct dataMetricInchDATA IN TECHNICAL ILLUSTRATION:Cutting diameter (DC)2 inUsable length (LU)4.0322 inTool cutting edge angle (KAPR)88 °Point length(PL)0.0322 inOverall length(OAL)8.3379 inFunctional length(LF)5.5498 inMORE PRODUCT DATA:Achievable hole tolerance lower(TCHAL)0 inAchievable hole tolerance upper(TCHAU)0.0118 inUsable length diameter ratio (ULDR)2.0161Max. radial adjustment(ADJLX_RAD)0.0256 inInsert type(CUTINT_MASTER_1)CoroDrill 880 -size 08-C (880-080508H-C-GM)Cutting item count(CICT_1)1Clamping type code(MTP)clamp with screw through holeInsert type(CUTINT_MASTER_4)CoroDrill 880 -size 08-P (880-0805W08H-P-GM)Cutting item count(CICT_4)1Torque(TQ)26.5522 in lbfOrthogonal rake angle(GAMO)5 °Face effective cutt edge count(ZEFF)1Connection - machine side(ADINTMS)Cylindrical shank (ISO9766 drill shank with flange) -inch: 1 1/2Coolant entry style(CNSC)axial concentric entryCoolant pressure(CP)145 PSIConnection diameter(DCONMS)1.5 inBody length(LB)4.2 inRotational speed maximum(RPMX)info15,000 1/minWeight of item(WT)4.1601 lbRelease date(ValFrom20)1/28/07Release pack id(RELEASEPACK)07.1
