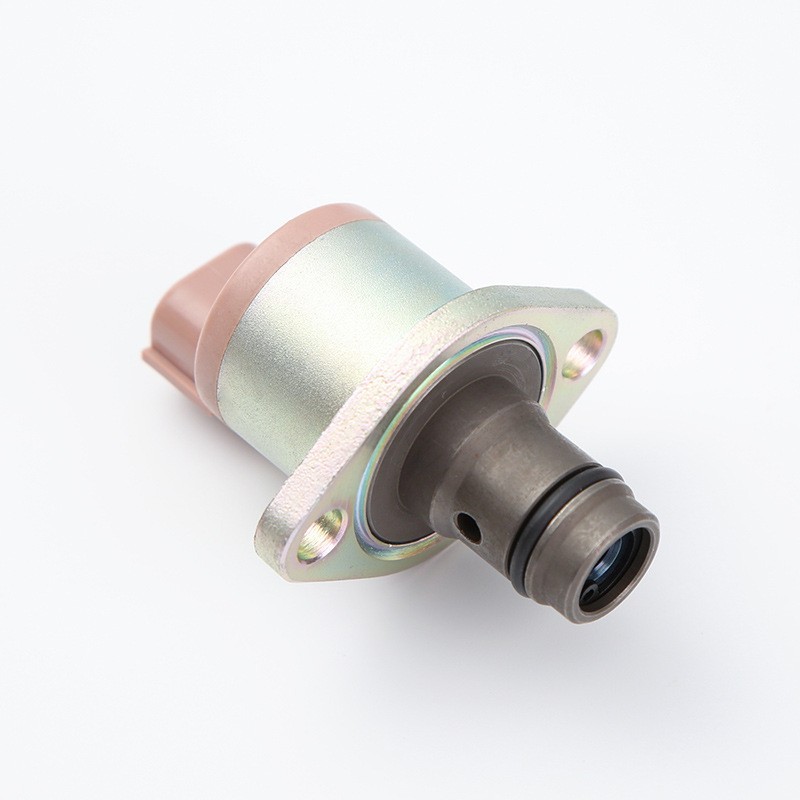

SCV Valve 294200-0360 1920QK For Nissan Navara Isuzu D-Max Mitsubishi Ford For Sale

Make: Nissan | Model: Navara D40 | Year: 2005-2015 | Engine: 2.5 dCi | Note: Normally Open, 12VMake: Nissan | Model: Pathfinder R51 | Year: 2005-2012 | Engine: 2.5 dCi | Note: Normally Open, 12VMake: Isuzu | Model: D-Max | Year: 2007-2014 | Engine: 3.0 CRD | Note: Normally Open, 12VMake: Mitsubishi | Model: Triton | Year: 2006-2014 | Engine: 2.5/3.2 CRD | Note: Normally Open, 12VMake: Mitsubishi | Model: Pajero | Year: 2006-2020 | Engine: 2.5/3.2 CRD | Note: Normally Open, 12VMake: Ford | Model: Transit | Year: 2006-2014 | Engine: 2.2/2.4 TDCi | Note: Normally Open, 12VMake: Mazda | Model: BT-50 | Year: 2006-2015 | Engine: 2.5/3.0 CDVi | Note: Normally Open, 12VMake: Fiat | Model: Ducato | Year: 2006-2018 | Engine: 2.2/2.3 JTD | Note: Normally Open, 12VMake: Citroen | Model: Jumper | Year: 2006-2018 | Engine: 2.2 HDi | Note: Normally Open, 12VMake: Peugeot | Model: Boxer | Year: 2006-2018 | Engine: 2.2 HDi | Note: Normally Open, 12VMake: Land Rover | Model: Defender | Year: 2007-2016 | Engine: 2.4 Td4 | Note: Normally Open, 12V

INAL SALE: No returns/refunds. Buyer assumes all responsibility for fitment. Please verify OEM part # and VIN before buying. We aren\'t liable for incorrect fitment or installation errors. Ensure this part matches your original If you have any questions, please feel free to contact our customer service team at any time.

SCV Valve 294200-0360 1920QK – For Nissan Navara Isuzu D-Max Mitsubishi Ford

Product Overview:

This Suction Control Valve (SCV) is a direct replacement for DENSO OE part number 294200-0360 (interchangeable with 1920QK, A6860-VM09A, 1460A137 T, 8-98145453-0, 6C1Q-9358-AB, LR009837). It is designed for the DENSO common rail fuel injection pump on a wide range of diesel vehicles from Nissan, Isuzu, Mitsubishi, Ford, Mazda, Fiat, Citroen, Peugeot, and Land Rover. The valve regulates fuel flow into the high-pressure pump to maintain precise rail pressure.

⚠️ Important: Normally Open Type

This SCV valve isNormally Open (N/O) 12V. It isNOT compatiblewith Toyota 1KD/2KD engines, which require a Normally Closed SCV. Please verify your pump model and SCV type before purchase.

Why Replace Your SCV Valve?

A faulty SCV valve is a common issue on DENSO common rail systems. Common failure symptoms include:

• Loss of poweror limp mode

• Rough idleor engine stalling

• Hard startingor no start

• Check Engine Lightwith P0089, P1093, or related codes

• Excessive fuel consumption

• Metallic debrisfound in the fuel filter (pump wear)

Key Specifications:

• Type: Suction Control Valve (SCV)

• Connector: 2-Pin

• Terminal Quantity: 2

• Voltage: 12V

• Operating Mode: Normally Open

• Overall Length: Approx. 100mm (3.94\")

• Material: Metal body with plastic connector

• Color: Silver / Beige

• Weight: Approx. 180g (0.40 lbs)

• Quantity: 1

• Includes: Gasket, 2 Bolts, O-Ring

Fitment (Compatible with):

• Nissan Navara / Frontier D40 2005-2015 (2.5 dCi)

• Nissan Pathfinder R51 2005-2012 (2.5 dCi)

• Isuzu D-Max 2007-2014 (3.0 CRD)

• Mitsubishi Triton / L200 2006-2014 (2.5/3.2 CRD)

• Mitsubishi Pajero / Shogun 2006-2020 (2.5/3.2 CRD)

• Ford Transit 2006-2014 (2.2/2.4 TDCi)

• Mazda BT-50 2006-2015 (2.5/3.0 CDVi)

• Fiat Ducato 2006-2018 (2.2/2.3 JTD)

• Citroen Jumper / Peugeot Boxer 2006-2018 (2.2 HDi)

• Land Rover Defender 2007-2016 (2.4 Td4)

OE Part Number:294200-0360 / 2942000360 / 1920QK

Interchange Part Numbers:A6860-VM09A, A6860-EC09A, 1460A137 T, 8-98145453-0, 6C1Q-9358-AB, 1514885, LR009837, 9665523380, 294009-0260, 294009-0160

Note:This is an aftermarket replacement part, not a genuine DENSO part.Normally Open Type, 12V.Please verify your OE number and SCV type before purchase. Professional installation is recommended.

Package Includes:

• 1 x SCV Valve

• 1 x Gasket

• 2 x Bolts

• 1 x O-Ring

Installation Guide:

1. Disconnect the negative battery terminal

2. Locate the SCV valve on the fuel injection pump (2-bolt flange)

3. Disconnect the 2-pin electrical connector

4. Remove the 2 mounting bolts and pull out the old SCV

5. Clean the mounting surface and install the new gasket

6. Install the new SCV valve and tighten the bolts

7. Reconnect the electrical connector, clear fault codes, and test drive
