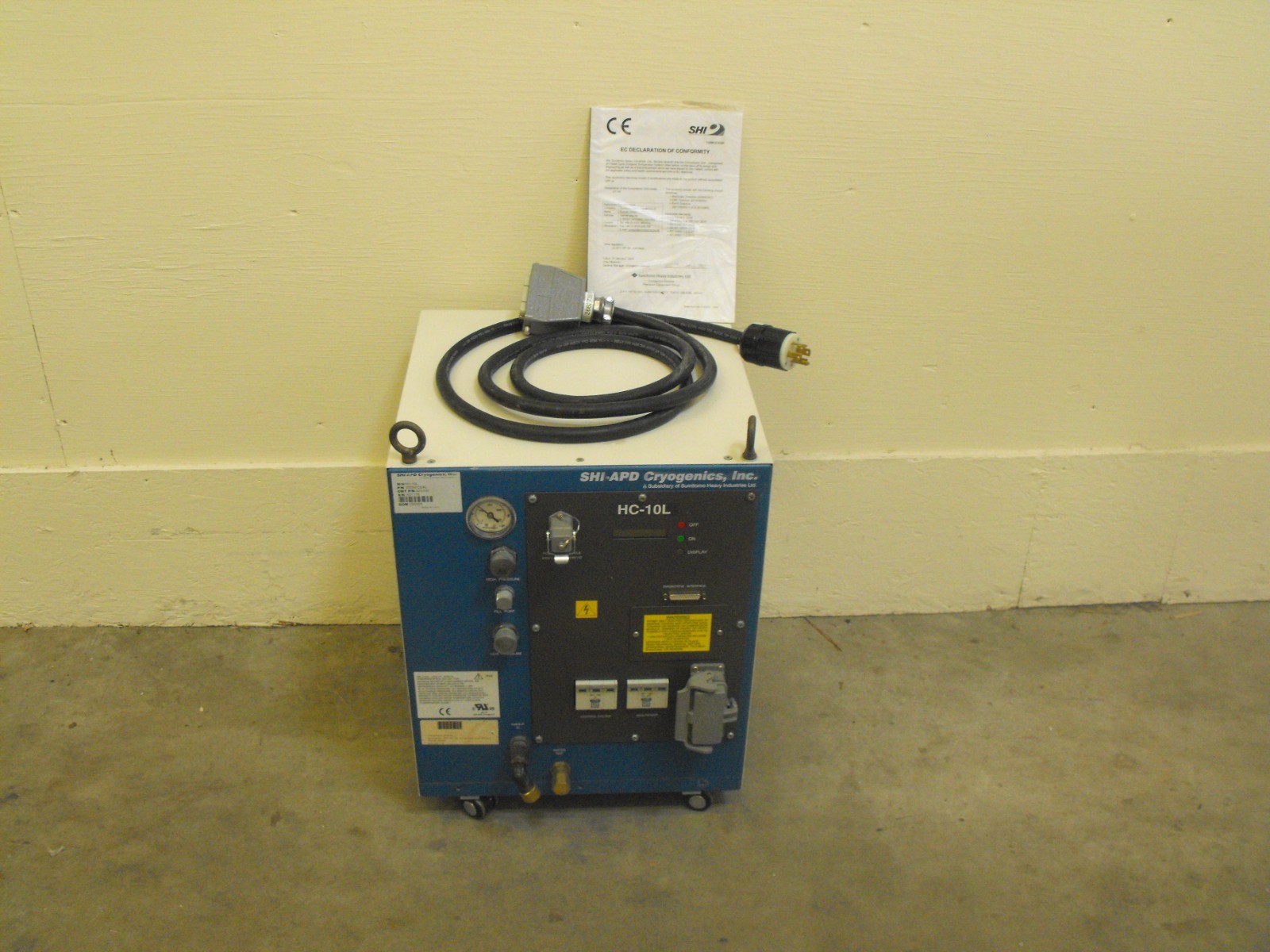

Up for sale is a SHI-APD (Sumitomo) Cryogenics HC-10L Helium Compressor. It's in excellent condition, as shown in the pics. It was acquired from a working medical facility and has been tested. It comes exactly as shown. This is a 208V 3-phase unit.
This unit ships via flat rate freight. Expedited shipping is available if needed. Local pickup from Fairfax, VA is available as well.
The SHI-APD (Sumitomo) HC-10L Helium Compressor is a specialized low-voltage unit designed to power Gifford-McMahon (GM) and pulse tube cryocoolers, frequently used with 10K MRI magnets. It features automated restart capabilities, a 30-ampere trip rating, and built-in safety interlocks to prevent system failure.
Key Features and Specifications:-Power Requirements: Designed as the low-voltage variant of the standard HC-10 compressor, requiring a 30-ampere circuit breaker for operation.-Safety & Diagnostic Interlocks: Includes a 25-pin D-subminiature connector for system diagnostics. The compressor automatically shuts down in the event of high water supply temperatures (> 35° C), low water flow rates, high discharge gas temperatures (> 93° C), and motor winding temperatures exceeding 160° C.-Gas & Water Connections: Features standard size 8 Aeroquip couplings for high-pressure supply and low-pressure return lines, and 1/2 inch MNPT connections for cooling water.
Maintenance & Components: Utilizes an integrated adsorber (such as the compatible F-70) that purifies the 99.995% pure helium gas, which requires routine replacement every 10,000 to 13,000 operational hours to prevent system contamination.
Pressure Specifications: Standard operation maintains a low helium pressure of approximately 2.4 bar (35 psig) and a pressure relief valve setting of 27.6 bar (400 psig).
