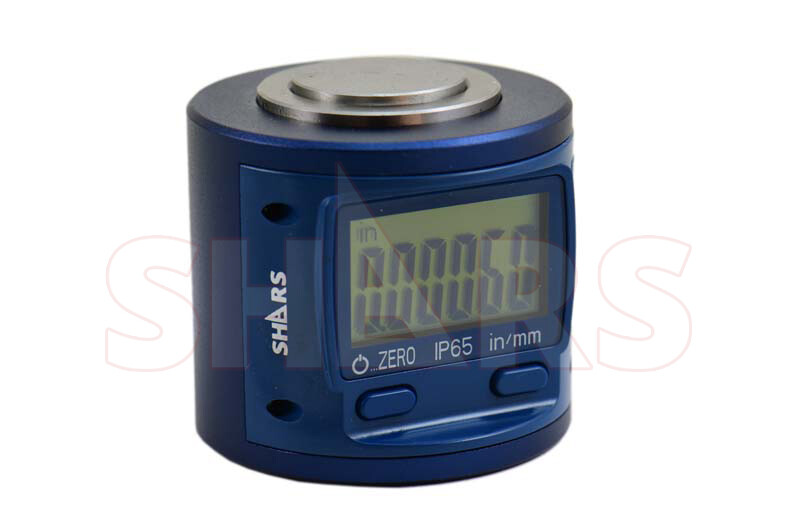

Shars 2\" Digital CNC Magnetic Z-Axis Tool Zero Pre Setter Offset IP65 .00005\" P] For Sale

Shars 2\" Digital Display CNC Magnetic Z-Axis Tool Setter IP65 0.00005\"/0.001mm NewProduct Description

SKU

303-3098

LAYOUT SETUP CATEGORY

Depth Setting Tool

BRAND

Shars Tool

PRODUCT HEIGHT

2

GRADUATION

0.001

ACCURACY

0.0004

WATERPROOF

IP65

RESOLUTION

0.00005\"/0.001mm

magnetic pull (lbs)

10

IP65 Coolant and Water Resistant

IP65 Electronic 2\" Z-Axis Tool Setter is designed to fast and accurately establish the \"0\" reference point for manual and CNC machine centers. This tool seter is durable and reliable, with an IP65 protection grade and an extended battery over 1 year using a 3V CR2032 lithium battery.

The 0.001mm/0.00005\" resolution LED display will light up when the \"0\" reference point is met with an accuracy of 0.002mm/0.00005\", ensuring your cutting tools are set with precision.

Product Features 2\" Height Offset

- Quickly establishes \"0\" reference pointfor manual and CNC machine centers with a response speed of 78\"/sec
- Positioning accuracy: 0.002mm/0.00005\"
- Repeatability 0.0003mm
- Travel Range: 0.078\"

Easy to Read

LCD display screen will turn on backlight when zero reference is displayed. Auto shut off after 5 min and powers on when contact surface is moved

Large Contact Surface

0.97\" diameter contact surface allows for easy alignment with different type of cutting tools. Also features spring loaded contact face to safeguard against damage from overrun. Contact surface is made from stainless steel and hardened to 45 HRc

Magnetic Bottom

Bottom surface is precision ground flat with 4 magnets installed

Easy Calibration

Zero point can be reset by press and holding the on/off button
