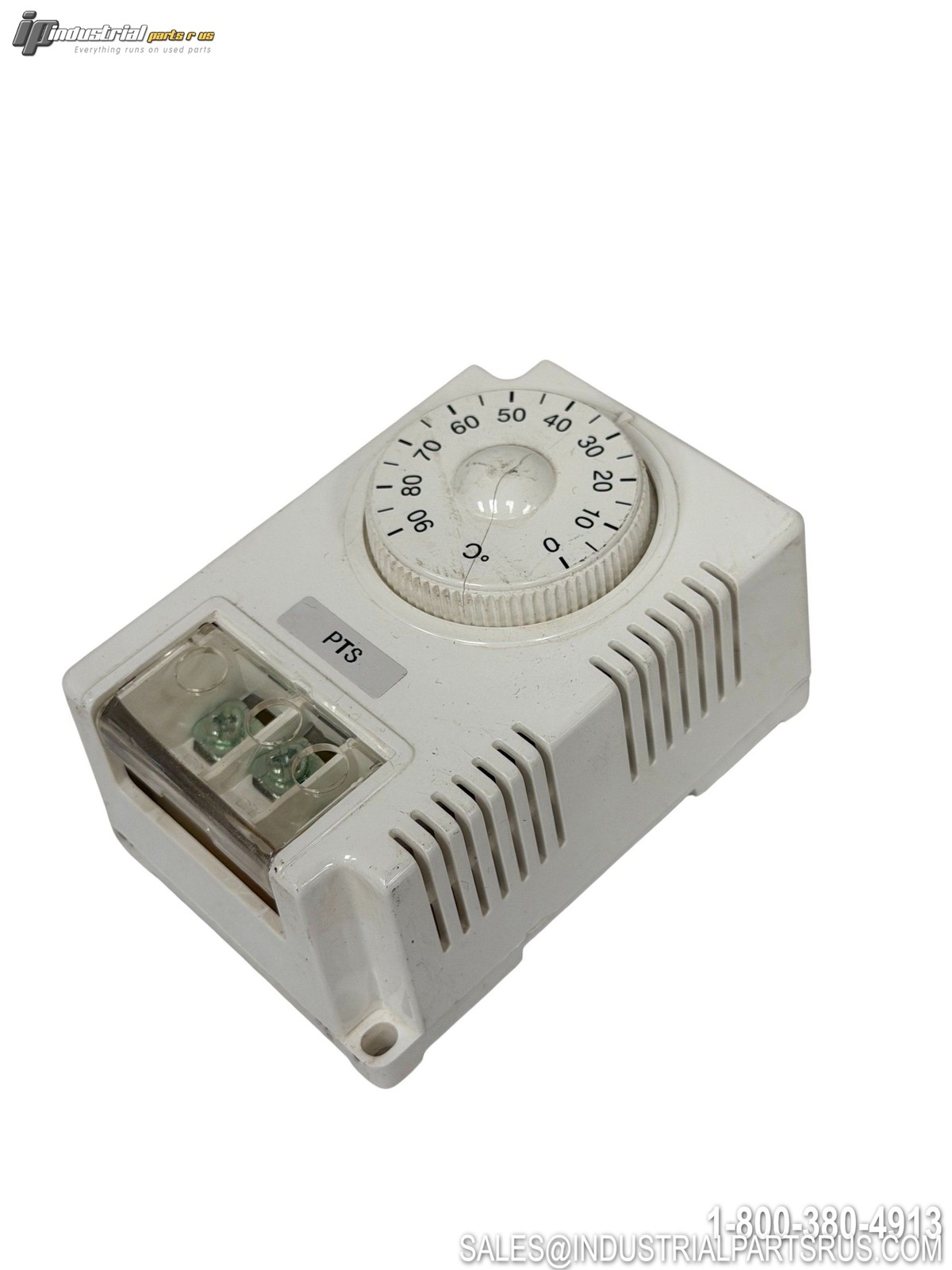

Contact UsShop by CategoryShinohara Electric PTSC-090S Thermostat 0-90°C 250VAC 20A DIN RailSKU: AI2226 Item Specifications
- In Stock: 1
- Brand: Shinohara Electric
- Condition: Used
- Notes: Previously used item in good condition. Tested and fully functional. May show normal signs of wear from use. We warranty all items for 30 days.
- Model: PTSC-090S
- Type: Temperature Controller
- Shelf: F-10 Tub 1
- Part Number: PTSC-090S
-
- MPN: PTSC-090S
- Media 1 Description: Shinohara Electric PTSC-090S - Photo 1
- Media 2 Description: Shinohara Electric PTSC-090S Image 2
- Media 3 Description: Shinohara Electric PTSC-090S View 3
- Media 4 Description: Shinohara Electric PTSC-090S - Photo 4
- Mounting Type: DIN Rail (center-mount)
Product Description
The Shinohara Electric PTSC-090S is a bimetal-type adjustable thermostat designed for temperature control (on/off switching) of space heaters, ventilation fans, and similar enclosure climate devices. It features DIN rail mounting capability at the center of the body and is rated for AC use only. This model supersedes the discontinued PTS-090C and is RoHS compliant.
Technical ElectricModel / Part NumberPTSC-090SProduct TypeThermostat (Temperature Controller)Set Temperature Range0 – 90°CContact Capacity (Resistive Load)20A / AC 250VContact Capacity (Inductive Load)6A / AC 250VContact ConfigurationSPDT (Single Pole Double Throw)Power Supply / Current TypeAC OnlyReset / Return Temperature DifferentialApprox. 4°CHeat Resistance (Body)105°CMinimum Ambient Operating Temperature-5°CInsulation Resistance100 MΩ or more (DC 500V Megger)Dielectric Withstand Voltage1500V between terminals, 1 minuteMechanical Durability10,000 switching operationsTerminal Screw SizeM3.5Dimensions (W × D × H)60 × 48 × 88 mmWeight (Mass)140 gMounting TypeDIN Rail (center-mount)RoHS ComplianceYesReplaces / SupersedesPTS-090C (discontinued)Typical ApplicationPanel space heaters, ventilation fans, enclosure climate control
We warranty all items for 30 days from date of purchase.
