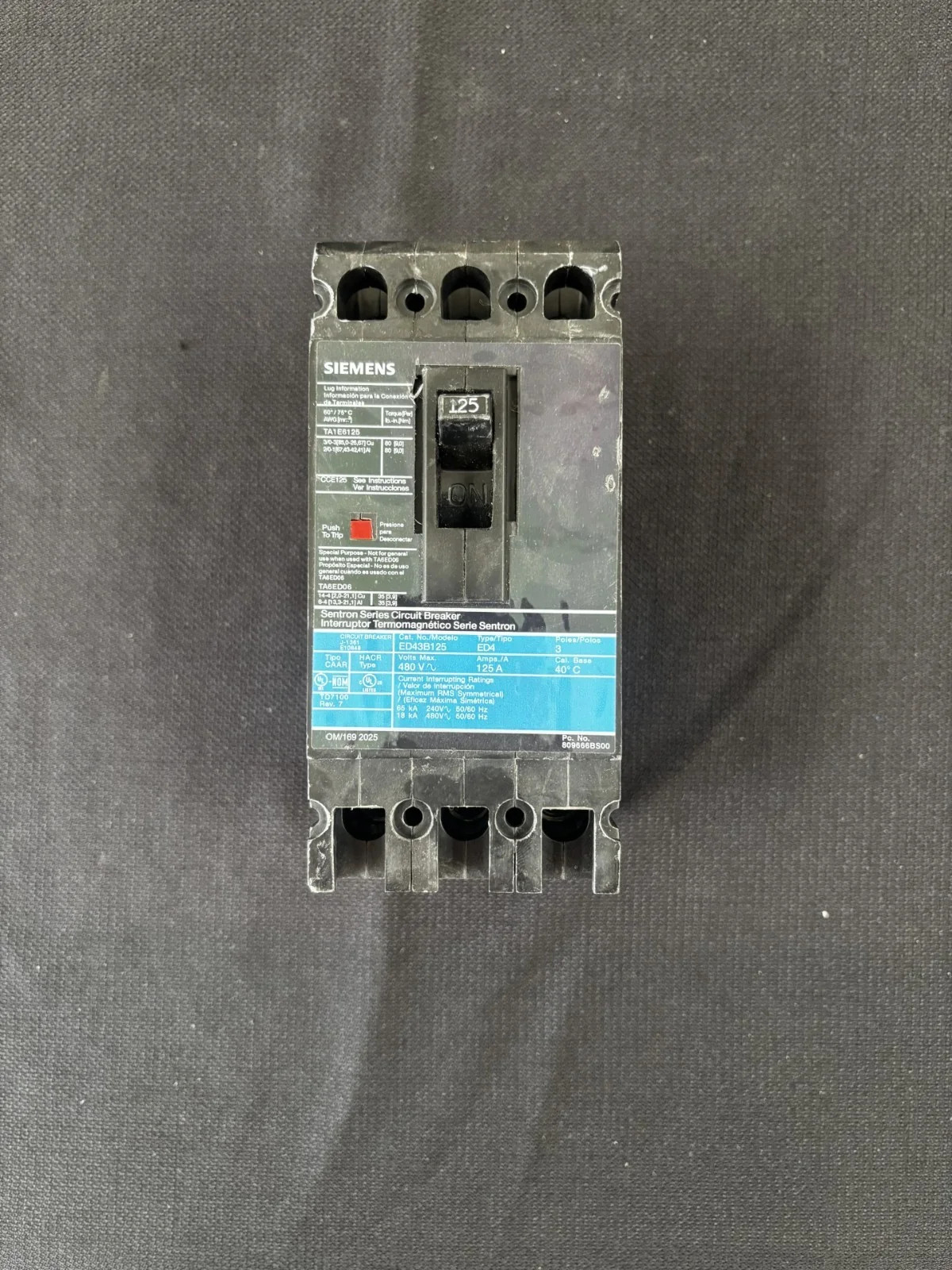

Used – Good condition. Breaker shows normal cosmetic wear from previous use including scuffs, scratches, and minor discoloration. No cracks or broken housing observed. Handle operates smoothly. Please review all photos for actual condition
The breaker features HACR rating and standard thermal-magnetic protection. It has been visually inspected and is being sold as pictured.
Specifications
- Manufacturer: Siemens
- Series: Sentron ED4
- Model: ED43B125
- Type: Molded Case Circuit Breaker
- Trip Type: Thermal-Magnetic
- Current Rating: 125 Amps
- Number of Poles: 3
- Maximum Voltage: 480 VAC
- Frequency: 50/60 Hz
- Interrupting Rating:
- 65 kA @ 240 VAC
- 18 kA @ 480 VAC
- HACR Rated: Yes
- Calibration Temperature: 40°C
- Lug Kit: TA1E6125
- Mounting Style: Panel Mount
- Country/Region of Manufacture: Mexico
Included
- (1) Siemens ED43B125 125A 3-Pole Circuit Breaker
No additional accessories or hardware included.
Brand: Siemens
Operation Method: On/Off
Type: Main Breaker
Current Type: AC
Maximum Amperage: 125 A
Voltage: 480 VAC
Model: ED43B125
Current Rating: 125 A
Number of Phases: 3
MPN: ED43B125
Application: Branch Circuit Protection, Commercial, Industrial
Country of Origin: United States
