Parameter:
Model: 1 to 2 Rated current: 20A(4mm²)30A(6mm²)
Rated voltage: 1000V DC
Contact resistance: <2mΩ
Insulation resistance ： >500mΩ
Suitable single core cable section: 2.5mm2, 4mm2, 6mm2
Cable outer diameter: Φ5mm ～Φ 7mm
Connector insulation material: PPO
Degree of protection: IP67
Safety: II
Operating temperature range: -40 ~ +105 ℃
Model : 1 to 3 Rated voltage: TUV1000 V DC /UL 600V DC
Current : 20A~30A
Wire gauge：2.5mm²~6mm² / 14AWG~10AWG
Terminal specification ：φ4.0mm
High voltage ： TUV6000 V AC(1 min) /UL 2200V DC(1 min)
Safety: II
Connector conductor material: Copper,Silver Plated
Contact resistance: ≤5mΩ
Material: PPO
Degree of protection: IP68(IEC 60529)
Temperature rating: -40 degree ~ +85 degree
Flame Retardant Grade: UL94V-O
Model : 1 to 4 It can be used in harsh environment
Created seal, design of dust proof
Strong pulling force capability
Lower contact resistance
Load capability with big current and high voltage
Double seal rings for better waterproof effect
With excellent aging resistance and UV endurance
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

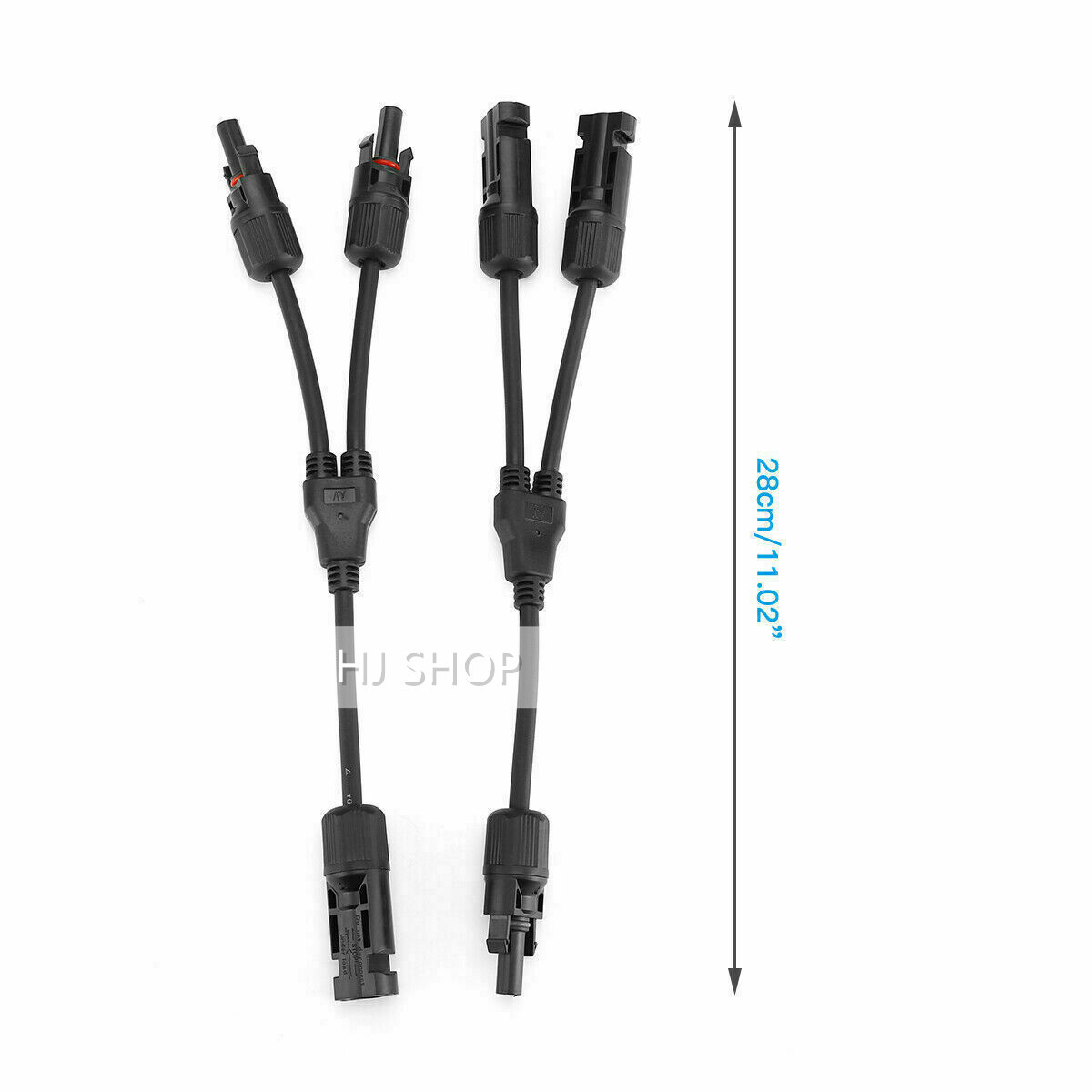

This Y Style MC4 compatible Solar Cable Connector Set (Part # RX- MC 4Y-P) is a perfect solution to parallel connect multiple panels together.
Simpleand fast helpthroughoutthe process and simpleplug-in, without any additional equipment.
High temperature resistant, the materials do not melt or flowGood cold flexibility，Long life cycle.
Electron-beam cross-linked compounds UV and ozone resistantHydrolysis resistant.
