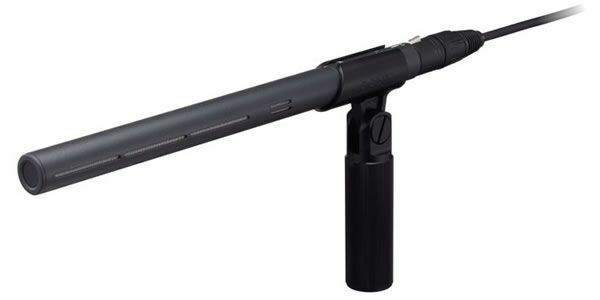

ECM-678 is an electret condenser microphone with sharp directivity that uses a microphone capsule with high sensitivity and low noise!■ Condenser microphone■ With microphone holder / wind screen / connection cord / carrying case
■ Type: Back electret condenser type■ Power supply: External power supply: DC40-52V■ Connector: XLR-3-12C equivalent (convex)■ Cable: φ5.0mm, 2-core shield, about 500mm in length■ External dimensions: Approximately φ20 × 250mm (maximum diameter × full length)■ Mass: Approximately 200g
<Performance>■ Frequency characteristics: 40Hz-20kHz■ Directional characteristics: Sharp directivity■ Output impedance: 200Ω ± 20%, balanced type■ Front sensitivity: -28 ± 3dB (0dB = 1V / Pa, 1kHz)■ Signal to noise ratio: More than 78dB (1kHz, 1Pa)■ Noise:・ Inherent noise: 16dB SPL or less・ Wind noise * 1: 60dB SPL or less (with windscreen installed)・ Inductive noise of external magnetic field: 0dB SPL / 1 × 10 to the -7th power (1mG) or less■ Maximum input sound pressure level: 127dB SPL * 2■ Dynamic range: 111dB SPL or more■ Allowable operating temperature: 0- + 60 ℃■ Allowable storage temperature: -20- + 60 ℃
<Others>■ Accessories: Windscreen (1), microphone holder (1), microphone spacer (1), connection cord (1), carrying case (1), instruction manual (1), warranty card (1)
* 1 A value obtained by converting the average value of noise output generated by a microphone into an equivalent input sound pressure when an airflow of 2 m / sec is applied to each direction of the microphone. (0dB = 2 × 10 −5 Pa)* 2 Equivalent input sound pressure equivalent value of input level that causes 1% waveform distortion at 1kHz when the microphone output signal is 0dB (2 × 10 −5 Pa)
