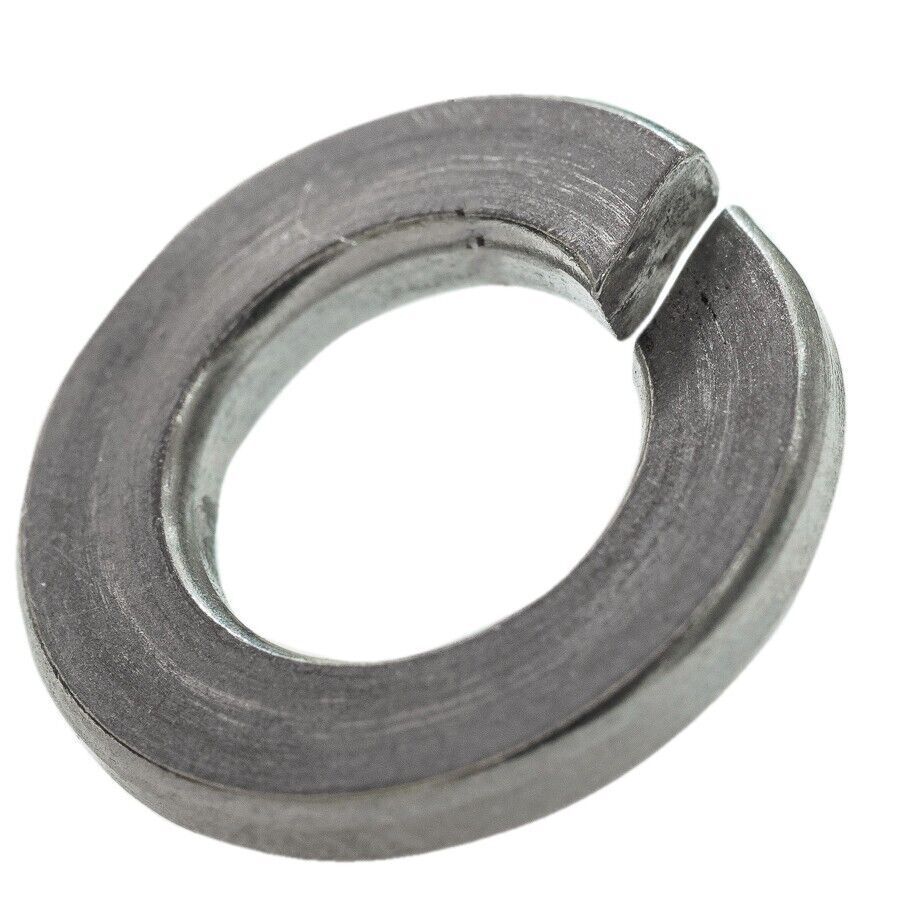

Stainless Steel Split Lock Washers 18-8 (304), Medium
Helical Spring Type • 1/4" to 3/4" • Bulk Quantities
Description
Fastenio helical spring (split) lock washers in 18-8 (304) stainless steel, Medium duty series. The split-coil design wedges its sharp cut edges into the nut face and the work surface, resisting back-off from vibration and load reversal.
Available in seven hole sizes from 1/4" through 3/4", in pack quantities from 5 (sample) up to 5,000 (production bulk). Manufactured to ASME B18.21.1 Medium series dimensions.
When to Use a Split Lock Washer
- Vibration-prone joints — machinery, motors, anything with rotating or reciprocating parts where standard nut friction alone may loosen.
- Stacked with a flat washer — the flat washer spreads the clamp load on the work surface; the split lock goes between flat washer and nut to bite both surfaces.
- Lower cost than a Nylon Insert Lock Nut — effective for most vibration scenarios at a fraction of the cost.
- Stainless on stainless — use 18-8 washers with 18-8 nuts and bolts to avoid galvanic mismatch in wet environments.
Material
Grade: 18-8 Stainless Steel (Type 304 / A2-70 equivalent) — austenitic alloy with excellent corrosion resistance in atmospheric, freshwater, and most chemical environments.
Finish: Plain (no plating). 18-8's self-renewing passive oxide layer provides natural corrosion protection.
Specification: ASME B18.21.1 Helical Spring Lock Washer, Medium series.
How to Order
Select your variation by Hole Size and Unit Quantity:
- Hole Size matches the bolt or screw diameter the washer is intended for (e.g., 1/4" lock washer for a 1/4" bolt).
- Medium Series — this is the standard duty class for general industrial use. Regular and Heavy series exist for lighter and heavier-duty applications respectively; Medium is by far the most common.
- Unit Quantity — 5 and 10 are sample/repair packs. 25–100 cover small projects. 250–5,000 are production-volume bulk.
Built for repeat buyers. Clean listings, accurate item specifics, fast US shipping, and responsive support before and after the sale.
Need it faster? UPS 2nd Day Air and Next Day Air are available by request — message us with your ZIP code before purchase for a quote.
Need a larger quantity? Volume pricing is available beyond the listed pack sizes — message us with your target qty and we'll quote.
Available Sizes & Dimensions
All measurements in inches. Nominal Size matches the bolt diameter the washer is designed for. ID is the actual hole; OD is the outer diameter; Thickness is the spring-coil cross-section.
Nominal SizeInner Diameter (ID)Outer Diameter (OD)Thickness 1/4"0.260"0.487"0.062" 5/16"0.320"0.583"0.078" 3/8"0.380"0.682"0.094" 7/16"0.443"0.776"0.109" 1/2"0.505"0.870"0.125" 5/8"0.631"1.094"0.156" 3/4"0.756"1.312"0.172"
Applications
- Marine — deck hardware, fittings, anywhere salt-water resistance plus vibration tolerance is needed.
- HVAC — ductwork, compressor mounts, equipment frames, condensation-exposed joints.
- Industrial — machinery assembly, motor mounts, conveyor systems, equipment subject to vibration.
- Automotive — chassis, body brackets, exhaust hangers, mounting hardware.
- Construction — structural connections, brackets, signage, anchoring.
- Signs & Outdoor — signage, lighting fixtures, fencing, weather-exposed assemblies.
Notes
- Stack order: typical assembly is bolt → work surface → flat washer (optional) → split lock washer → nut. The lock washer must sit against the nut face for its sharp edges to bite.
- Galvanic compatibility: 18-8 washers pair best with 18-8 stainless bolts and nuts. Pairing stainless lock washers with carbon-steel bolts in wet environments will accelerate corrosion of the carbon-steel bolt.
- One-time use: split lock washers are not designed for repeated assembly/disassembly — the spring fatigues. Replace when reassembling critical joints.
- Vibration alternatives: for high-vibration applications, consider Nylon Insert Hex Lock Nuts (cross-linked below) which provide more robust locking.
