Sumitomo QH201e-VS Handheld Fusion Splicer For Sale

template

align="left">

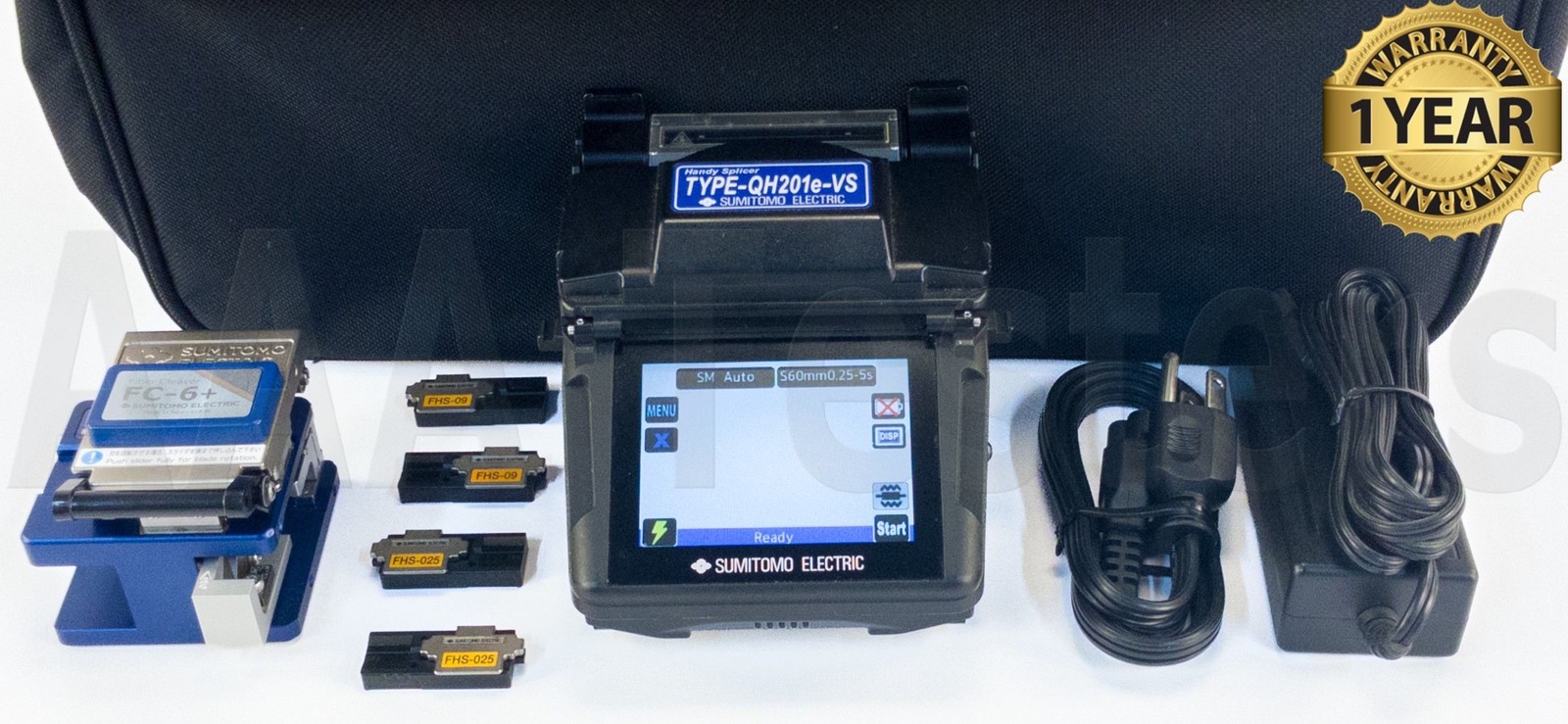

• Sumitomo QH201e-VS Handheld Fusion Splicer (BC# 54862 -L/T*)
• Sumitomo FC-6R+ High Precision Fiber Cleaver
• FHS-09 Fiber Holder Set
• FHS-025 Fiber Holder Set

• AC Adapter/Charger
• Power Cord

• Soft Carrying Case w/ Strap


BE SURE TO CHECK OUR store FOR OTHER ITEMS!

This Item Has A Current Calibration!

Sumitomo QH201e-VS Handheld Fusion Splicer

The Sumitomo Type-QH201e-VS is a compact, handheld fixed V-groove fusion splicer widely used for FTTH (Fiber to the Home) and splice-on connectors.

Includes High Precision Fiber Cleaver, Carrying Case & Accessories As Listed Above!





Working Condition: Yes
Warranty: 1 YEAR WARRANTY QH201e-VS Handheld Fusion Splicer

The Sumitomo Type-QH201e-VS is a compact, handheld fixed V-groove fusion splicer widely used for FTTH (Fiber to the Home) and splice-on connectors. When compared to other splicers—such as core-alignment models or entry-level cladded options—it shines in speed, portability, and ease of use in the field.

This amazing handheld splicer boasts the industry’s smallest footprint and fastest 11 second splice time among handheld splicers. It is the first and ONLY to incorporate a fully navigational touch screen interface for maximum user friendliness built-in training videos remote software updates and USB 24-7 remote maintenance capability. Other features include li-ion battery technology and an easy to use fiber holder system  with the legendary reliability common to all Sumitomo Electric splicers. The Quantum Type-QH201e-VS is by far the most advanced FTTX/Handheld fusion splicer in the industry, yet it’s also rugged with superior dust, shock and water-proof resistance, making it the ideal choice for even the harshest align="center" style="text-align: left;">Alignment Method:
Uses a Fixed V-Groove. While cladding-aligned or core-aligned models offer higher precision for long-haul networks, fixed V-groove is highly reliable and significantly more cost-effective for standard last-mile drop cables.

Speed:
Delivers a rapid 12-second splice time and 30-second heater cycle, making it one of the fastest handheld units on the market.

Portability:
Boasts an incredibly small, lightweight footprint designed to survive harsh environments with superior shock, dust, and water resistance.

Interface:
Features a modern touchscreen designed for remote maintenance, easy software updates, and an intuitive fiber-holder system.



Specifications:

Optical fiber requirements
Profile typesSingle / SMF (G.652), MMF (G.651), DSF (G.653), NZDSF(G.655), BIF(G.657)Fiber diameterSMF : 0.05dB, MMF 0.03dB, DSF : 0.08dB, NZDSF : 0.08dBCleave length5 to 10mmStandard Performance
Splice loss (typical)SMF : 0.05dB, MMF 0.03dB, DSF : 0.08dB, NZDSF : 0.08dBSplice time (typical)11secHeating time (typical)30secSplice & Heat cycles per battery full chargeApprox. 100Fiber view & Magnification2 CMOS cameras observation, 72X (zoom 216X)Proof testApprox. 320 (BU-16)Attenuation Splicing1.96 ~2.09nSplice programsMax. 200Heating programsMax. 100Functions
Splice image capture / splice data storage64 images / 10,000 splice dataAutomatic arc calibrationAutomatically compensates for environmental condition changesMonitor3.5 inch color monitor with touchscreenPower supply
AC inputAC 100 ~ 240V, 50/60HzDC inputDC10 ~15V 4.5ABattery packLi-ion 11.1V, 3,060mAh (BU-12L)Electrode life6000 arc dischargesSoftware updatesInternet
