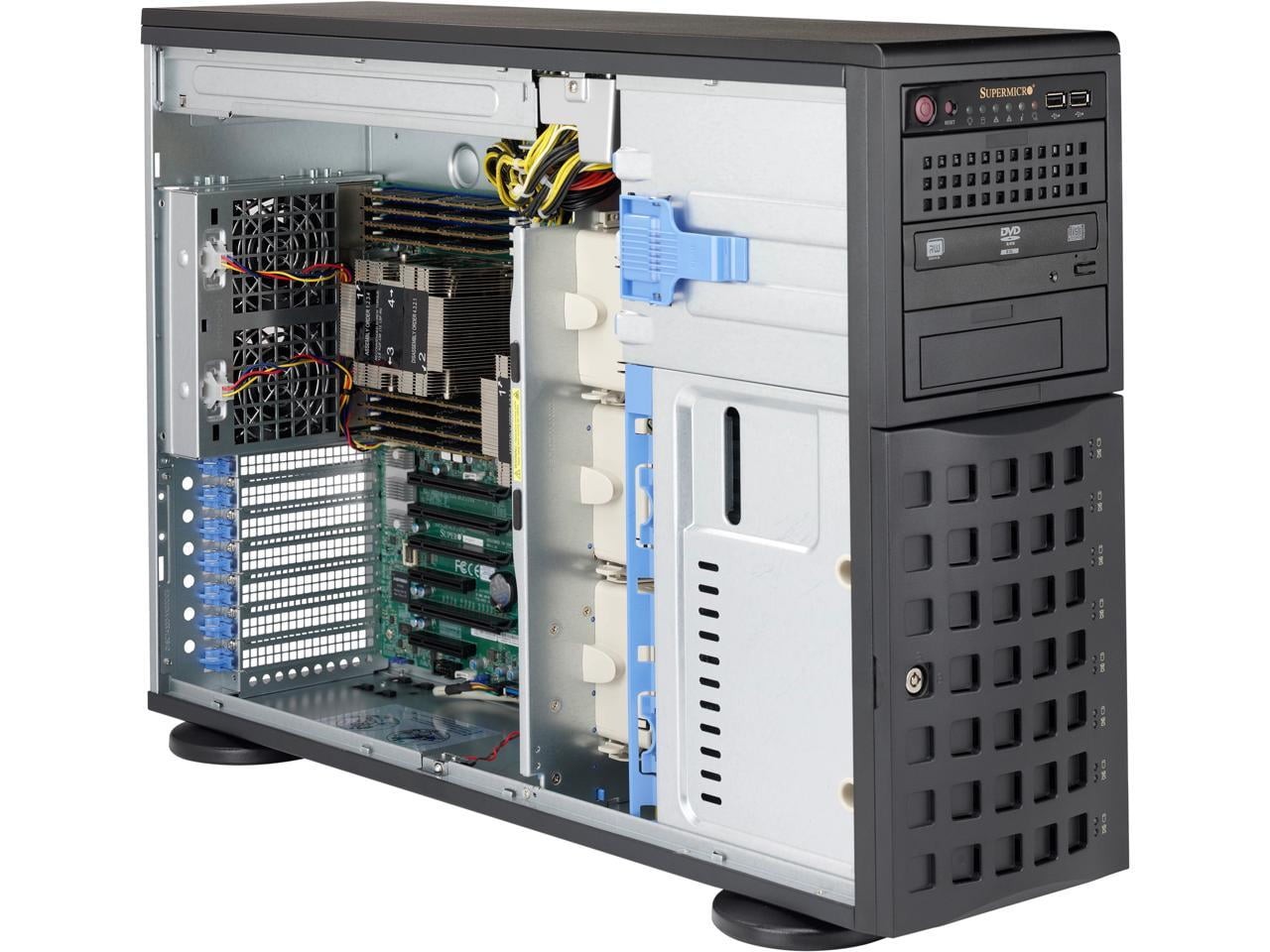

Supermicro SuperChassis 745BAC-R1K23B (cse-745bac-r1k23b) Supermicro SuperChassis 745BAC-R1K23B (cse-745bac-r1k23b)
This item is brand-new, factory sealed.
Key Features
8x 3.5\"/ 2.5\" SAS3/SATA3 Backplane for Hot-Swappable Drives
Front HDD Door Lock & Side Panel Intrusion Switch
Front I/O Ports: 2x USB 3.0
3x Middle 8cm (9400 rpm) PWM Fans & 2x 8cm (9400 rpm) PWM Fans
4U / Full Tower Chassis Supports max. Motherboard, Sizes - E-ATX 13.68\" x 13\"/ATX/Micro ATX
1200W (1 + 1) Redundant Titanium Level Certified High-Efficiency Power Supply
3x 5.25\" External HDD Drive Bays & 8x 3.5\"/2.5\" Hot-Swappable HDD Drives Form Factor
4U tower chassis - supports maximum motherboard sizes up to E-ATX 13.68\" x 13\" Processor Support
Dual, single Intel / AMD processors Available Color
Black Expansion Slots
7 full-height and full-length expansion slot(s) Drive Bays
8 x 3.5\"/2.5\" hot-swap SAS drive bay with SES3 Backplane
8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis Peripheral Drives
3 x standard 5.25\" drive bay Front Panel
Buttons
Power On/Off button
System Reset Button LEDs
2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED Ports
2x USB 3.0 Port(s) Systems Cooling
Fans
2 x 80mm PWM Rear Chassis Fans
9.4k RPM
3 x 80mm high-performance fan(s)
9.4k RPM System Monitoring
Chassis intrusion switch Operating Environment (System)
Operating Temperature Range
5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing) Power Supply
1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac, and 240Vdc, output: +12V/+5Vsb, PMBUS 1.2, (L)336x(W)76x(H)40 mm, EMI Class B, Power Efficiency
96% Total Output Power and Input
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
1200W with Input 200 - 240Vdc AC Input Frequency
50-60Hz Output Type
Backplanes (connector) +12V
Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac) +5Vsb
Max: 4A / Min: 0A SpecificationPower DescriptionPower Supply InstalledYesNumber of Power Supplies Installed2Power Supply Wattage1230 WPhysical CharacteristicsForm FactorTowerWeight (Approximate)59 lbCooler TypeFan CoolerProduct ColorBlackHeight17.8"Color FamilyBlackCompatible Rack Unit4UWidth7"Depth25.5"I/O ExpansionsTotal Number of Expansion Slots7Interfaces/PortsFront USBYesTotal Number of USB Ports2BaysNumber of External 5.25\" Bays3Number of Total Expansion Bays11Number of Internal 2.5\"/3.5\" Bays8General InformationBrand NameSupermicroProduct TypeServer CaseProduct NameSuperChassis 745BAC-R1K23BManufacturerSupermicro Computer, IncManufacturer Part NumberCSE-745BAC-R1K23BProduct ModelCSE-745BAC-R1K23BProduct LineSuperChassisTitleProduct TitleSupermicro SuperChassis 745BAC-R1K23B (CSE745BACR1K23B)Technical InformationMotherboard Supported
Installed Fan Size3.15"Number of Fans Supported5Number of Fans Installed5 Shipping
