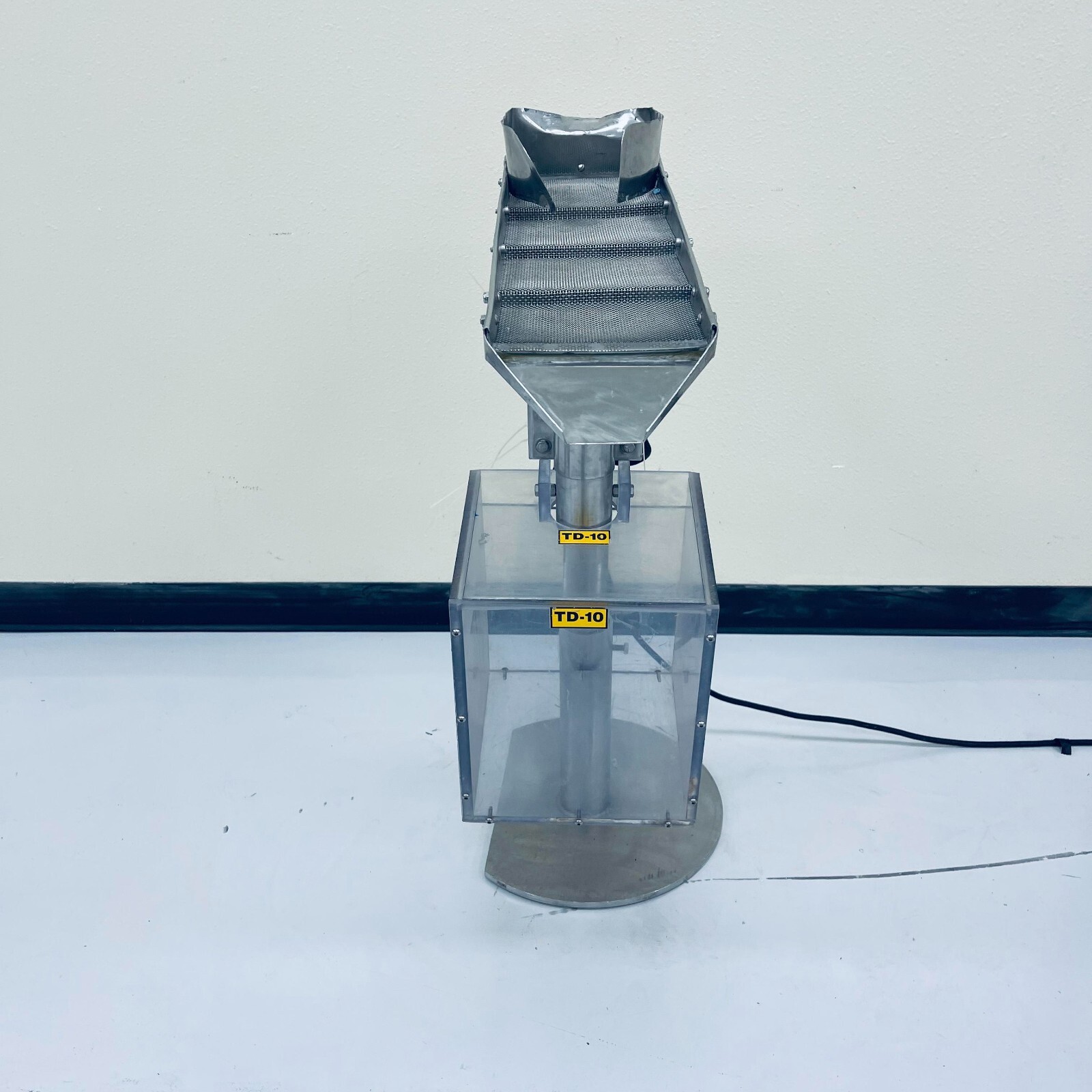

FMC F-TO1 ASyntron Light Industry Magnetic Feeder & Vibrator115 Volts 60 Hz 0.8 Amps, Comes withVibra Drive Unit & FMCElectricController and Trough, Comes with Heavy-Duty Height-Adjustable Stand and Box Container Mounted Securely
Condition:Used in Clean, Excellent working condition.
Syntechtron Product #: Model FT01A From 0 up to 2.0 tph
Nriparts Product ID #: S-286494 for Fmc FT01-A Syntron Magnetic Feeder 115v-ac 0.9a Amp D286494
Pcmsurplusworld SKU #: SPEC-1170-U for Syntron F-T01 Vibrating Feeder W/ 4 X 18 Inch Flat Pan W/ SCR-1B Control
Description( for Reference )
Syntron F-Series Feeders are designed for robust feeding, high head loads, stability and tuneability. These little feeders deliver big performance.
- Syntron Vibrating Feeders for Light Industry
- Ideal for metering bulk material flow in feeding, mixing and packaging operations.
The Model F-T01 Syntron feeder with standard 3 x 18-inch flat pan trough has a maximum capacity of two tons per hour. Wider troughs handle larger capacities.
Syntron Vibra Drive Unit
The Vibra Drive Unit provides directional vibratory conveying movement to a track, trough or any responsive surface. This is designed for use with packaging machines or special process equipment requiring a metered flow of bulk materials or parts.
The Vibra drive unit is small, compact, electromagnetic drives encased in dust-tight housings. The mounting bracket has pre-drilled holes for easy attachment to the mass to be vibrated. Drive type and number of drives is determined by the width, length and the weight of the mass to be vibrated.
Below-deck, base mounting is standard for all units. Control is available to operate a single-drive unit or multiple-drive configurations.
- The Model F-T01Vibra Drive Unit operates at 115 volt, single-phase, 60 cycle power.
- The Model F-T01 will handle upto a 7 pound mass with up to.060 stroke.
SyntronVibra Drives are designed for easy adjustment, including external tuning on most models.
Syntron vibra drive units are isolated from the surrounding building and supports by rubber mountings for most models.
Electric Controller
The Syntron Vibrating Feeders is furnished with a standard control to vary the flow of material through the feeder by adjusting the amplitude of the feeder pan. Standard control unit includes an operating switch, fuse and adjustable control to vary the amplitude.
- The FMCSCR-1BControl is available for 115 volts, 50 or 60 cycle power.
Standard Troughs
All SyntronLight IndustryElectromagnetic Vibrating Feeders arefurnished with mild steel or stainless steel troughs. Mild steel troughs arepainted or powder coated inside andoutside with a high- qualitypolyurethane.
To meet food and pharmaceuticalrequirements, troughs are available ina variety of stainless steel finishes. Aglass-beaded finish on stainless steeltroughs is available for non-foodapplications.
Special coating can be applied totrough interiors. These include steel and glasstroughliners are also available to provideflat conveying surfaces.Inaddition,covers and/or downspouts areavailable.
The rule of thumb for trough selectionsuggests that the maximum dimensionof the largest particle to be handledshould not exceed one-third to one-halfthe trough width.
Modificationsor additions to feedertroughs should not be madewithoutfirst consulting SyntronMaterialHandling.
Specifications ( for Reference )
Serial #: GG-64801980
Model
F-T01
Feed Rate
2 tons per hour
Current Input
115 V, 60 cycle @ 0.9 amps
Approximate Net Weight (Feeder)
33 lb
Approximate Shipping Weight
Feeder and Control: 50 lb
Drive Unit -
Dimensions (inches, mm) W X L
5 X 9 -1/8” ( 127 mm X 231.8 mm )
Models F-T01 have two feet on the rear and two on front.
FMC Control ( for Reference )
Model: SCR-1B
115 V, 50/60 Hz, 5.0 Amps
Trough – Dimensions ( W X L )
3 x 18-inch ( Approximately )
