Product Details

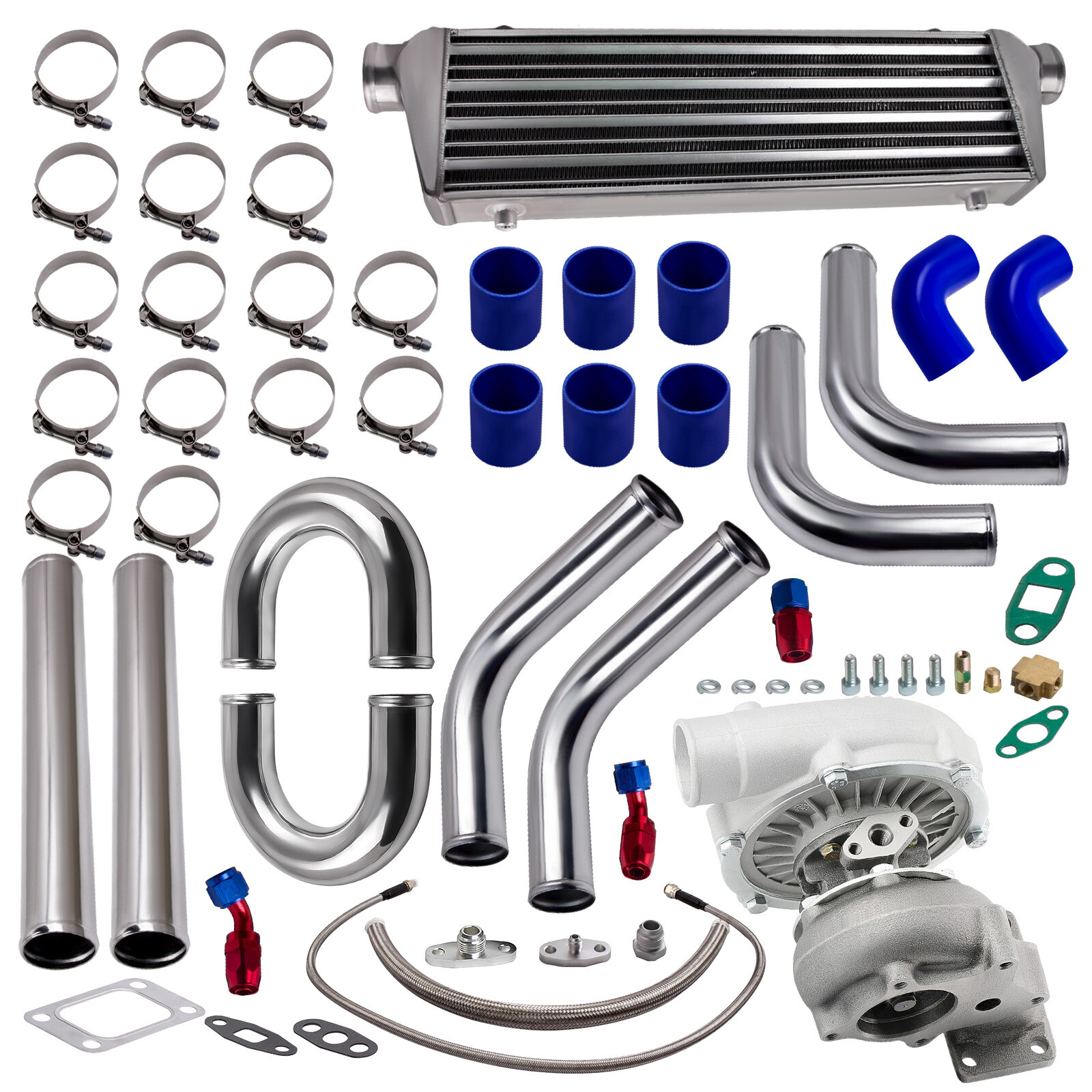

T04E T3 A/R 0.63 400HP UNIVERSAL TURBO W/ Oil Line+Intercooler +Piping Pipe Kits

Item Description

All modifications must be installed by licensed mechanics and in compliance with your local modification confirm that your car's displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough space to install this turbo.

Fit for:

for 1.5L to 2.5L any 4/6 cylinder />Turbine Intake Flange: T3 T4 4 bolt Flange Patterns
Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet: 44.5mm/81mm
Compressor:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet: 45mm(inside diameter), 53mm(outer diameter)
Compressor inlet: 468 mm(inside diameter), 72mm(outer diameter)

Oil Inlet: M12*1.25
Oil Outlet:2*M8*1.25

Cooling Type: Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Thrust bearing: 270 degrees
Horse Power: Up to 400 hp
Wastegate: Without Wastegate
Actuator Type: W/O Actuator
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size: 27x 25x 24 cm
Package Weight: 7250g

Oil Line information：

*OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm

*OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

*Fitment：T3, T3/T4, T4, T04, GT32, GT40, GT42, GT4088R, GT4049R, GT42R/RS, GT4294R, GT4202R, T61, T66, T70（fit for most turbos）

Intercooler Information：

*Inlet / outlet size : 2.5\"

*Core size : 21''x 7''x 2.25''/550x175x64mm

*Full size:27.00\" (L) X 7.00\" (H) X 2.50\"(W)

*Compress Air Flow Rate
