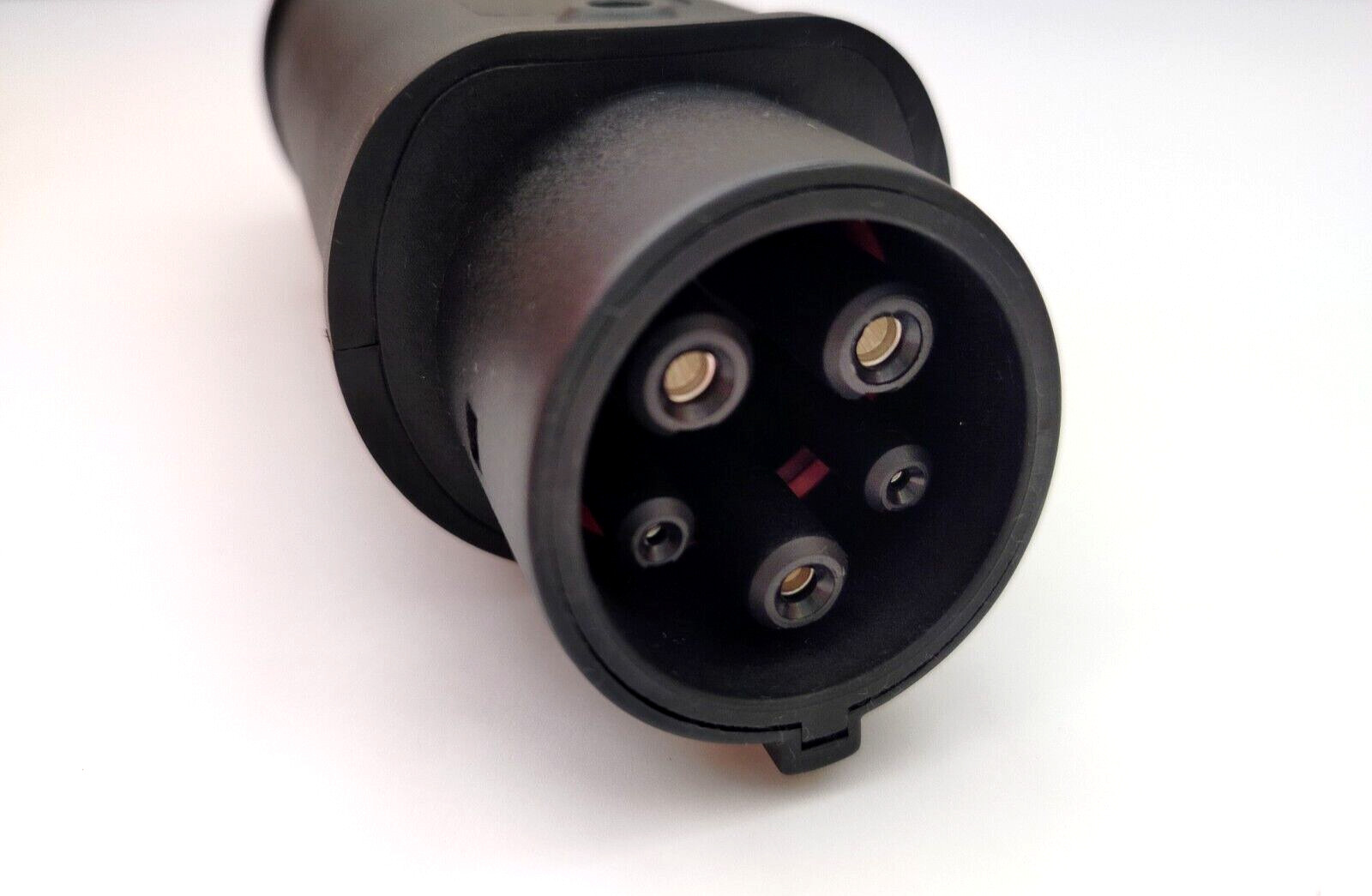

EV Charger Connector Type 1 to Type 2 Adapter Electric Vehicle charging adapter
PRODUCT DESCRIPTION
Type 2 to Type 1 European standard to American standard new energy electric vehicle charging adapter
Features:
- Conforms to SAE J1772 standard.
- Beautiful appearance, with protective cover, support front installation.
-The pin head adopts safety insulation design to prevent accidental direct contact with hands.
- Superior protection performance, protection level reaches IP54.
Specification:
Name: Electric car charging adapter
Housing material: thermoplastic
Rated working current: 16A or 32A
Working voltage: 110V~250V
Insulation resistance: >1000MΩ (DC500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5mΩ Max
Flame retardant rating: UL94V-0
Mechanical life: no-load plugging and unplugging>10000 times
Insertion and extraction force when coupling: >45N＜80N
Pin: Copper alloy, silver plated on the surface + thermoplastic on the top
Working environment temperature: -30℃～+50℃
Packing included:
1 * Electric car charging adapter
Note:
1. Please allow 1-3cm (0.4-1.18\") difference due to manual measurement and slight color variation for different display setting.
2. Due to the light and screen difference, the item\'s color may be slightly different from the pictures. Please understand.
