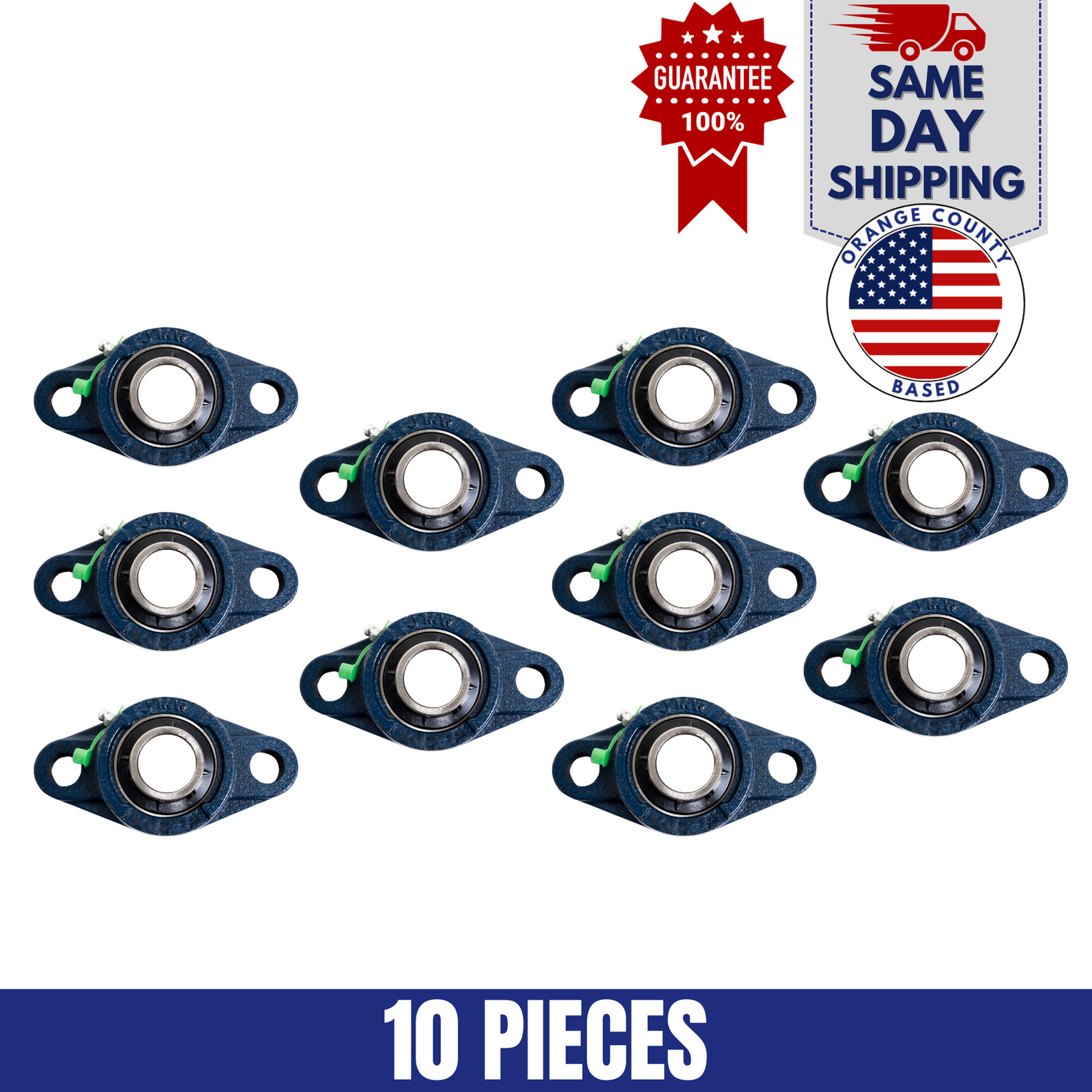

UCFL204-12 3/4\" Bore 2-Bolt Flange Bearing Cast Iron Self-Aligning 10 Pack For Sale

UCFL204-12 3/4\" Bore 2-Bolt Flange Bearing Cast Iron Self-Aligning 10 Pack

• Bore Size & Secure Mounting: The UCFL204-12 flange bearing features a 3/4” bore, two-bolt cast iron housing, and dual set screws that secure the inner ring to the shaft. Verify shaft diameter and mounting dimensions before ordering.
• 2-Bolt Oval Flange Housing: Cast iron flange housing features two mounting points in a compact oval configuration for secure installation against flat mounting surfaces. Designed to provide stable shaft support where a two-bolt flange mounting arrangement is required.
• Self-Aligning Insert Bearing: Features a spherical outer bearing surface that allows the insert to self-align within the housing, helping accommodate minor shaft misalignment and support smoother operation and more even load distribution.
• Pre-Lubricated & Greaseable: Bearing comes pre-lubricated and ready for installation. An integrated grease fitting allows periodic re-lubrication as part of routine maintenance to help maintain bearing performance.
• AISI 52100 Chrome Steel Bearing: The mounted bearing insert is manufactured from AISI 52100 chrome steel for strength, hardness, and wear resistance. Suitable for conveyors, agricultural equipment, material handling systems, machinery, and other industrial applications.

Style:2 Bolts

Material: Cast Iron

Bore Size:3/4 Inch

Static Load Rating:6.65 kN/1500 lbs

Dynamic Load Rating:12.8 kN/2900 lbs

Max RPM:4000

Quantity Per Order:

Self Alignment Feature:If the bearing is crooked for example when you lay it on a flat table, it is not flat. Please don\'t worry. This is our self-alignment feature. These bearing are meant to have some play in them. When y

Product Description:

Alternative Part Numbers:

AMI: UCFT204-12,Browning: VF2S-212,Dodge: F2B-SC-012,Fafnir: YCJT-3/4,Link-Belt: FX3-U212N,Peer: FHSFT204-12G,RHP: SFT-3/4,Sealmaster: SFT-12,SKF: FYT-3/4-TM
