Valab Schottky Bridge Rectifier 100V 10A Valab Workshop Selection High-Current Schottky Bridge Rectifier 200 V / 10 A • Low-Loss Audio Power-Supply Upgrade A workshop-built rectifier that earned a place in the Valab store
This bridge rectifier was originally developed by the workshop as its own project. After trying it in an audio power supply, I was impressed by its refined presentation, excellent detail retrieval, and the ease with which the improvement could be heard. I therefore purchased a small quantity to share with Valab supporters.
Why Schottky Rectification?
The module uses selected Diotec Semiconductor MBR20200-series Schottky rectifiers. Compared with a conventional silicon bridge, Schottky devices offer a lower forward-voltage drop and do not exhibit the conventional reverse-recovery behavior that can generate switching noise in a power supply.
In a carefully built audio system, a quieter and more efficient rectification stage can contribute to a cleaner background, finer low-level information, and a more natural sense of texture. In my own listening, the change was not subtle: resolution improved while the sound remained delicate and unforced.
Construction Highlights Rectifier technology High-current Schottky barrier rectifiers Selected devices Diotec Semiconductor MBR20200-series Module rating 200 V / 10 A Output leads 1.2 mm diameter copper leads (approximately 16 AWG) PCB current path Generous copper width and thickness, designed with ample current-handling margin Thermal management Large aluminum heat sink fitted as standard Designed with real operating margin Suitable for power supplies serving loads up to 500 W* Designed for Audio Upgrades
This module is especially suitable for upgrading the main power supply of a power amplifier, integrated amplifier, active speaker, headphone amplifier, or other audio equipment operating within its voltage and current limits.
The low-loss rectifiers operate efficiently, and in normal use the module shows very little temperature rise. The added heat sink provides further thermal margin for sustained high-power operation.
Connection DC − | AC | AC | DC +
Always verify the markings on the PCB before wiring. Installation should be carried out by a qualified person with the equipment fully disconnected from mains power.
Package Includes

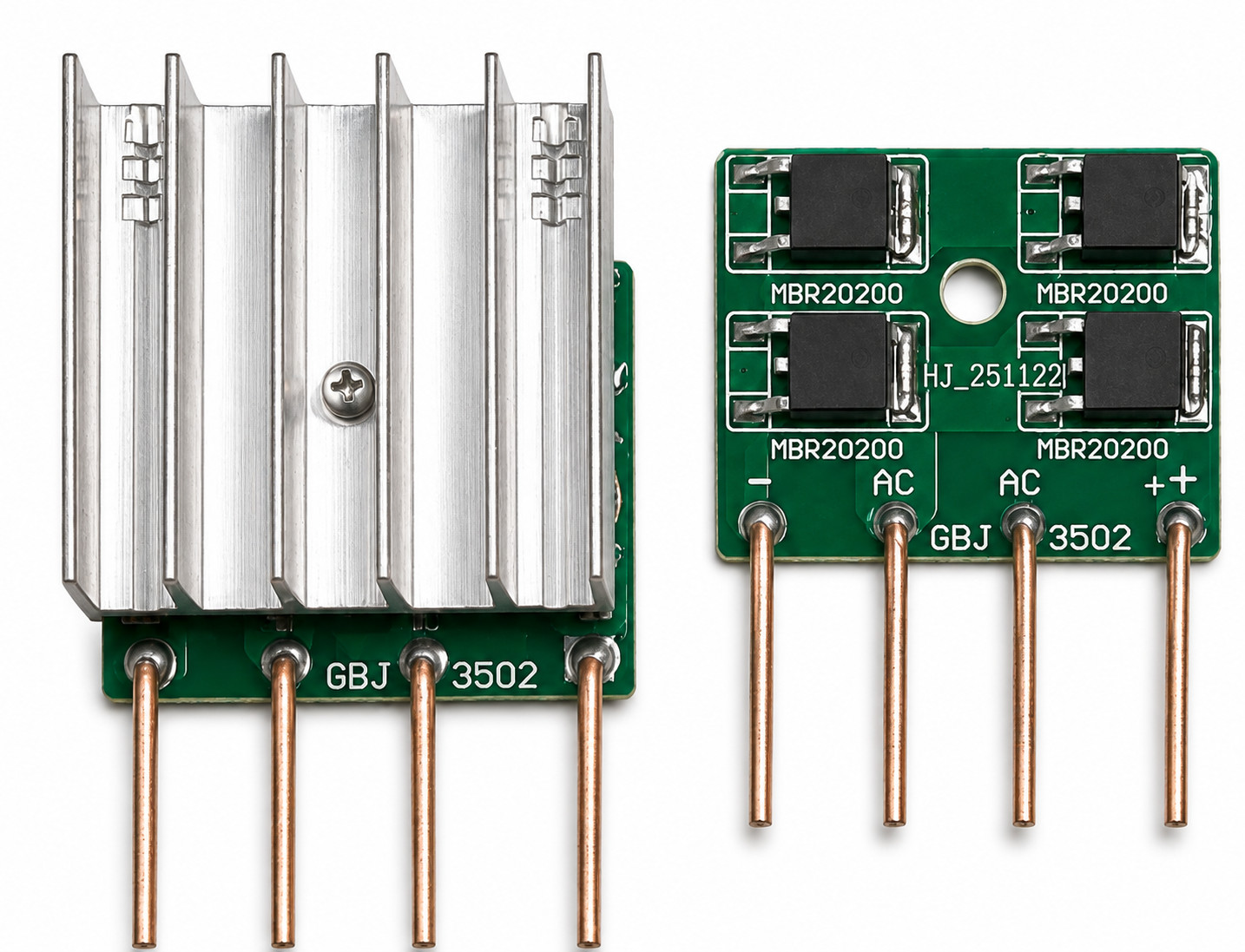

One assembled Schottky bridge rectifier module with aluminum heat sink, as shown in the product photographs.
*Important application note: The 500 W figure describes an intended application range, not an unconditional power guarantee. Actual safe power depends on transformer voltage, load current, waveform, ambient temperature, enclosure ventilation, wiring, fuse protection, mounting, and duty cycle. Do not exceed the module rating of 200 V / 10 A. Listening impressions are subjective and may vary with the equipment and system.
If you’re purchasing multiple items, we’re happy to offer a special price in addition to the savings from combined shipping.
Please contact Kevin through Messages before placing your order. He’ll be happy to put together a great offer for you.
If you’d prefer to complete your purchase right away, please feel free to proceed with checkout. Kevin will refund any excess shipping charges afterward.
Thank you for your support!
Built in small quantities • Selected and offered by Valab
