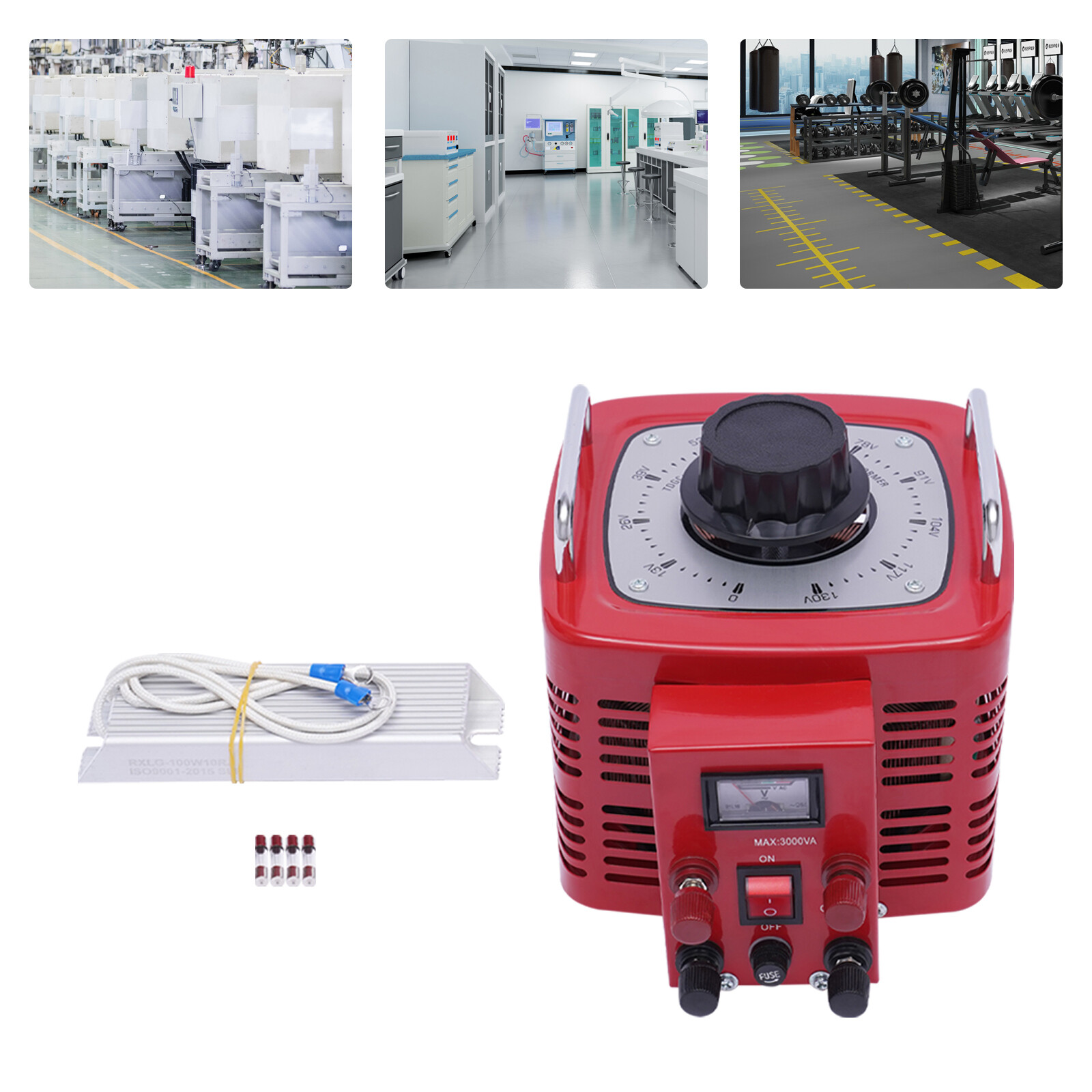

Variac Transformer Variable Voltage AC Regulator Metered 3000W 30Amp 110V

Application

It is suitable for motor speed control, label printing machines, EE labs, test for railroad switching, power supplies, satellite, equipment, and telecommunication equipment.

Specifications

Model: TDGC2-3KM

Color: Red, Black

Material: Iron, Copper Coil

Surface Treatment: Vacuum Dipping Paint

Style: Modern

Shape: Annular

Mounting Type: Free-standing

Phase Number: Single

Power Source: Corded Electric

Input Voltage: 110V AC 60Hz

Output Voltage: 0-130V AC 60Hz

Max. Power: 3000VA

Fuse: 30A

Power Cable Length: 1.5m/4.9ft

Product Size: 19*24*20cm/7.48*9.44*7.87inch

Package Size: 31*26*25cm/12.2*10.24*9.84inch

Gross Weight: 10.5kg/23.14lbs

Package Included

1* Power Transformer

1* Braking Resistor

4* Fuses

1* English Manual

Description

If you are troubled with situations such as poor safety performance of electrical appliances, frequent tripping due to unstable voltage, and electrical appliances brought back from abroad cannot be used normally, then you should get our power transformer that can effectively realize voltage switch(0-130V). It uses high-quality iron material and copper coil, ensuring high durability and stable performance. It is also widely applicable to various appliances.

Key Features

Premium Material: This power transformer adopts high-quality iron with vacuum dipping painting treatment, making it strong and durable.

Stable Performance:Using all copper coilswithout waveform distortion,this 3000VA power transformer has stable performance and high efficiency that you can use with confidence.

0-130V Adjustable: It\'s a contact voltage transformer with a wide voltage range (0-130V), and you can easily adjust the output voltage by turning the comfortable rotary handle on the top.

Efficient Heat Dissipation: Adopting a through-bodythermal grid design, this transformer allows for a good heat dissipation effect and continuous use and extends its service life.

Safety Protection: There are various safety protections such as over-voltage protection, short-circuit protection, overload protection, current-limiting protection,and thermal protection, ensuring your safe use of this machine. And the equipped braking resistor also gives a better protection to this transformer.

Compact Size:The compact size (7.48*9.44*7.8inch) means this machine won\'t occupy your space, so you can put it in any small corner and carry it anywhere conveniently.

Protective Package: To prevent the product from being damaged and bumped during transportation, we packed it with foam to protect this machine to the maximum extent.

Buy with Confidence:We have been working hard to provide better service and quality for our customers, which is our goal. If there is any problem with our products. Please contact us in time.

Details

Carbon Brush:The premium carbon brush allows for precise voltage adjustment without power jump occurrence and has a long lifespan.

Standard Electronic Wire: Themulti-strand copper electronic wire with a tin coating is high-temperature-resistantand not easy to oxidize.

Anti-slipFoot Pads: The anti-slipfoot pads make this transformer stand stable without easily slipping and effectively avoid scratching the worktop surface.

Four Fuses: The equipped four fuses allow for easy and money-saving replacement.

Notes

• Most devices have a surge (when first turn on) much higher than the operating amp rating. E.g, a motor with a 20 amp rating may have over 20 amp surge, and you will need a more powerful transformer.
• It requires an AC input and the output is also AC, providing an AC power supply.
• The inductive load that the ac variable transformer represents is not compatible with most GFI circuits and they will trip the breaker. Not equipped with an isolated transformer.
• The lower the output voltage regulation, the smaller the output power and the smaller the load power.
• To ensure safety, please power on the transformer for 15 minutes before connecting it to your appliance for use.
• For capacitive load, just leave enough allowance on the rated power capacity of the unit to avoid overloading.
• Before turning on the power transformer, please carefully read the English manual and ensure that the electrical power has been turned off. At the same time, check the rated power consumption of the equipment to avoid overloading the equipment. Please cut off the power supply after use.
• Please check the regulator regularly with a carbon brush and ensure that the brush and contact parts do not exceed the width of two wires. Please check the insulation resistance regularly. The insulation resistance between the coil and the base should not be less than 0.08 inches.
• The equipment will generate heat during use. Please place it in a dry and well-ventilated area at all times. Do not block the side cooling holes with foreign objects to affect heat dissipation, and keep away from high temperatures, humidity, inflammable, and explosives.
• Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
