Victron Energy SmartShunt 500A Bluetooth Shunt IP65 Battery Gauge 6-70V For Sale

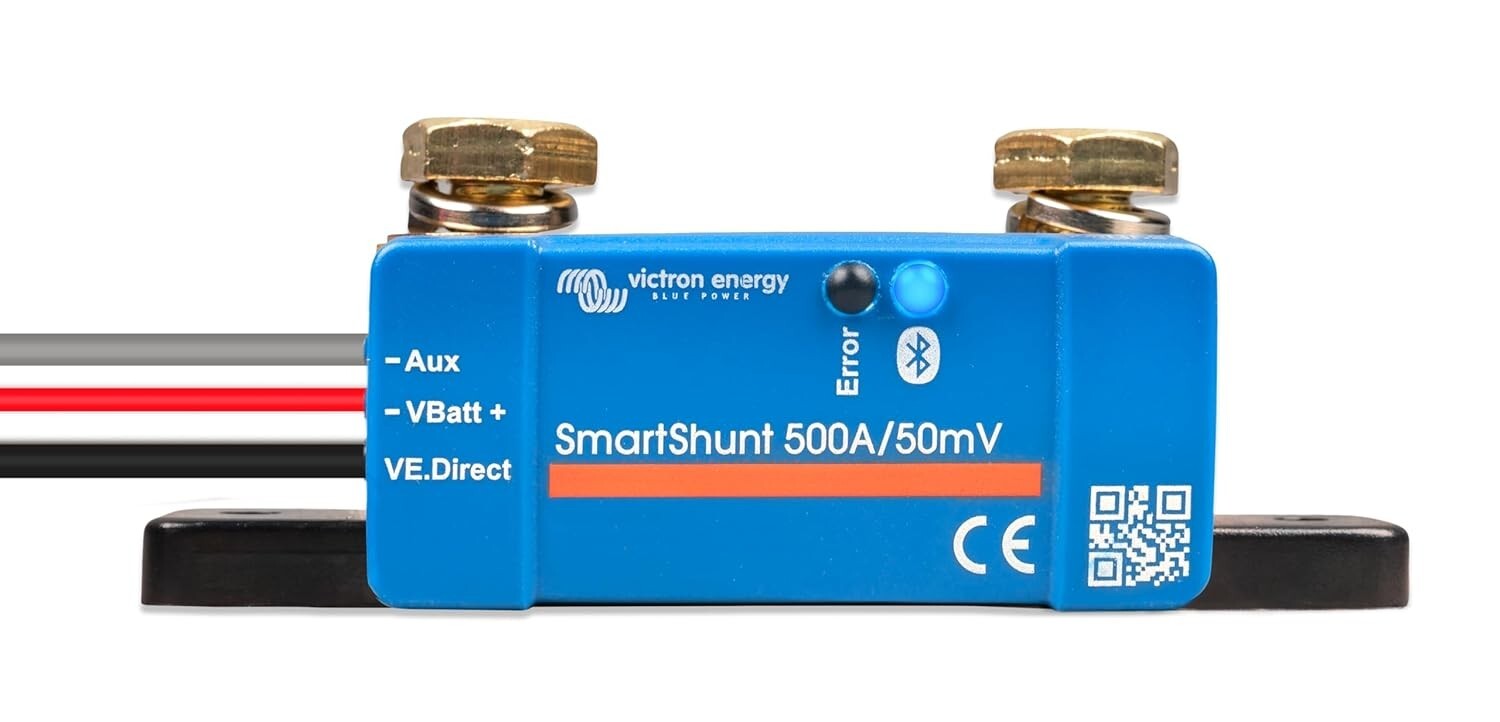

Victron Energy SmartShunt 500 A IP65 – Bluetooth Battery Monitor

The SmartShunt is Victron’s most streamlined battery monitor: all the intelligence of a full panel gauge built straight into a rugged 500-amp shunt. Pair it with the free VictronConnect app (or any Victron GX device) and your phone becomes the display—showing real-time State-of-Charge, time-to-go, amperage in/out, and 40-plus days of history.

Key Benefits

• IP65 sealed housing – fully dust-tight and water-jet resistant for engine rooms, bilges, vans, and off-road rigs.

• High current capacity – 500 A continuous / 50 mV shunt handles large inverters, thrusters, or starter loads with ease.

• Built-in Bluetooth 5 – wireless setup, live monitoring, firmware updates, and user-defined alarms from your smartphone.

• Auxiliary input – track a start-battery voltage, midpoint voltage on a series bank, or add an optional temperature sensor.

• Ultra-low self-consumption (< 1 mA) – preserves stored batteries during long lay-ups.

• VE.Direct port – single-cable integration with Victron Cerbo GX, Color Control GX, and other GX devices for system-wide data.

Technical SpecificationsParameterValueSystem voltage6.5 – 70 V DCProgrammable battery capacity1 – 9 999 AhAccuracy±0.4 % (current), ±0.3 % (voltage)Operating temperature–40 °C to +50 °C (–40 °F to +122 °F)Ingress ratingIP65 (dust-tight, protected against water jets)Continuous current500 ATerminal boltsM10Current draw< 1 mA at 12 VDimensions (H × W × D)46 × 120 × 54 mm (1.81 × 4.72 × 2.13 in)Warranty5 years (manufacturer)What’s in the Box

• Victron SmartShunt 500 A IP65 assembly

• 1.5 m fused positive lead (main battery)

• 1.5 m fused positive lead (auxiliary / starter)

• Pre-wired VE.Direct socket

• Mounting hardware & quick-start guide

Ideal Uses

Off-grid solar power banks • RV & van conversions • Marine house banks • Backup power systems • Industrial equipment—anywhere you need accurate, no-nonsense battery monitoring without extra displays.

Quick Installation

1. Mount the SmartShunt on the negative battery bus.

2. Connect the fused positive lead to the battery’s positive post.

3. Download VictronConnect, pair via Bluetooth, and set your battery capacity and charge limits. No panel cut-outs, no extra cabling.

Why Buy From Us

• Genuine Victron gear – factory-fresh, never refurbished.

• Fast shipping – from our U.S. warehouse, usually same-day.

• Expert support – knowledgeable help before and after the sale.

Upgrade to precise, hassle-free battery monitoring—order your Victron SmartShunt 500 A IP65 today!
