for All Products ViewZ VZ-PVM-I3W3N 27 inch 1920x1080 IP Public View Monitor / 2MP Camera / HDMI VGA / RJ45 / White Manufacturer:ViewZ SKU:VZ-PVM-I3W3N Condition:New Warranty:3 Years

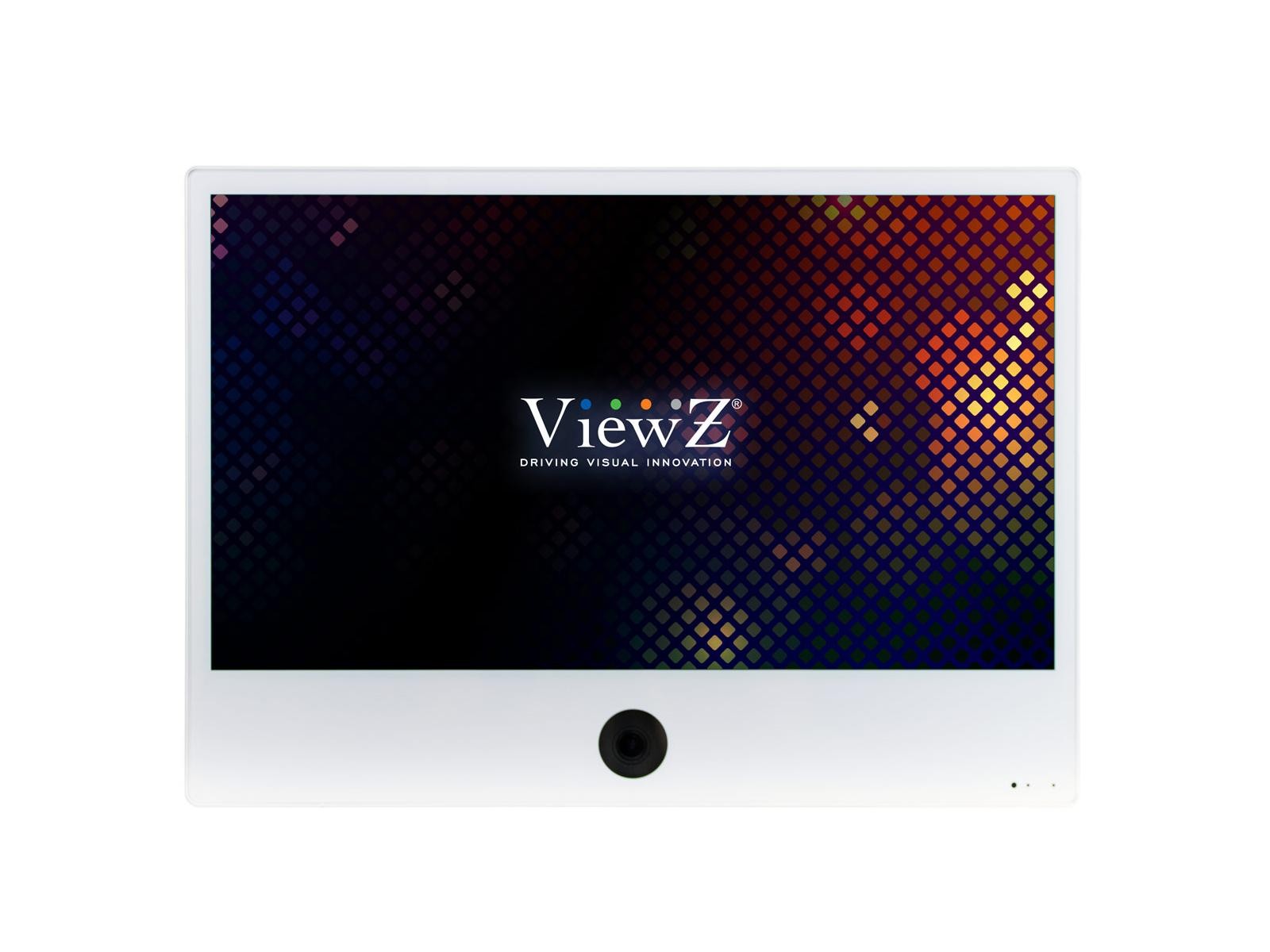

The VZ-PVM-I3W3N is a 27 inch full HD IP Public View Monitor designed for integrated surveillance display applications. It combines a 1920x1080 IPS panel and a built-in 2 megapixel IP camera to provide continuous zoned viewing and local imaging in a single enclosure. The unit is ONVIF Profile S compliant for straightforward integration into existing IP video systems.
Key features include a full HD 1080p IPS display with 178 degree viewing angles, commercial grade LED backlight, and PIP/PBP multi display modes. The integrated camera uses a SONY IMX322 sensor and supports H.264 and MJPEG compression, allowing local capture and streaming over Ethernet. Motion detection and time-interval source switching are available for automated display control.
Display performance is defined by 300 cd/m2 typical brightness, 3000:1 contrast ratio and a response time under 12 ms, delivering clear motion and accurate color. The camera subsystem supports 1920x1080p at 30 fps and a vari-focal DC auto iris lens for flexible field of view. Video processing includes 3D comb-filter, de-interlace, and digital noise reduction functions to optimize analog and IP sources.
Connectivity covers HDMI, VGA, composite BNC, audio in/out, RJ-45 10/100 Base-T and a DC12V camera power output. The monitor supports ONVIF 2.4 and common network protocols such as TCP/IP, RTSP and FTP for recording and management. External storage options include SD/SDHC and USB 2.0 host for on-site media playback and archiving.
This public view monitor is suited for retail, banking, transportation hubs and other public spaces where continuous display and integrated capture are required. Use cases include live camera display in customer-facing areas, combined digital signage and security monitoring, and compact installations requiring local recording. Multi-language OSD and auto source recovery simplify operation across diverse deployments.
Installation is straightforward with VESA-compatible mounts and support for dual voltage AC 110-240V or 24V DC operation. The enclosure uses protective glass over an IPS panel for durable viewing and wide angle performance. A three year parts and labor warranty and a typical MTBF of 50,000 hours provide long-term reliability for Size27"Max. Resolution1920x1080 at 60HzPixel Pitch0.31125 mm x 0.31125 mmBrightness300cd/m2(Typical)Contrast Ratio3000:1Aspect Ratio16:9Viewing Angle (H/V)178° /178°Display Color16.7 MillionResponse Time<12 msVideo ~ 84Khz / 50 ~ 75HzAV (Composite) In1Camera (CVBS) Out1HDMI In / VGA In (15Pin D-Sub)1/1Audio In/Out1/1Ethernet 10/1001DC12V Out (Camera Use)1Multi Display FunctionPIP/PBPFilter Type3D Comb-filter / De-InterlaceAnalog Video Resolution (MAX)600 TV LineMulti-lingual LanguageEnglish, Spanish, French, Russian, PortugueseBuilt in Speaker5Wx2Outline Dimension (W x H x D)25.07" x 17.93" x 2.17" 636.8mm x 455.60mm x 55.3mmNet Weight /Gross Weight28.66 lbs (13.00 kg) / 33.06 lbs (15.0 kg)Camera Type2 Mega Pixel IP CameraImage Sensor / Encoder ChipsetSONY IMX322 / Amba S233LensDC Auto Iris 2.8~12mm Vari-focal LensTotal / Effect Pixel1920(H) xl080p(V) 30fpsVideo CompressionH.264, MJPEG, CBR, VBR supportVideo OutIch CVBS (NTSC/PAL) / Ich RJ-45 outputMotion DetectionSupportEthernet Port10/100 Base-TWeb ApplicationIE 6" 11, FirefoxNetwork ProtocolTCP/IP, UDP, SMTP, HTTP, FTP, PPPOE DHCP, DNS, DDNS, UPNP, RTP, RTSPIntegration ProtocolONVIF 2.4 (supported)Function2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog D/N, WDR, AGC, AWBExternal StorageSupport SD/SDHC CARD, USB 2.0 HOSTOutputVIDEO - HDMI(1080p) / AUDIO - L/R, HDMIVIDEO FormatRM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4VIDEO Resolution1080P at 60HzAUDIO FormatMPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCMImage FormatJPEG, TIF, PNG, BMPVIDEO Play ControlAUTO, REPEAT, ZOOM, RESUME, TIMETransmitter - IR Remote ControlYESPower Electrical Ratings ConsumptionAC 110~240V (50/60Hz) | 24V DC / 3A | < 46 WWarranty Parts/ Labor MTBF (Approx.)3 Year/3 Year | 50,000 HoursOperating FCC(A), CECompatible Mounts Wall CeilingVZ-WM50, VZ-AM02 VZ-CMKiT-01, VZ-CMKiT-02 OUR PERKS Great Prices and
