ThePioneer SX–737 is one of the great all-around receivers from the vintage audio era. It does everything great. No weak spots at all. Plenty of power at an under rated 35 watts per channel, and can drive most speakers. Superb FM tuner, fantastic phono section, impressive build quality, and superior sound quality. Plus, it is absolutely gorgeous. Just take a look online and you will see that this model hits a sweet spot of doing everything really really right. Sound is balanced, crisp and clear.

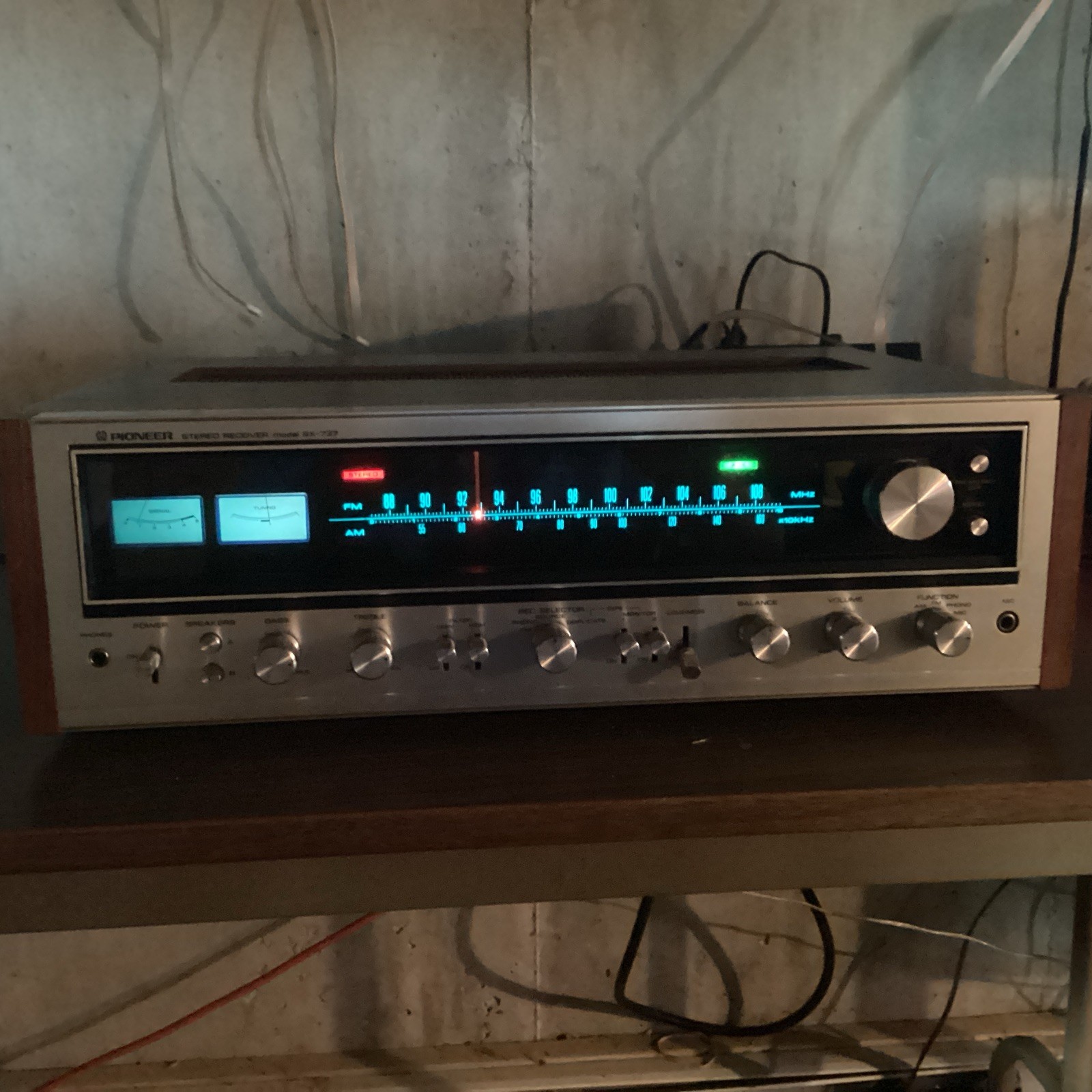

This particular unit has been thoroughly cleaned and tested. All dial lights are working. FM Stereo indicator light is working. The tuner needle light is working. That's often burnt out. Both FM meters are properly lit. Please see pics, you will receive exactly what is shown. The phono section has been tested with a quality turntable and channel separation and sound quality are superb. In other words, this receiver is ready to remove from the box, set up, and enjoy right away.
The cabinet is in excellent condition, the chassis is free of rust. The internal electronics are clean. Nothing left to do with this unit but just set it up and enjoy. More information about the Pioneer SX – 737 is below. Will be carefully packed for safe shipping. Double boxed with plenty of padding to guarantee safe arrival. Thanks and enjoy.
Description
The Pioneer SX-737 is a high-quality stereo receiver featuring 35 watts per channel, min RMS at 8 ohms from 20 Hertz to 20,000 Hertz with no more than 0.5% total harmonic distortion.
It has the power to do the job - not too much and not too little.
Pioneer's medium-powered SX-737 stereo receiver doesn't waste watts, yet it gives you the latest state-of-the-art advantages for versatility and true high fidelity performance.
The FM front end is equipped with a frequency-linear 4-gang variable capacitor and dual-gate MOS FET.
New dimension in FM reception stability is assured by its multiplex demodulator with the revolutionary PLL (Phase Lock Loop) circuit, while the FM IF section is equally advanced with its 5-stage limiter and phase-linear ceramic filters.
The results in FM performance are impressive: 1.9pV (IHF) sensitivity: better than 60dB selectivity: capture ratio of 1.0dB (IHF); and stereo separation of more than 30dB over the 50 to 10.000Hz range.
Accurate high fidelity reproduction of all sounds is achieved by using a particularly precise phono equalizer in the Pioneer SX-737 - it keeps RIAA deviation within ±0.3dB.
As a stereo control center the SX-737 is hard to beat - there are two stereo pairs of tape deck connections with monitoring and tape-to-tape duplication facilities (deck 1, deck 2), a function switch to allow control of the FM and AM tuner sections, a stereo Phono, a microphone and a stereo AUX.
As a bonus, and a feature you'll appreciate all the more with use, there is a unique Recording Selector to permit you to record FM broadcasts while listening to disc reproduction and vice versa. This receiver does the job.
Specifications
Tuning range: FM, MW
Power output: 35 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 40kHz
Total harmonic distortion: 0.5%
Damping factor: 40
Input sensitivity: 2.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 65dB (mic), 70dB (MM), 95dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 1 x FET, 3 x IC, 46 x transistors, 22 x diodes
Dimensions: 500 x 158 x 410mm
Weight: 13.2kg
Accessories: FM T-type antenna
Year: 1974
