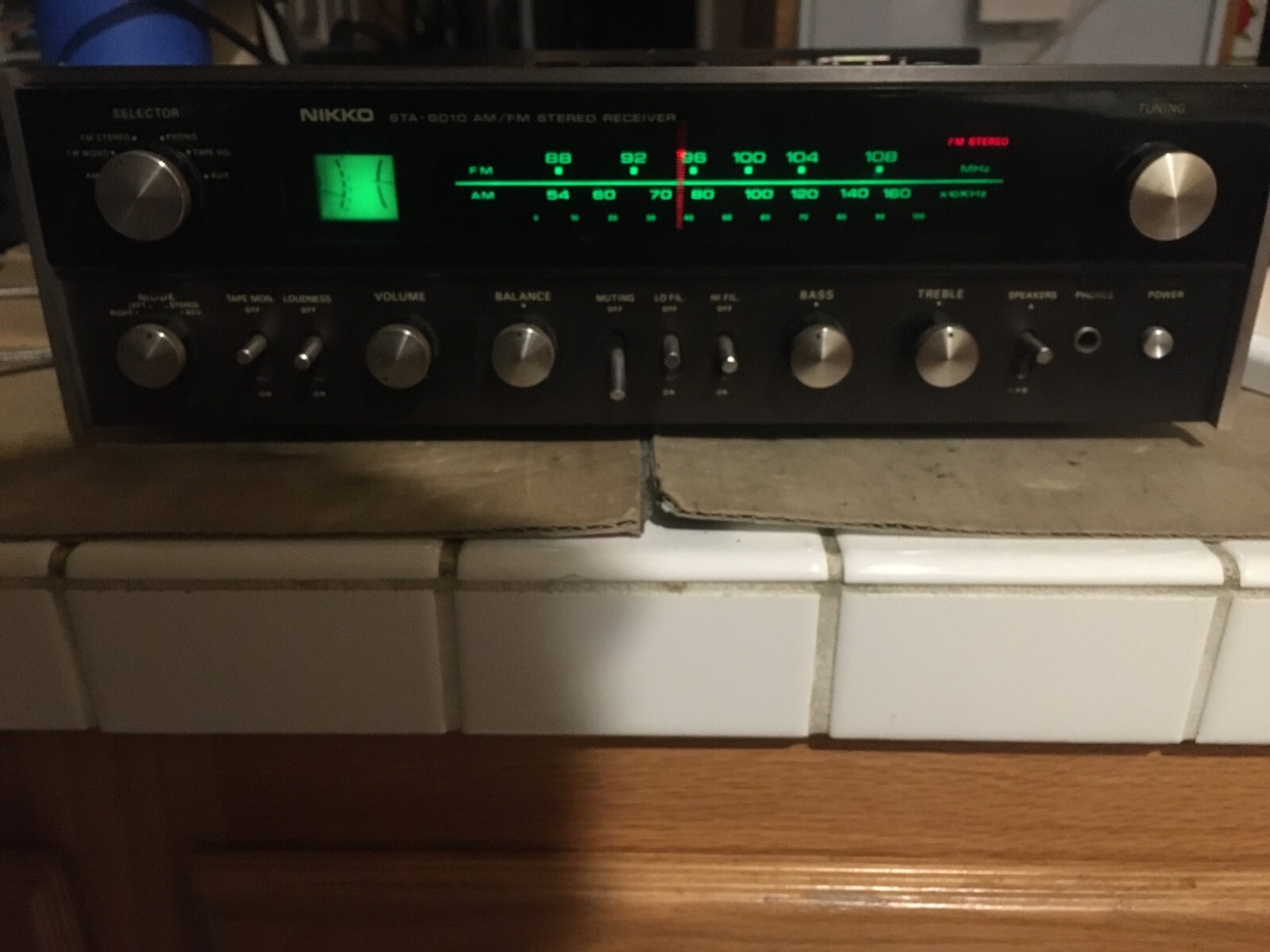

Vintage Nikko STA-8010 Receiver AM/FM Stereo, Reconditioned, Serviced For Sale

Vintage Nikko AM/FM Stereo Receiver
Model: STA-8010

Price: $419.99 + $49.99 flat-rate ground shipping to US mainland states -- SeeNOTESbelow for services performed
• Tested after service and working very well
• Cosmetic condition is exactly as seen in pictures -- some minor marks and scratches due to use and age
• An electronic copy of the user\'s manual will be emailed to the buyer after completion of purchase, if requested
• All work performed by the techs at MC Mobile, Thousand Oaks, CA, Est. 1997
• Six month parts and labor warranty
• Feel free to ask questions before purchase
• This receiver will be different than an un-serviced receiver of this model
• Interesting receiver made in Japan with some tube like character

NOTES:
1. Early solid state design that uses tube amp topology with output matching transformers 2. Defective components were replaced to restore functionality 3. Power Supply filter caps replaced with new caps that are more than 2X larger 4. New PS caps provide more than 2X improvement in dynamic power & improved bass response 5. Dial bulbs and indicator bulbs replaced as required 6. Tuner string repaired and FM tuner aligned to dial indicator 7. AM tuner aligned close but not exact, e.g., 1070 comes in around 1020, etc. 8. Both tuners adjusted and sensitivity is good 9. AM bar antenna connection issue was repaired 10. Red LED illumination added to the tuner dial needle for improved brightness and appearance 11. All of the electrolytic caps around the Nikko pre-amp input module replaced with new, low ESR caps 12. Fixed bias design (in the amp) that eliminates visible crossover distortion up to 15 kHz 13. Power output of right channel at 1 kHz into 8 Ohms at clip is 25.6 W RMS & 25.9 W RMS for the left channel 14. All controls and switches chemically cleaned
Some Specifications from the Manufacturer:

• General

• • Year of manufacture: 1971 - 1973
  • Made in: Japan
  • Color: Black
  • Remote control: N/A
• Power consumption: 140 max / 38 W Quiet.
• Dimensions: 390 x 130 x 340 mm (WxHxD)
• Weight: 8 kg
• Original price approx.: 900 DM

Connections

• Number of inputs:
  • Phono MM: 2.8 mV / 50 kOhm
  • Tape, Aux: 200 mV / 100 kOhm
  • Microphone: 1,5 mV / 50 kOhm
  • Antenna (75/300 Ohm)
• Number of outputs:
  • Headphones (6.3 mm jack, front).
  • 2 pairs of loudspeakers

Technical Data

Amplifier

• Continuous power (at distortion)

8 Ohm: 2x 20 W 4 Ohm: 2x 30 W

• Dynamic power
  • 8 Ohm:
  • 4 Ohm:
• Total harmonic distortion: 0.2% / 0.8% (at 1 W / nominal power).
• Damping factor: 25 / 12 (8/4 Ohm)
• Frequency response: 20 - 30,000 Hz (±1 dB)
• Signal-to-noise ratio: (extraneous voltage)
  • Phono, Microphone: 60 dB
  • Tape, Aux: 70 dB
• Tone control:
  • Bass: ±13 dB at 70 Hz
  • Treble: ±13 dB at 10 kHz
• Loudness: +13 dB (70 Hz), +9 dB (10 kHz)
• High Filter: 10 kHz (-8 dB)
• Low Filter (Subsonic): 70 Hz (-5 dB)
• Mute: Tuner
• Direct/Line-Straight: no

Tuner

• Reception: FM, MW
• Frequencies:
  • FM: 87.5 - 108 MHz
  • MW: 535 - 1,605 kHz
• Frequency response:
• Input sensitivity:
  • FM: 1.8 µV (IHF)

MW: 150 µV/m (IHF) Distortion factor:

• • FM: 0.5% / 0.8% (Mono/MPX).

MW: 1% Signal-to-noise ratio: (noise voltage)

• • FM: 55 dB
  • MW: 50 dB
• Channel separation: 40 dB (FM, 1 selection: 3 dB (VHF)
• Spurious wave selection:
• Mirror frequency attenuation:
  • FM: 50 dB (98 MHz)

MW: 45 dB (1 kHz) IF attenuation:

• • FM: 80 dB (98 MHz)
  • MW: 45 dB (1 kHz)
• AM suppression: 35 dB

Special Features

• FM muting
