Our Restoration Procedures:
1. Check Out The Stereo, If There Is Anything Wrong, We Will Fix It.
2. Clean & Lubricate All Of The Switches & Controls.
3. Electrolytic Capacitor Check, If There Is Any Weak One, We Will Change It.
4. FM IF & MPX Circuit Alignment By Using A Sweep Signal Generator & Victor Scope.
5. Change Burned Lamps.
6. Check Out & Adjust Power Amplifier's Center Voltage &StandbyCurrent.
7. Audio Frequency Response & Distortion Test.
8. Clean All Of The Knobs By Ultrasonic Cleaner.
9. Functional Check.
0.All Sales We Give A 90-Day Labor & Parts Warranty, If There Is Any Problem, You Send It Back We Will Repair It For You Free Of Charge, You Pay The Send-In Postage, We Pay The Send-Back Postage.Description

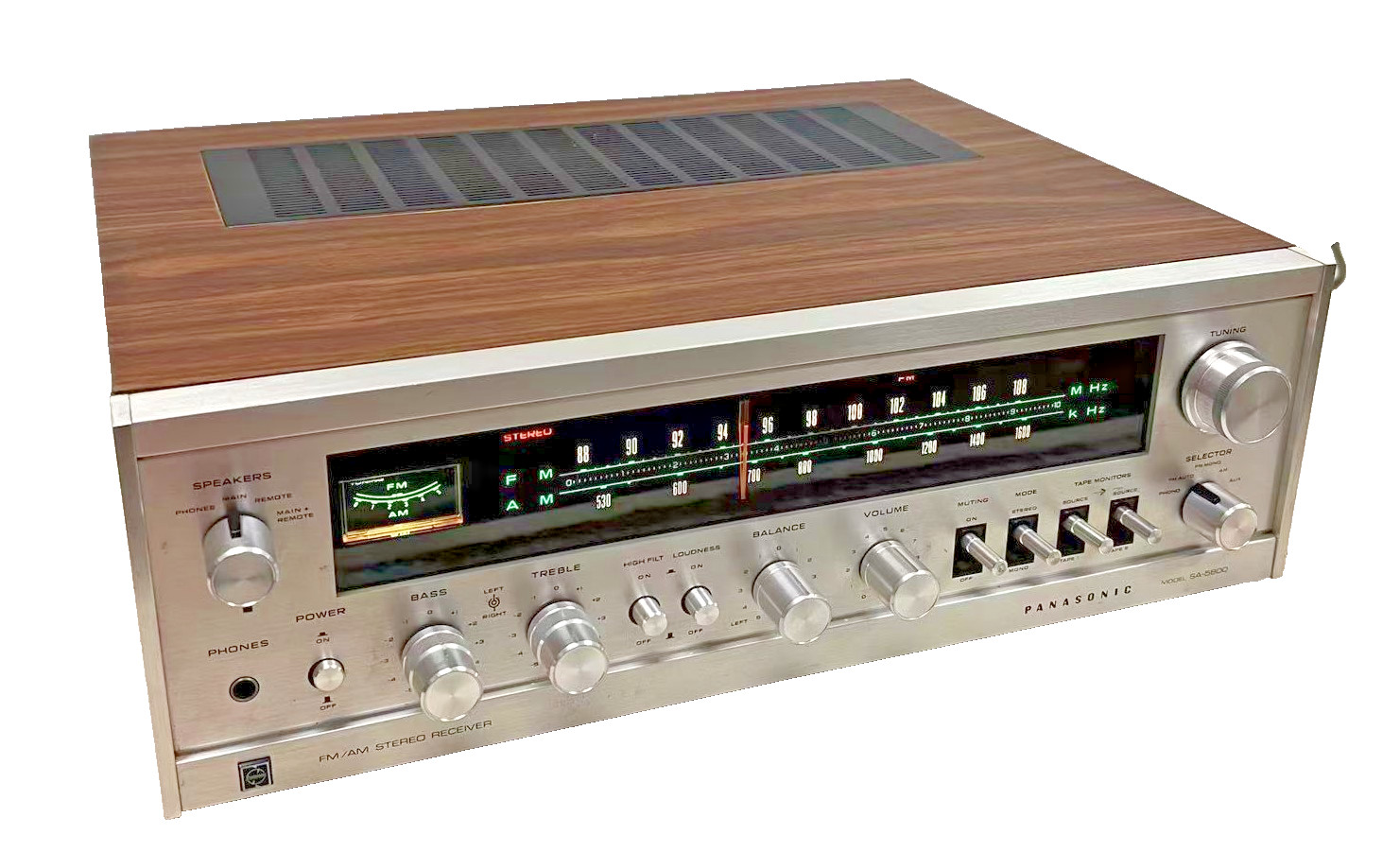

Designed to faithfully entertain your ears, this new receiver highlights all of the exclusive National Panasonic features; direct coupled ITL-OTL-OCL amplification circuitry and newly developed differential amplifier circuits reward you with exciting distortion free audio power.
Two highly sensitive 4-pole (MOS) field effect transistors, a linearly variable 4-gang FM capacitor, and a costly monolithic IC in the specially built MPX circuit will gratify your growing need for selectivity in today's crowded FM world.
Wider frequency response, higher damping factor with lower distortion and noise level, and superb, clear output signal all add up to incomparable stereo enjoyment.
The skilfully designed station targeting system, bolstered by highly sensitive tuning circuitry, makes the SA-5800 the most advanced stereo receiver available today.
The well-bred child of a close-knit family of electronics wizards, this sensitive instrument effortlessly meets the highest standards.
Specifications
Tuning range: FM, MW
Power output: 23 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 65kHz
Total harmonic distortion: 0.5%
Damping factor: 70
Input sensitivity: 2mV (MM), 180mV (line)
Signal to noise ratio: 62dB (MM), 77dB (line)
Output: 180mV (line), 60mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 406 x 140 x 356mm
