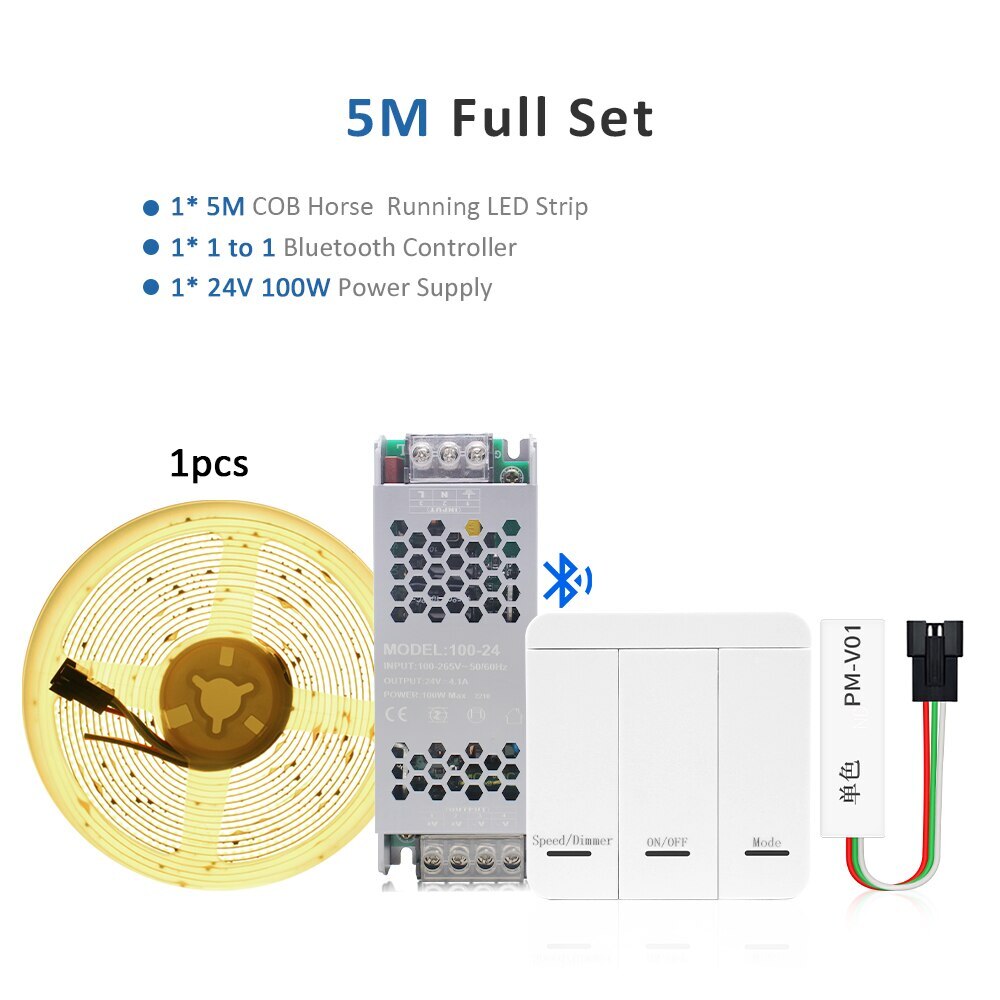

WS2811 IC COB Horse Race Strip
LED Type: COB LED Diodes Light
LED Qty: 360LEDs/M
PCB width:10mm
Max Power: 10-12W/M
Working Voltage: DC 24V
Color: Cool White / Warm White / Natural White
Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K
IP Rate: IP20 Non-waterproof
Connector: 3 Pin Male & Female Connector
Package: 5M/Roll
Wireless Bluetooth Controller
Mini SPI Bluetooth LED strip controller with panel wireless remote control.
Working Voltage: DC 12V 24V
Remote Distance: 15M in the open air
Powered by 2pcs*CR2032 Battery (Not included)
Max control 1000 Pixels(IC)
Speed/Brightness is adjustable
18 Kinds of different modes changable,More than 200 Kinds of different modes in App
With Double-side tape on the back,easy to install at anywhere*** SPI Signal Amplifier (Synchronous Working)
8 Ways output,DC 5-24V
Signal wire can be extented up to max 20meters,they can be connected together between amplifier and amplifier,suitable for building projects.
If you have projects,which is more than 20m,please make sure to order signal amplifier from this link.
DC 24V Power Supply
Input Voltage: 110V / 220V AC
Output Votage: 24V DC
Output Power: 100W/200W
Features: No Noise, Real power output, long life-span.
* Advise: 24V 100W power supply used for 5M, 1pc 24V 200W power supply to drive max 15m 24v 360leds/m COB running water light strips.
If you want to control longer horse race led strip for a project,just buy addtional 24V power supply from our store,there is a wiring diagram in the bottom of this page.
Application
Used for Room ceiling lighting,Flashion Show.led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,the city lighting project, entertainment and leisure places lighting.Work with LED Aluminmium Profile channel to realize linear light
Connection Note
When the led strip is over 10m,please kindly connect power wire to the two ends of led strip, to keep the same brightness.
There is wiring diagram in the following of this page.
