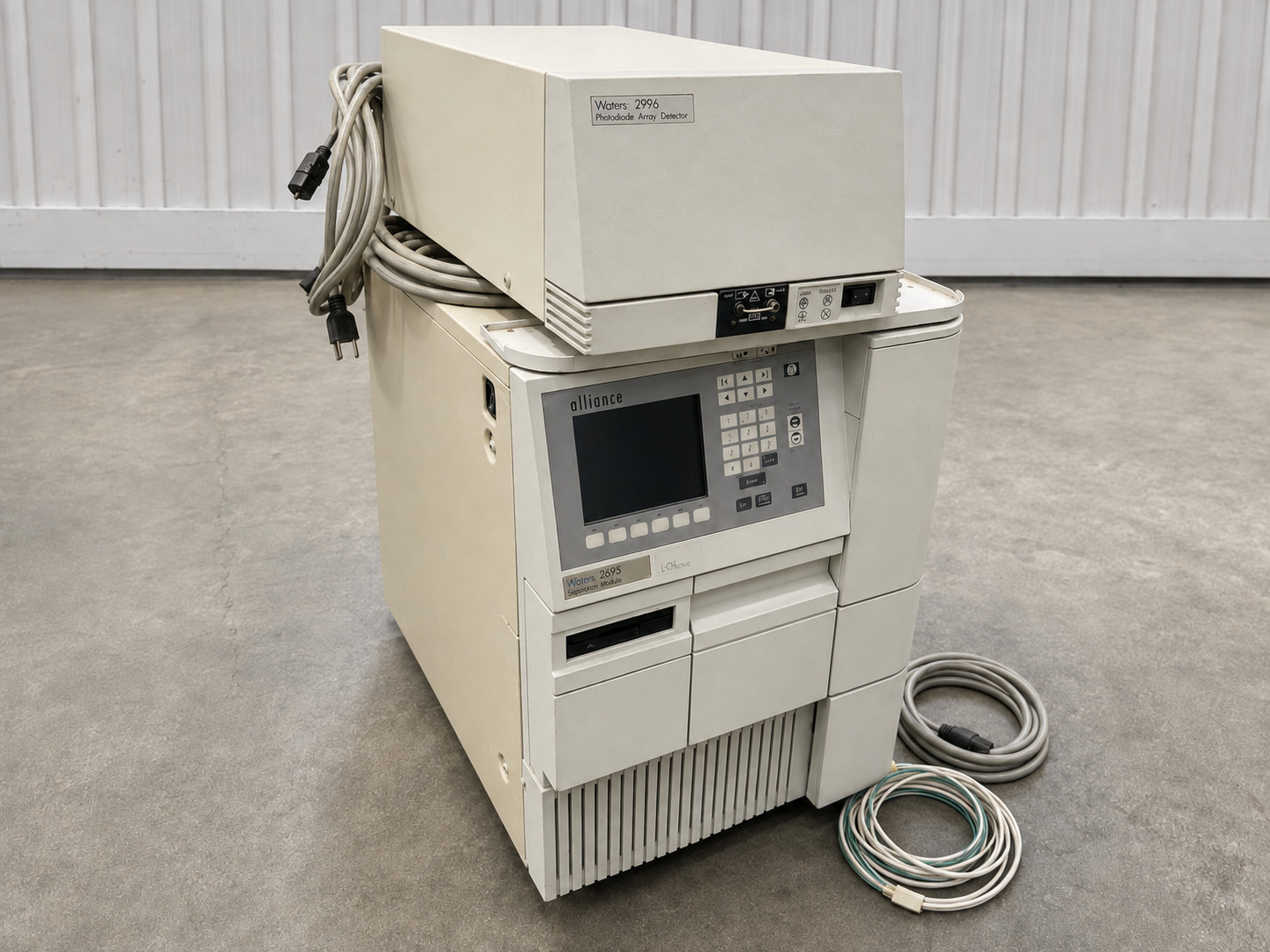

Waters Alliance 2695 HPLC System 2996 PDA Detector Autosampler Column Heater SHC For Sale

Waters Alliance 2695 Separations Module

• Integrated quaternary low-pressure mixing pump
• Inline vacuum degasser
• Built-in autosampler, up to 120 vials (12x32, 2 mL)
• Column heater compartment
• Flow range 50 uL/min to 5 mL/min
• Compatible with 2.1 mm ID columns and larger
• Front keypad control, operates standalone or under chromatography software
• P/N WAT270008
• Serial H03SM4447M

SHC Sample Heater/Cooler Module

• Programmable vial temperature control, 4 to 40 C
• Refrigeration engine mounts to the separations module
• Model Code SHC
• P/N 289000560
• Serial H03SHC681M

Waters 2996 Photodiode Array Detector

• Full spectral acquisition, 190 to 800 nm
• Simultaneous multi-wavelength detection across the entire run
• Supports peak identification and peak purity assessment
• Fixed optical bandpass
• Startup diagnostics on power-up
• P/N 186000869
• Serial F02296 094M

Power

• 100 to 240 VAC, 50/60 Hz
• Standard single-phase wall outlet

Typical applications

• Pharmaceutical assay, purity, stability, and dissolution testing
• EPA methods including 8310, 549.2, and 8330B
• Cannabinoid potency analysis
• General analytical and preparative separations

Included

• Waters 2695 Separations Module with column heater
• SHC sample heater/cooler module
• Waters 2996 Photodiode Array Detector
• Power cords as pictured
