YIHUA 948 Professional Desoldering Station | Vacuum Suction, PID Control, 110V-127V US Version YIHUA 948 Professional Desoldering Station One-Handed Operation · Vacuum Suction · PID Temperature Control · 110V-127V US Version Overview

716–896°F Temp Range 0.05MPa Vacuum Suction PID Smart Control One-Handed Operation What's Included

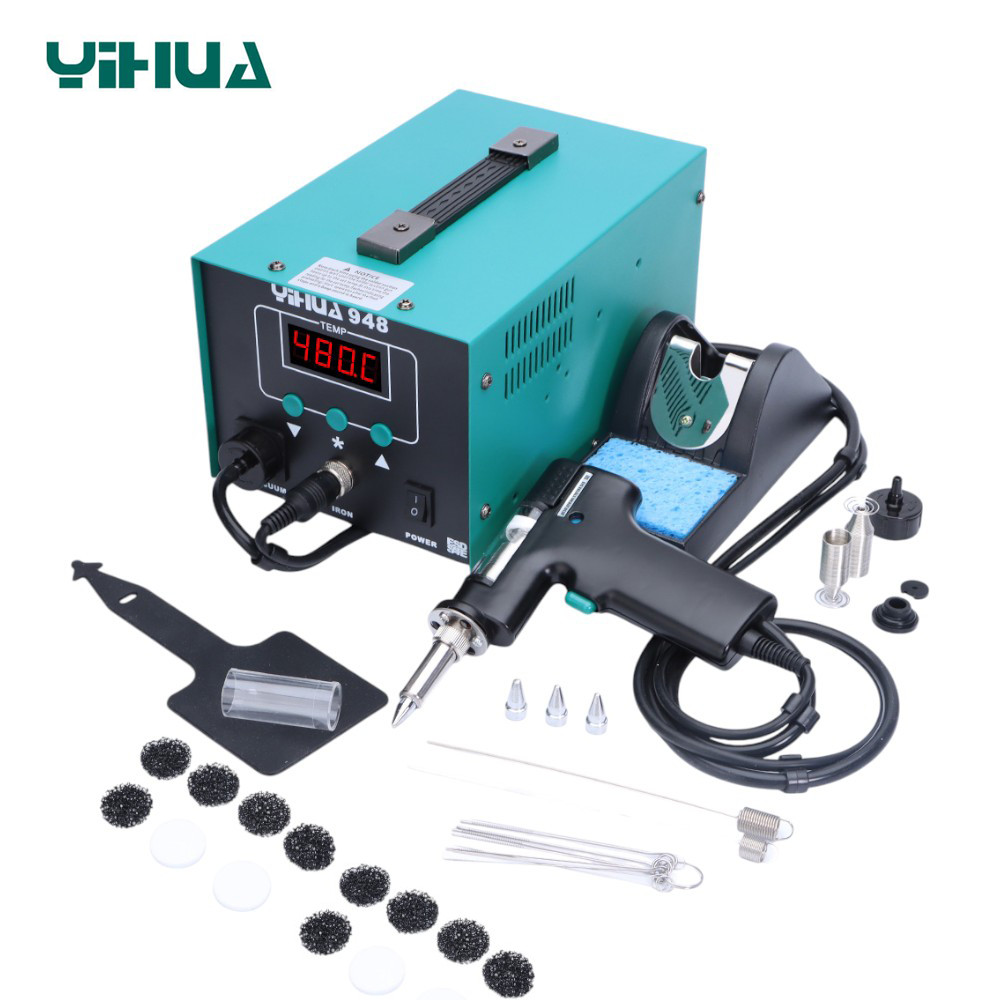

• 1 × YIHUA 948 Desoldering Station Main Unit
• 1 × 948G Desoldering Gun (Ø1.0mm)
• 3 × Additional Desoldering Nozzles (Ø0.8/1.2/2.0mm)
• 1 × Set of Cleaning Pins
• 1 × Desoldering Gun Holder
• 1 × Cleaning Sponge
• 2 × Filter Springs
• 10 × Ceramic Filters (While)
• 10 × Filtration Adsorbers (Black)
• 1 × Heat-Resistant Pad
• 1 × US Plug Power Cable
• 1 × User Manual

Condition: New Professional Vacuum Desoldering Station $109.00 🚚 Ships from USA Buy It NowKey Features

• True One-Handed Operation – Integrated heating and suction in a single gun lets you aim and extract solder with one hand, leaving your other hand free to secure the board.
• Replaceable Filter System – Transparent solder scrap reservoir with visual capacity indicator. Filters can be cleaned for light use or replaced cost-effectively for daily high-volume work.
• PID Temperature Stabilization – Precision PID program maintains consistent nozzle temperature for clean, reliable solder extraction every time.
• Customizable Sleep & Auto-Shutoff – Timer-controlled sleep mode idles the gun at 392°F to reduce oxidation; separate auto-shutoff timer for safety and energy saving.
• Detachable Gun Design – Modular desoldering gun allows easy replacement of the gun or heating element, no need to replace the entire station at end of service life.
• Wide Application Range – Ideal for THT PCB repair, component recycling, multi-layer boards, and desoldering ICs, connectors, transformers and display components.

Why Choose YIHUA

Technical SpecificationsModel948VoltageAC 110V–127V / 60Hz (US Version)DisplayLED Nixie DisplayDesoldering Temp. Range380°C – 480°C / 716°F – 896°FSuction Pressure0.05MPa (measured at nozzle)Nozzle SizesØ0.8 / 1.0 / 1.2 / 1.2mmTip to Ground Resistance＜2 ohmsESD ProtectionYesOperating Temperature0°C – 40°C / 32°F – 104°FStorage Temperature-20°C – 80°C / -4°F – 176°FStorage Humidity35% – 45%Warranty & Support12-Month Warranty Included

• Response within 24 hours
• Replacement or repair provided

Shipping & Returns

• 🚚 Fast shipping from USA warehouse
• Handling time: 1–2 business days
• 30-day free return policy

FAQ

A: Yes, it is specifically designed for continuous high-volume desoldering, far more efficient than manual pumps or solder wick.
• Q: Can I operate it with one hand?
  A: Yes, the integrated desoldering gun combines heating and suction, enabling full one-handed operation.
• Q: Are the filter parts replaceable?
  A: Yes, filter tubes and components can be cleaned for light use or replaced cost-effectively for daily use.
• Q: Does it work with US household voltage?
  A: Yes, it is compatible with standard 110V–127V AC 60Hz US power supply.
