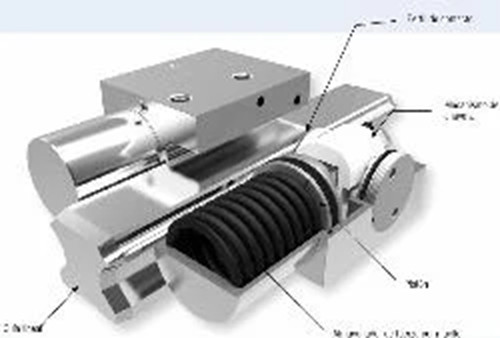

Zimmer Group MKS2501A Pneumatic Linear Guide Rail Clamping Element NC 25mm For Sale

The Zimmer Group MKS2501A is a pneumatic clamping element designed to secure linear guide rails in industrial automation and motion-control systems. Its spring-loaded, normally closed design engages the clamp when compressed air is removed, helping hold the carriage in position during air or power failure.

The MKS series features a compact design, rapid response, and compatibility with a range of 25 mm profile rail guides. The optional PLUS air connection increases the holding force from 750 N to 1,400 N.

• Genuine Zimmer Group industrial component

• Model: MKS2501A

• Pneumatically operated linear guide clamp

• Normally closed (NC) — spring applied, air released

• Provides secure clamping when air pressure is removed

• Standard holding force: 750 N

• Enhanced holding force: up to 1,400 N with PLUS air connection

• Fast opening and closing response

• Designed for 25 mm profile rail guide applications

• Up to 5 million static clamping cycles (B10d rating)

• Suitable for industrial automation, machinery and positioning systems class=\"w6asjq_TextBase _85PZeG_Text\" class=\"w6asjq_TextBase _85PZeG_Text\" data-d-component=\"text\">Details

  Brand

  Zimmer Group

  Model

  Product Type

  Pneumatic Clamping Element

  Series

  MKS

  Clamping Condition

  Normally Closed (NC)

  Standard Holding Force

  750 N

  Holding Force with PLUS Connection

  1,400 N

  Operating Pressure

  5.5–6.5 bar

  Nominal Pressure

  6 bar

  Opening Time

  0.020 seconds

  Closing Time

  0.015 seconds

  Positioning Accuracy

  ±0.02 mm

  Weight

  Approximately 0.4 kg

  Operating Temperature

  −10°C to +70°C

  Installation Direction

  From above

  Maximum Clamping Length

  56 mm

  CE, UKCA, LABS, REACH, RoHS




  Compatibility

  The MKS2501A is designed for compatible 25 mm profile rail guides. Supported combinations include selected HIWIN EG/HG-series guides, Ewellix LLTH rails, and other compatible guide systems.

  Verify the exact rail and carriage combination before purchase, as some installations require an adapter plate.
