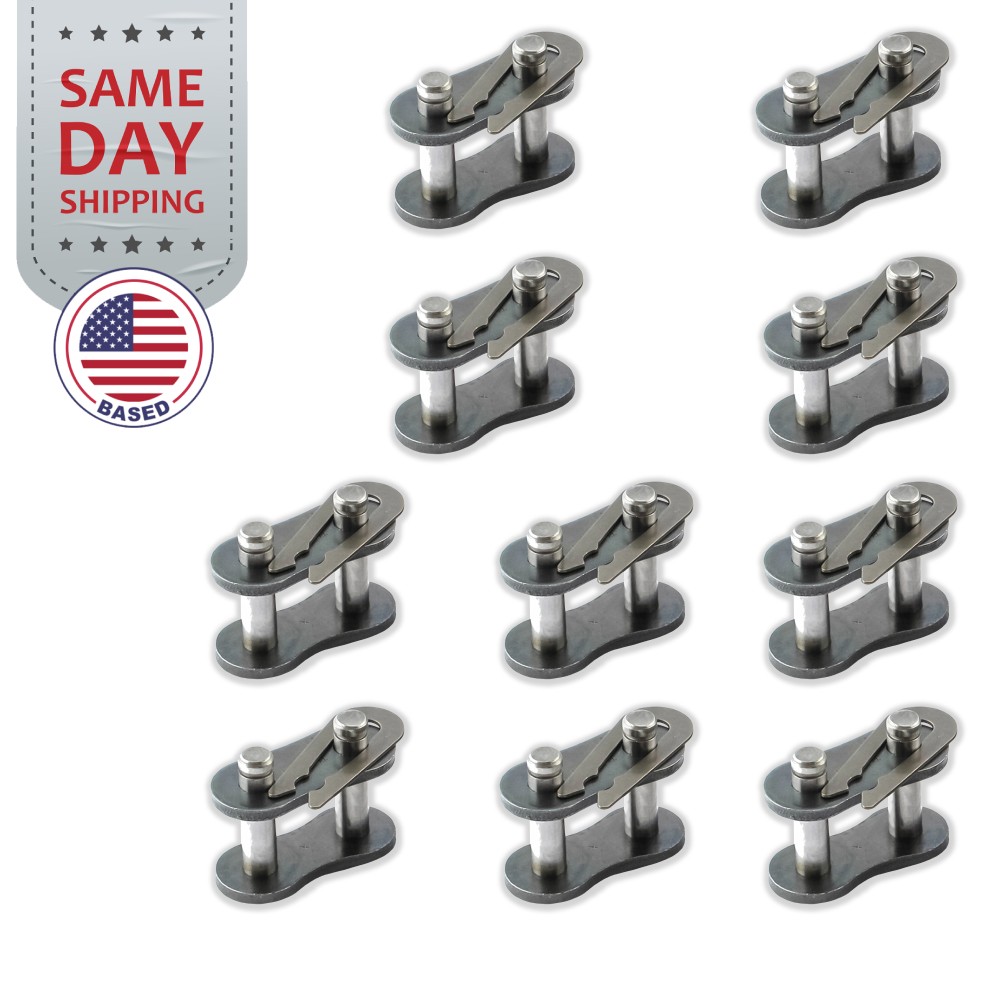

#60 Roller Chain Connecting Links (Lot of 10)
ANSI Chain No.: #60
Pitch (P): 0.75 inch (19.050 mm)
Roller Diameter (d1 max): 0.469 inch (11.91 mm)
Width Between Inner Plates (b1 min): 0.495 inch (12.57 mm)
Pin Diameter (d2 max): 0.234 inch (5.94 mm)
Pin Lenght (L max): 1.149 inch (29.2 mm)
Pin Lenght (Lc max): 1.22 inch (31.0 mm)
Inner Plate Depth (h2 max): 0.708 inch (18.00 mm)
Plate Thickness (T max): 0.127 inch (3.25 mm)
Ultimate Tensile Strenght (Q min): 31.80/7227 kN/LB
Average Tensile Strenght (Qo): 42.7 kN
Weight (q): 1.256 lb/ft (1.87 kg/m)
