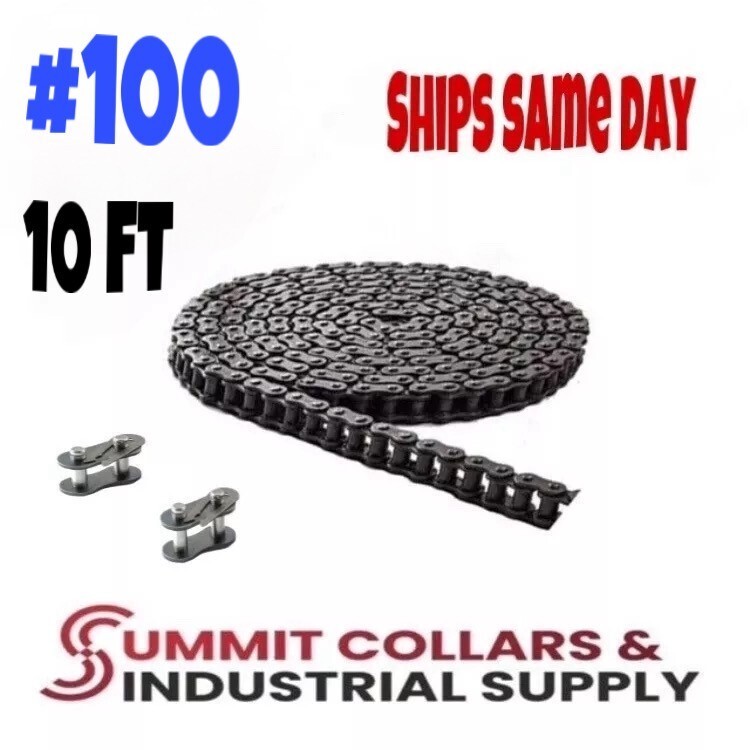

#100 Roller Chain x 10 feet + 2 Connecting Links, Great Quality For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
#100 Roller Chain x 10 feet + 2 Connecting Links, Great Quality:
$106.20
#100 Roller Chain x 10 feet
ANSI Chain No.:#100
Lenght:10 feet
Pitch (P):1.25 inch (31.75 mm)
Roller Diameter (d1 max):0.75 inch (19.05 mm)
Width Between Inner Plates (b1 min):0.744 inch (18.9 mm)
Pin Diameter (d2 max):0.375 inch (9.53 mm)
Pin Length (L max):1.59 inch (40.4 mm)
Pin Length (Lc max):1.759 inch (44.7 mm)
Inner Plate Depth (h2 max):1.18 inch (30.0 mm)
Plate Thickness (T max):0.0157 inch (4.00 mm)
Ultimate Tensile Strength (Q min):88.5/20114 kN/LB
Average Tensile Strength (Qo):109.2 kN
Weight (q):2.627 lb/ft (3.91 kg/m)
|
|
