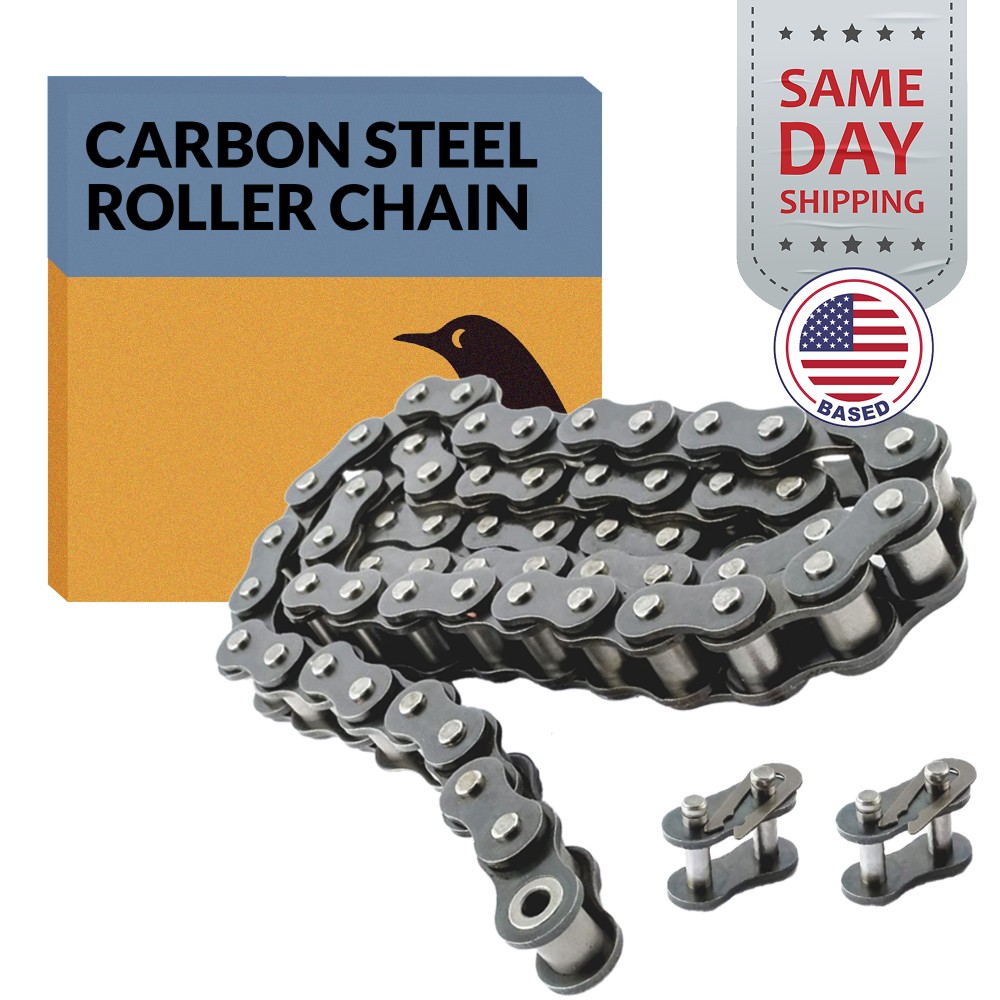

#120 Roller Chain x 10 feet
ANSI Chain No.: #120
Lenght: 10 feet
Pitch (P): 1.5 inch (38.1 mm)
Roller Diameter (d1 max): 0.875 inch (22.23 mm)
Width Between Inner Plates (b1 min): 0.992 inch (25.22 mm)
Pin Diameter (d2 max): 0.437 inch (11.1 mm)
Pin Lenght (L max): 1.98 inch (50.3 mm)
Pin Lenght (Lc max): 2.137 inch (43.3 mm)
Inner Plate Depth (h2 max): 1.405 inch (35.7 mm)
Plate Thickness (T max): 0.188 inch (4.8 mm)
Ultimate Tensile Strenght (Q min): 127/28864 kN/LB
Average Tensile Strenght (Qo): 156.3 kN
Weight (q): 3.776 lb/ft (5.62 kg/m)
