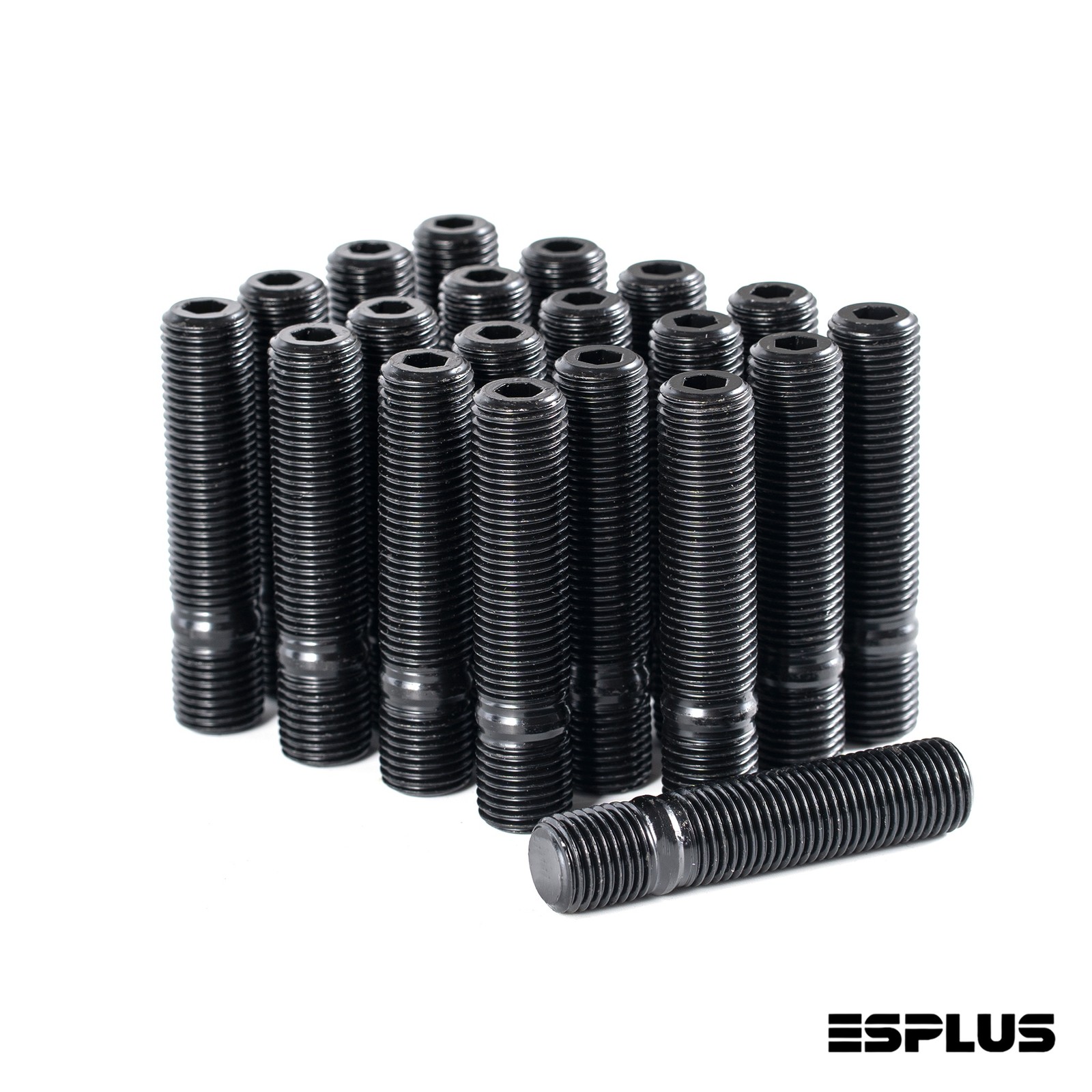

[20] Conversion Studs M14x1.25 to M14x1.5 for 06-27 BMW X3 X5 330e X1 For Sale

Tech Data: Hub Side Thread Pitch: M14x1.25 · Hub Side Length: 15 mm · Wheel Side Thread Pitch: M14x1.5 · Wheel Side Length: 45 mm ? full specs belowFitment:BMW:

• M5 Touring 25-Now
• i5 24-Now
• iX1 24-Now
• XM 23-Now
• i7 23-Now
• i4 22-Now
• iX 22-Now
• 840i 20-Now
• X7 19-Now
• Z4 19-Now
• 530e 18-Now
• X2 18-Now
• 230i 17-Now
• 430i 17-Now
• 330e 16-Now
• 330i 16-Now
• M2 16-Now
• M3 15-Now
• M4 15-Now

+49 more vehicles ? see full fitment belowIMPORTANT FITMENT NOTICE: Important: ? M14x1.5 wheel-side lug nuts required; nuts not included ? Match hub-side thread, stud length and wheel seat ? Seat studs snug with an M3 Allen key and thread locker ? Do not torque the s? \'s chart confirms thread pitch only ? unsure? Message us and we\'ll verify fitment before you buy. ESPLUS Company Logo ESPLUS precision wheel hardware ESPLUS
Precision wheel hardware Store Home Hot Products response Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current message supportApplication context stays together Lug Nuts Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts Lug Bolts Ball Seat Lug Bolts Cone Seat Lug Bolts Wheel Locks Locker Lug Nuts Locker Lug Bolts Wheel Spacers Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts Wheel Adapters 5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter Precision wheel hardware · Fitment-first specification Bolt-To-Nut Conversion Wheel Studs M14x1.5 Wheel-Side Thread Hub installation uses an M3 Allen key and thread locker

[20] Conversion Studs M14x1.25 to M14x1.5 for 06-27 BMW X3 X5 330e X1

Direct-fit upgrade for BMW owners ? confirm your exact year and model in the compatibility chart below before ordering.Bolt-To-Nut Hub UpgradeFor Factory Lug Bolt HubsEasier Wheel Alignment Fitment-first engineering 01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph. 02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering. 03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement. Technical Data Numbers, not adjectives.

Every dimension your wheel cares about ? measured, verified, documented.

A M14x1.25 - M14x1.5 Extend Wheel Studs Type · Bolts to Nuts Conversion Studs ×20 PCS/Set Hub Side Thread PitchM14x1.25Hub Side Length15 mmWheel Side Thread PitchM14x1.5Wheel Side Length45 mmColor and FinishBlackDriveM3Tool RequirementM3 ToolMaterial MadeSCM Carbon SteelQuantity Per Order20 PcsCalifornia Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Vehicle Compatibility Fits your car.
Verified, not guessed.

Bolt-to-nut conversion studs for factory lug bolt hubs, with M14x1.5 wheel-side threads. Hub-side thread and stud length must match the vehicle; lug nut seat type must match the wheel.

1Brands 68Vehicles 3Regions EU Germany 1 Featured BMW Germany · 68 models Lug Nuts Thread RequiredM14x1.5 ModelRegionYear Range 220i MX 2014-Current 228i US 2014-2016 230i US 2017-Current 235i MX 2014 318i MX 2018 320i CA/MX/US 2012-Current 323i CA 2011 325i MX 2011-2013 328d US 2014-2018 328i MX/US 2011-2016 330e US/MX 2016-Current 330i MX/US 2016-Current 335d 2011 335i MX 2011-2015 335is 2011-2013 340i MX 2016-2018 420i MX 2016-2020 428i US/MX 2014-2016 430i US/MX 2017-Current 435i US/MX 2014-2016 440i US/MX 2017-2020 520i MX 2014-2020 525i MX 2009-2010 528i MX 2009-2016 530e US/MX 2018-Current 530i MX/US 2009-Current 535d US 2014-2016 535i CA/MX/US 2009-2016 540i US/MX 2017-2023 550i MX/US 2009-2022 640i US 2012-2018 650Ci MX 2011 650i MX/US 2012-2018 740Li US 2011-2015 740i MX/US 2010-Current 745e MX 2020-2022 750Li MX/US 2008-2019 750i MX/US 2008-2019 760Li MX 2008-2015 840i US 2020-Current M2 MX/US 2016-Current M3 MX/US 2015-Current M4 US/MX 2015-Current M5 CA/MX/US 2012-Current M5 Touring US 2025-Current M6 US/MX 2012-2018 M6 Gran Coupe MX 2014-2018 M8 2020-2025 M8 Gran Coupe 2020-2025 X1 US/MX 2015-Current X2 US/MX 2018-Current X3 CA/MX/US 2010-Current X4 MX 2015-2025 X5 MX/US 2006-Current X6 MX/US 2008-Current X7 MX 2019-Current XM MX 2023-Current Z4 MX/US/CA 2019-Current i3 MX/US 2014-2021 i4 CA/US 2022-Current i5 US/MX 2024-Current i7 US/MX 2023-Current i8 MX 2014-2020 iX MX 2022-Current iX xDrive40 MX 2022-2023 iX xDrive50 MX 2022-2023 iX1 MX 2024-Current iX3 MX 2021-2025

Not sure? Message us ? we verify your exact year & model before you buy.

Product Display A closer look at the product.

Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.

Check Before You Order Some fitment details only your vehicle can tell you.

The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.

Why It\'s Built Different Performance you can torque down. Wheel Support During Mounting

The installed studs guide and support the wheel during alignment, giving the wheel fixed mounting points before the lug nuts are fitted.

Lug Nut Wheel Servicing

The stud system allows wheel removal at the lug nuts while the installed studs remain in the hub.

Defined Wheel-Side Nut Fit

The wheel-side stud threads accept M14x1.5 lug nuts, establishing the nut thread required for wheel attachment.

Controlled Hub Seating

The M3 Allen key seats each stud snug with thread locker; the lug nuts supply the wheel clamping force at the vehicle specification.

How to Install 3 steps to torque.

Follow the sequence below ? fitment is everything, so read Step 1 carefully.

01 Prepare The Hub

Support the vehicle, remove the wheel and clean the hub face and threaded holes. Verify hub-side thread and stud length against the original fitment.

Incorrect hub-side thread or stud length prevents proper fitment. 02 Seat The Studs Snug

Apply thread locker and seat the studs snug using an M3 Allen key. The stud body does not receive wheel-fastener torque.

Do not torque the stud body; clamping force comes from the lug nuts. 03 Mount And Torque The Wheel

Mount the wheel on the studs. Hand-start matching M14x1.5 lug nuts and tighten in a star pattern to the vehicle specification.

Lug nut seat type must match the wheel. 01 / 4 4 photos in this guide — tap the arrows or dots to see every step Important Fitment Notice Important:

• M14x1.5 wheel-side lug nuts required; nuts not included
• Match hub-side thread, stud length and wheel seat
• Seat studs snug with an M3 Allen key and thread locker
• Do not torque the stud body
• Torque lug nuts to vehicle specification

\'s compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through before ordering if anything is unclear.

Why ESPLUS Clarity before checkout.

Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.

Specification First

Thread, seat, dimensions, finish and quantity are organized for direct comparison.

Fitment in Two Layers

Vehicle compatibility and wheel-specific hardware checks are presented separately.

Component-Level Detail

Combination listings keep each component\'s quantity, gallery and technical data distinct.

Pre-Purchase Support

Message us through with your year, model, wheel and current hardware details.

Questions, answered Check the details that decide fit. Will this wheel hardware fit my exact vehicle?Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement. How do I confirm thread pitch and seat type?Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel. What should I verify on aftermarket wheels?Confirm the wheel\'s seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone. What torque specification should I use?Use the vehicle or wheel manufacturer\'s applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation. Where can I find current shipping and return terms?Use the Shipping, delivery and Returns sections of this listing as the current order-level terms. Those listing controls take priority over general informational text. Shipping · Returns · Fitment Order terms, kept current.

The controls attached to this listing are the source of truth for the transaction.

Shipping

Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the order when available.

Returns

The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the purchase record.

Fitment Responsibility

Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through before ordering.

About ESPLUS Precision wheel hardware.
Clarity built into every listing.

ESPLUS focuses on wheel fastening hardware and fitment-critical accessories. We organize product specifications, vehicle application data, wheel-side checks and installation guidance so buyers can compare the right facts before ordering.
