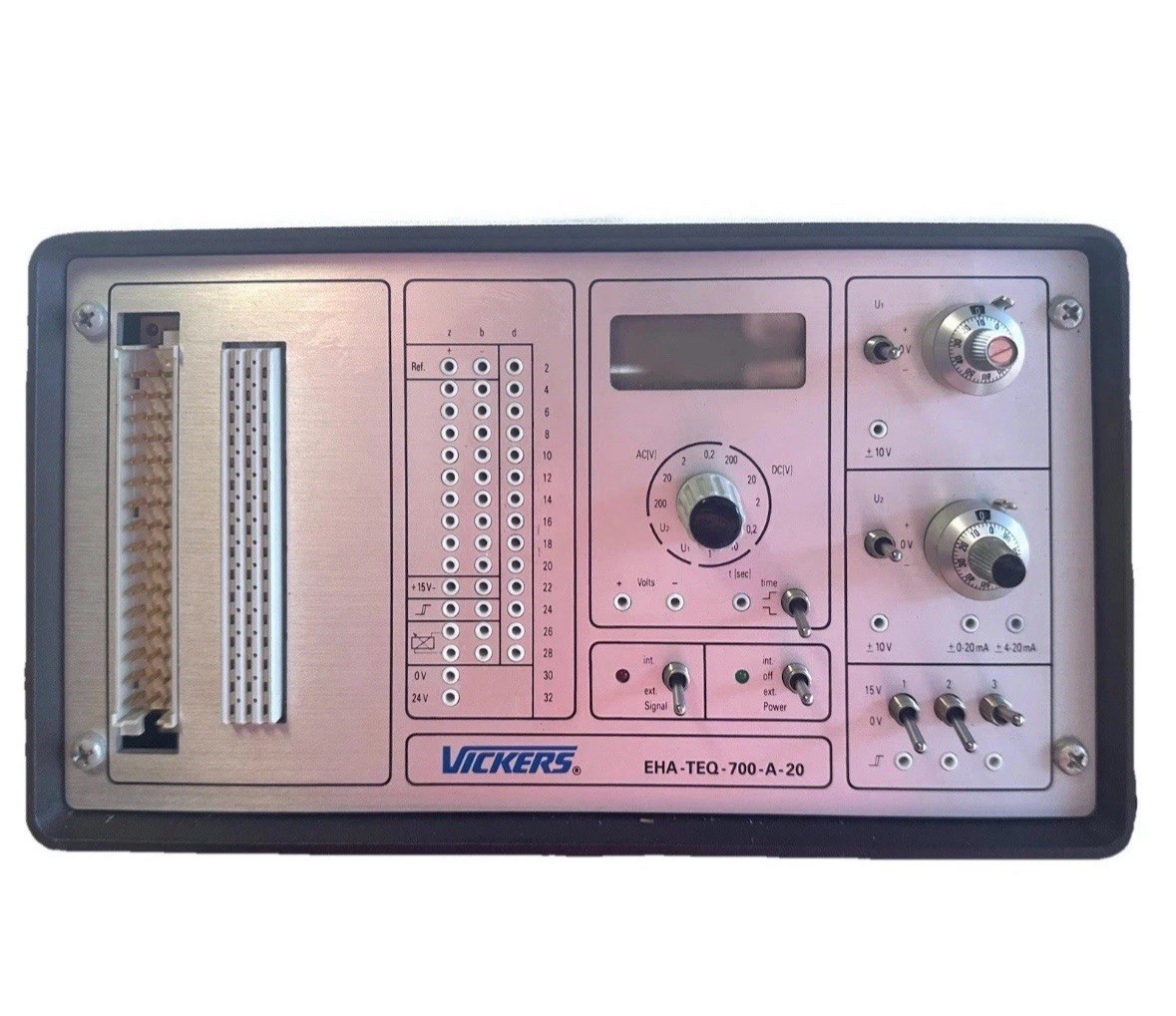

The Vickers EHA-TEQ-700-A-20 is a versatile ramp generator used for testing and calibrating Vickers electro-hydraulic systems. It facilitates the simulation of command signals and the monitoring of valve responses, making it an essential tool for maintenance and troubleshooting.
Key Features of the Ramp generator
Signal Simulation: Generates command signals (voltage or current) to simulate input conditions for proportional valves.
Ramp Function: Provides adjustable ramp-up and ramp-down functions to test valve response times and performance.
Monitoring Capabilities: Monitors valve outputs, including spool position and solenoid current, to assess system performance.
Compatibility: Designed for use with Vickers proportional valves and amplifiers, ensuring seamless integration.
Portability: Compact and lightweight design for easy transport and on-site testing.
Applications
System Diagnostics: Identifies issues in electro-hydraulic systems by simulating various operating conditions.
Calibration: Ensures accurate calibration of Vickers proportional valves and amplifiers.
Maintenance: Facilitates routine maintenance and troubleshooting tasks in industrial settings.
Technical Specifications
Power Supply: 110/220V AC, 50/60 Hz.
Signal Outputs: Voltage: ±10V; Current: 0-20 mA.
Ramp Time Adjustment: 0 to 12 seconds.
Monitoring Outputs: Spool position, solenoid current.
Dimensions: Approximately 380 mm x 285 mm x 175 mm.
Weight:8 kg (15 lbs) including accessories..
The Vickers EHA-TEQ-700-A-20 is an indispensable tool for professionals working with Vickers electro-hydraulic systems, providing the necessary functionalities to ensure system reliability and performance.
