Item Specifics:

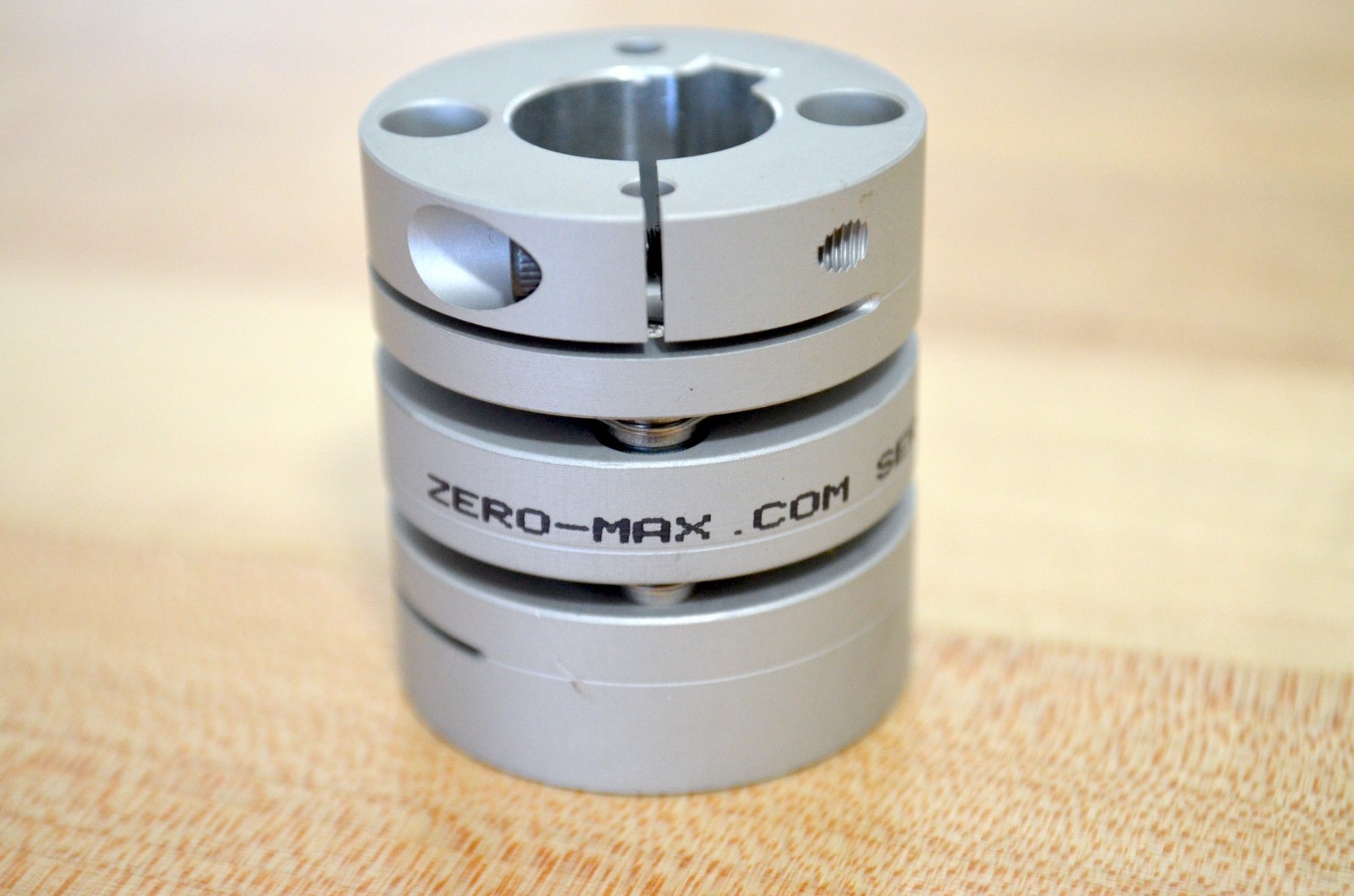

New Zero-Max SC030 ServoClass
Zero-Backlash Servo Motor Coupling
Bore = 16mm w/ 5mm Key x 12mm w/ 4mm Key
Outside Dimension = 34mm O.D. x 37.8mm L
*sale price is for 1 coupling, I have 14 available*
Item Description:
These are new Zero-Max ServoClass couplings in perfect condition.
They are model SC030 'double disc' couplings witha 16mm bore on
one end and a 12mm bore on the other end (both bores are keyed).
The outside dim's of the coupling are 34mm diameter x 37.8mm long.
Manufacturer Notes:
• For high performance servo motor and demanding motion controlapplications
• High torsional stiffness for use in precision positioning applications
• Eco-Friendly, adapted to RoHS Directive with no banned substances
• Low inertia for high speed applications
• Zero backlash and low hysteresis ensures repeatable precisepositioning
SC030R Spec's:
Part NumberSC030ROperating Torque:44 in-lbsMinimum Bore:0.1875 inchesMaximum Bore:0.625 inchesMaximum Speed:10,000 RPMTorsional Stiffness:618 in-lbs/degreeAxial Stiffness:183 lbs/inchParallel Misalignment:0.007 inchesAngular Misalignment:1 °Axial Misalignment:0.016 inchesInertia:See CatalogWeight:See CatalogOutside Diameter (D):1.339 inchesOverall Length (L):1.488 InchesHub Length (LB):0.488 InchesReduced Hub Diameter (N):0.850 InchesDistance Between Shaft Ends (DBSE):0.511"Inside Diameter of Flex Disc (K):0.571 InchesClamp Screw to Bore (A2):0.492 InchesClamp Screw to Bore (A1, Reduced Hub):0.315"Clamp Screw to End of Hub (C):0.148 InchesClamp Screw Size (M):M3Tightening Torque:13 in-lbs
