SOS-440-8Quantity: 1000

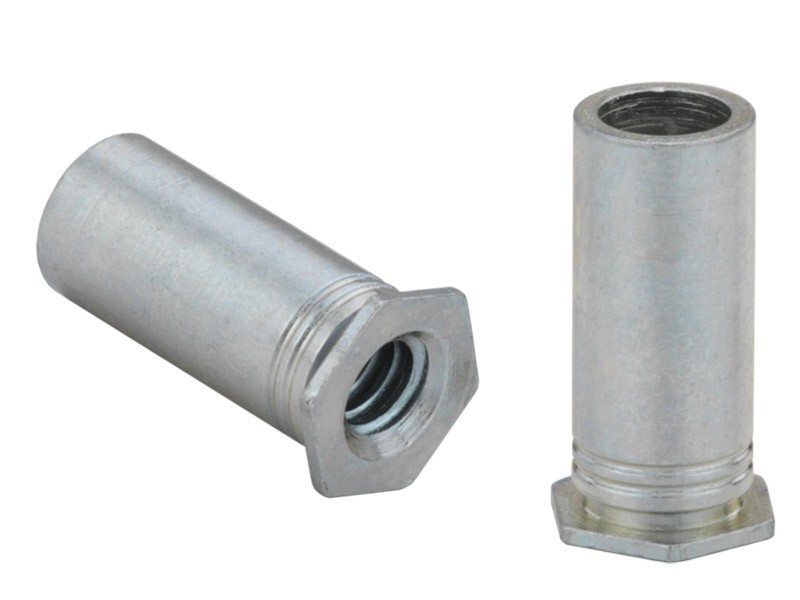

These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes – and become permanently mounted in the thin sheet.
PEM® brand thru-hole threaded standoffs are installed with their heads flush with one surface of the mounting sheet.
THREAD CODE440THREAD SIZE#4-40THREAD SPECIFICATION2B, ANSI B1.1, InternalFASTENER MATERIAL300 Series Stainless SteelMATERIAL CODESSTANDARD FINISHPassivated and/or tested, Passivated and/or tested per ASTM A380FOR USE IN SHEET HARDNESSHRB 70 / HB 125 or LessLENGTH CODE8PRODUCT CATEGORYThru-hole Threaded Standoffs – Types SO, SOA, SOSCAD SUPPLIERPennEngineering® (PEM®)CADPARTID103726APPLICATION TYPEAerospace, Automotive, Automotive Electronics, Commercial Vehicles, Datacom, Electric Vehicle Chargers, Electric Vehicles, Electronics, Industrial, Manufacturing & Sheet Metal Fabrication, Marine, Medical, Renewable Energy, TelecomBASE PANEL MATERIALAluminum, SteelBRANDPEMFASTENER CHARACTERISTICSThreaded InternalINDUSTRYAutomotive Electronics, Datacom & Telecom, Electic Vehicles, Industrial & Commercial, MedicalINSTALLATION EQUIPMENT/METHODC-Frame Automatic Feed, C-Frame Manual FeedPEM PRODUCT FAMILYSOPRODUCT TYPEStandoffsTECHNOLOGY TYPESelf-ClinchingUNIT (METRIC/UNIFIED)UnifiedB – COUNTER-BORE DIA. ± .005_IN.125inC + .000 – .005_IN.165inH NOM._IN.187inHOLE SIZE IN SHEET + .003 – .000_IN.166inL – LENGTH +.002 –.005_IN.250inMIN. DIST. HOLE C/L TO EDGE_IN.23inMIN. SHEET THICKNESS_IN.040in
