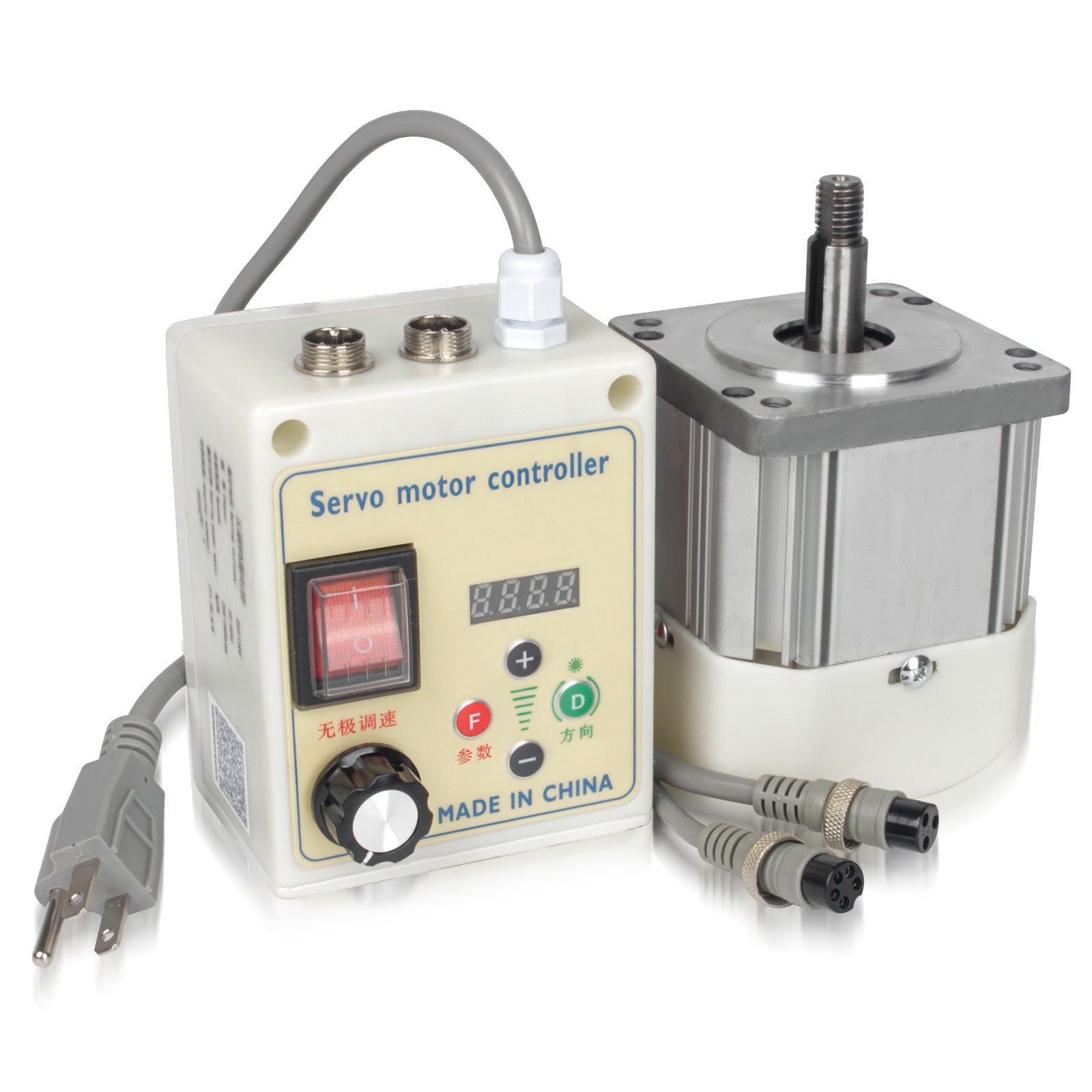

【USA Stock & Fast shipping】〖US〗2.2KW 1.5KW 1.1KW 550W 750W 110V AC Brushless Servo Motor CNC Controller KitAC Permanent Magnet Brushless Servo Motor Kit
Good New:
Wehave USA Warehousein United States,so we will ship this item from USA Warehouse to you.
Package include (110V Version)
- 1 x Brushless AC servo motor (550W /750W /1100W/1500W / 2200W )
- 1 x Servo motor controller
- 1 x Pdf. english user manual
Product weight (including packaging):550W kit: 2.8kg/6.1 lb750W kit: 3.1kg/6.8 lb1100W kit: 3.8kg/8.3 lb1500W kit: 4.7kg/10.3 lb2200W kit: 5.2kg/11.4 lb
Widely compatible with belt sander, polishing machine, small lathe, milling machine, drilling & tapping machine, woodworking machinery, sewing equipment, CNC engraving machine, supports synchronous pulleys and ER collets installation
- 69mm mounting hole
- 89mm flange size
- Diameter 15mm output shaft
- 30mm+15mm output shaft length
- M6 through-hole mounting threads
- 5x5x20mm keyway
- Direct fit for most small machinery without modification
Product Parameters
- Rated Power: 550W
- Rated Voltage: AC 110V, 50-60Hz
- Rated Torque: 1.85N.m
- Speed Range: 200-7000 RPM
- Motor Pole Pairs: 8 Pairs
- Insulation Class: F Class
- Mounting Size: 69mm/2.71inch
- Mounting Flange: 89mm/3.50inch
- Output Shaft Diameter: 15mm/0.59inch; Thread Shaft Diameter: 10mm/0.39inch
- Body length: 110mm/4.33inch
- Output Shaft Length: 30+15mm/1.18+0.59inch
- Mounting Thread: M6 Through Hole
- Keyway Size: 5x5x20mm/0.20x0.20x0.79inch
- Control Method: Knob Speed Adjustment
- The threaded shaft fits synchronous pulleys, V-belt pulleys and ER special collets, no extra modification needed for most small machinery
Product Parameters
- Rated Power: 750W
- Rated Voltage: AC 110V, 50-60Hz
- Rated Torque: 2.62N.m
- Speed Range: 200-6500 RPM
- Motor Pole Pairs: 8 Pairs
- Insulation Class: F Class
- Mounting Size: 69mm/2.71 inch
- Mounting Flange: 89mm/3.50 inch
- Output Shaft Diameter: 15mm/0.59 inch
- Thread Shaft Diameter: 10mm/0.39 inch
- Body length: 110mm/4.33 inch
- Output Shaft Length: 30mm+15mm/1.18 inch+0.59 inch
- Mounting Thread: M6 Through Hole
- Keyway Size: 5x5x20mm/0.20x0.20x0.79 inch
- Control Method: Knob Speed Adjustment
Product Parameters
Rated Power: 1100W
Rated Voltage: AC 110V, 50-60Hz
Rated Torque: 3.55N.m
Speed Range: 200-6000 RPM
Motor Pole Pairs: 8 Pairs
Insulation Class: F Class
Mounting Size: 69mm/2.71inch
Mounting Flange: 89mm/3.50inch
Output Shaft Diameter: 15mm/0.59inch
Thread Shaft Diameter: 10mm/0.39inch
Body length: 130mm/5.12inch
Output Shaft Length: 27+15mm/1.06+0.59inch
Mounting Thread: M6 Through Hole
Keyway Size: 5x5x20mm/0.20x0.20x0.79inch
Control Method: Knob Speed Adjustment
Integrated 4-layer protection mode
- Overcurrent
- Overvoltage
- Short circuit
- Locked rotor protection
- Effectively avoiding equipment damage from overload or abnormal operation
Multi Functional Controller
- Intuitive control panel with digital display (real-time display of parameter code and parameter value)
- One-key CW/CCW rotation direction switching via D key
- Speed regulation with +/− keys (increase/decrease motor speed and parameter values)
- Adjustable soft start (configurable start speed) and adjustable stop performance (configurable stop time and brake function)
- 8 selectable start modes (switchable via programmable technician mode)
- Configurable technician mode parameters: start speed, acceleration rate, braking enable, stop time, reverse speed, maximum current limit
- Simple 5-step parameter setting procedure for technician mode
- F key with error recovery function (for error reset)
- One-key factory reset function (quick restoration of default parameters)
Durability & Multi-Protection mode
- Built with high-strength aluminum alloy head and pure copper winding
- Features 360° grille air outlet for efficient heat dissipation,
- Built-in filter for strong anti-interference ability and low operating noise
Product Parameters
- Rated Power: 1500W
- Rated Voltage: AC 110V, 50-60Hz
- Rated Torque: 5.02N.m
- Speed Range: 200-5000 RPM
- Motor Pole Pairs: 8 Pairs
- Insulation Class: F Class
- Mounting Size: 69mm/2.71inch
- Mounting Flange: 89mm/3.50inch
- Output Shaft Diameter: 15mm/0.59inch
- Thread Shaft Diameter: 10mm/0.39inch
- Body length: 150mm/5.91inch
- Output Shaft Length: 27+15mm/1.06+0.59inch
- Mounting Thread: M6 Through Hole
- Keyway Size: 5x5x20mm/0.20x0.20x0.79inch
- Control Method: Knob Speed Adjustment
Product Parameters
- Rated Power: 2200W
- Rated Voltage: AC 110V, 50-60Hz
- Rated Torque: 6.85N.m
- Speed Range: 200-4500 RPM
- Motor Pole Pairs: 8 Pairs
- Insulation Class: F Class
- Mounting Size: 69mm/2.71inch
- Mounting Flange: 89mm/3.50inch
- Output Shaft Diameter: 15mm/0.59inch
- Thread Shaft Diameter: 10mm/0.39inch
- Body length: 150mm/5.91inch
- Output Shaft Length: 27+15mm/1.06+0.59inch
- Mounting Thread: M6 Through Hole
- Keyway Size: 5x5x20mm/0.20x0.20x0.79inch
- Control Method: Knob Speed Adjustment
Durability & Multi-Protection mode
- Built with high-strength aluminum alloy head and pure copper winding
- Features 360° grille air outlet for efficient heat dissipation,
- Built-in filter for strong anti-interference ability and low operating noise
Integrated 4-layer protection mode
- Overcurrent
- Overvoltage
- Short circuit
- Locked rotor protection
- Effectively avoiding equipment damage from overload or abnormal operation
Multi Functional Controller
- Intuitive control panel with digital display (real-time display of parameter code and parameter value)
- One-key CW/CCW rotation direction switching via D key
- Speed regulation with +/− keys (increase/decrease motor speed and parameter values)
- Adjustable soft start (configurable start speed) and adjustable stop performance (configurable stop time and brake function)
- 8 selectable start modes (switchable via programmable technician mode)
- Configurable technician mode parameters: start speed, acceleration rate, braking enable, stop time, reverse speed, maximum current limit
- Simple 5-step parameter setting procedure for technician mode
- F key with error recovery function (for error reset)
- One-key factory reset function (quick restoration of default parameters)
Purpose of each button:
F : Enter parameter combination key; combined with other keys to enter parameter setting mode, error recovery key
D : Direction switching; main function is to switch rotation directions and confirm parameter settings
+ : Increase motor speed; parameter and index value increase key
- : Reduce motor speed; parameter and index value decrease key
Adjustment method for technician mode parameters:
a) Press and hold the \"F\" key, and the screen will display P-00;
b) Press the \"+\" or \"-\" keys to adjust to the required parameter number;
c) Press the \"F\" key to enter the parameter interface, and the screen will display the current parameter value;
d) Press the \"+\" or \"-\" keys to adjust to the desired parameter value;
e) Press the \"D\" key to save the parameters and exit the interface.
Restore factory settings:
While holding down the \"F\" key, press the \"+\" key once, and the screen will display P-00. Then hold down the \"D\" key for 3 seconds and release it (Do not restore unless necessary).
Technician Mode Parameter Table
P-02 Motor Direction: 0=CCW/1=CW | Factory:1
P-04 Starting Speed: 100-800rpm | Factory:250
P-05 Acceleration Rate: 2-60 | Factory:10
P-07 Start Mode: 0-8 | Factory:0 [0=Knob/1=Key/2=Knob+Key speed-P13)/5=Switch+CW/CCW(Same speed)/6=Switch+CW/CCW(Knob speed)/7=2-gear Switch(Double speed)/8=Switch Start+Knob Speed]
P-08 Brake Enable: 0=Off/1=On | Factory:0
P-10 Auto Run-in: 0=Normal/1=Auto | Factory:0 | Stop on power off
P-12 Stop Time: 4-120 | Factory:5 | Smaller=Faster stop/Larger=Slower stop
P-13 Reverse Speed: 100-9000rpm | Factory:2000
P-14 Max Current Limit: 300-600 | Factory:350
