【US】Milling Machine Cooling Spray Pump Mist Sprayer Coolant System YS-BPV-3000 For Sale

Good News:

• We have US Warehousein United States,so we will ship this machine from US Warehouse to you.

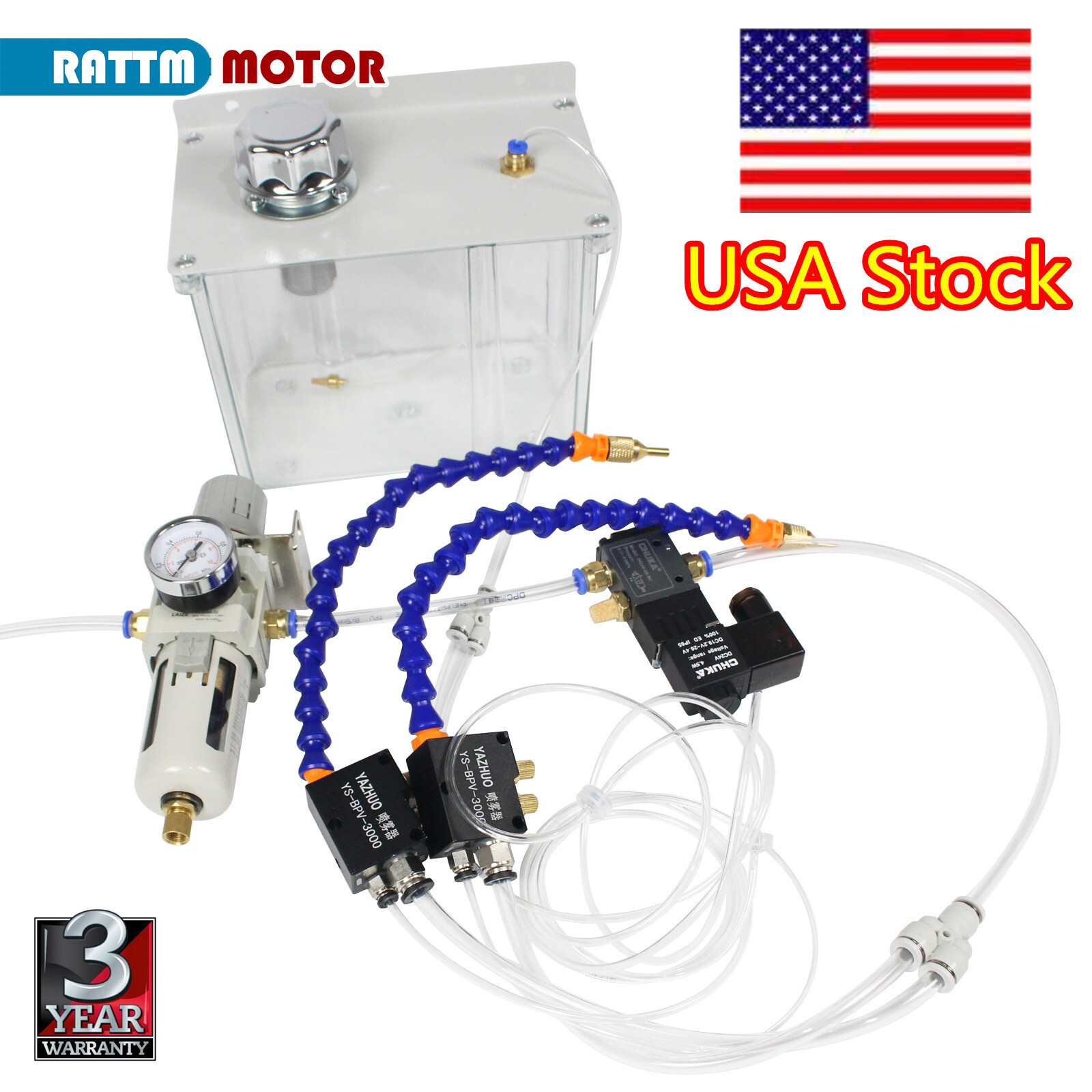

Parcel included:

• 2x YS-BPV-3000 blue color cooling sprayers
• 1x 3L Water/oil tank
• 1x 24V Solenoid valve
• 1x Air filter regulator
• 1x 5m air tube
• 2x 4mm water pipe 1.65M length
• 1 set of connectors

Descriptions:

• ♞【Two YS-BPV-3000 cooling spray】Air flow and spray mist volume adjustable design, can save the cooling liquid,easier to use;Adopting copper joints,the joints are designed with anti slip design for easy use and durability;The universal joint has good performance and can be easily twisted and fixed,with a copper nozzle that is waterproof and dustproof.

• ♞【3L Water/oil tank】The material is industrial grade resin, which is corrosion-resistant, acid and alkali resistant, and resistant to collision and extrusion;With box cover and filter screen;Sprayable Media:Water,alcohol,coolant,engine oil,kerosene,cooking oil,cutting fluid,saponification liquid,diesel oil

• ♞【2 Position 3 Way Solenoid Valve】Voltage:DC24V;Air Port Inlet/Outlet size:PT1/4\"; Working Pressure:21~114Psi (0.15-0.8MPa);It adopts an aluminum alloy valve body, with imported sealing parts,and the red copper foot turn coil has strong heat resistance and supports long-term electrification,and the high-frequency pilot head responds 5 times per second with high sensitivity.

• ♞【Air Filter Regulator】Air Port Inlet/Outlet size:1/4\"; Precise pressure regulation, efficient filtration, fine threads, all copper drainage port, precision instrument, using standardized module design, high-quality precision filter element.

• ♞【Wide Application】The mist coolant lubrication spray system is suitable for cooling and lubrication of lathes, milling machines, grinding machines, tapping machines, grinding equipment, CNC machining centers, sawing machines, woodworking equipment, feeders,Aluminum processing machinery, drilling,and other equipment.

3L Water/oil tank

• The material is industrial grade resin,which is corrosion-resistant,acid and alkali resistant,and resistant to collision and extrusion;
• With box cover and filter screen;

YS-BPV-3000 cooling spray

• Air flow and spray mist volume adjustable design, can save the cooling liquid,easier to use;
• Adopting copper joints,the joints are designed with anti slip design for easy use and durability;
• The universal joint has good performance and can be easily twisted and fixed,with a copper nozzle that is waterproof and dustproof.

Air Filter Regulator

• Air Port Inlet/Outlet size:1/4\"
• Precise pressure regulation,efficient filtration,fine threads
• All copper drainage port
• Precision instrument,using standardized module design
• High-quality precision filter element

Notice:

• Please strictly follow the signs when installing the air intake

2 Position 3 Way Solenoid Valve

• Voltage: DC24V
• Air Port Inlet/Outlet size: PT1/4\"
• Working Pressure: 21~114Psi (0.15-0.8MPa)
• Body material: aluminum alloy
• Working temperature: -20 ℃-70 ℃
• Working medium: air (filtered through a filter screen of over 40μm)

Feature:

• It adopts an aluminum alloy valve body
• With imported sealing parts
• The red copper foot turn coil has strong heat resistance
• Supports long-term electrification
• The high-frequency pilot head responds 5 times per second with high sensitivity

Sprayable Media

• Water,alcohol,coolant,engine oil,kerosene,cooking oil,cutting fluid,saponification liquid,diesel oil etc

Wide Applications:

• The mist coolant lubrication spray system is suitable for cooling and lubrication of lathes, milling machines, grinding machines, tapping machines, grinding equipment, CNC machining centers, sawing machines, woodworking equipment, feeders,Aluminum processing machinery, drilling,and other equipment.
