WELCOME~Welcome to our store (*^▽^*)
Description

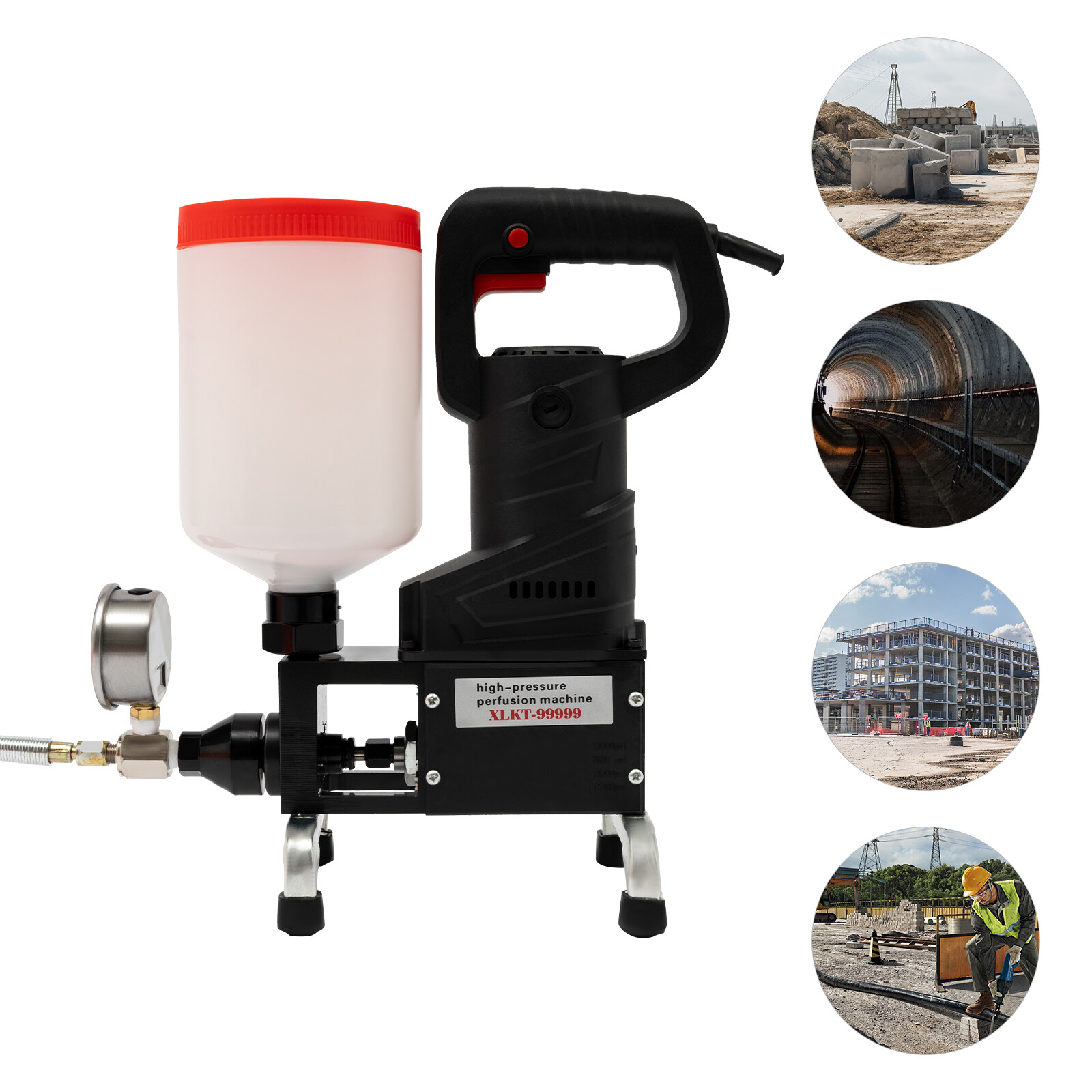

Our grouting machine uses high-quality materials and has a safe working pressure of up to 7111.67psi, which can achieve efficient and high-quality grouting work, saving you time and making your work easier. This product is an ideal tool for both construction projects and home leak repair.
Key Features
Build to Last: This product is made of high-quality ABS, alloy steel, and rubber. After injection molding treatment, it is not easy to rust, corrode, deform, or fade, and can maintain superior performance for a long time.
High Efficiency: The 1100W pure copper motor, combined with enlarged and thickened gears and transmission shaft, runs faster, can generate a maximum safe operating pressure of 7111.67psi and effectively fills the micro-gaps, micro-seams, micro-pores and capillaries within the concrete structure. The flow rate can reach 79.37lbs/h, which can quickly complete grouting work and improve work efficiency.
Multi-functional: You can complete plugging grouting, consolidation grouting, crack reinforcement grouting by one machine, which is economical and practical.
Worry-free Operation: The 1.32-gallon large barrel allows you to mix enough grouting materials at once without the need for frequent adding, saving time and effort. The semi-transparent barrel allows you to pay attention to the amount of remaining material and add it promptly. It can directly grouting concrete using the grouting nozzle, without digging grooves or burying pipes, and without damaging the structure.
Good Sealing: There are multiple sealing rings on the pump and the sealing tape, which can prevent air from entering, ensure stable pressure generation, achieve stable discharge, and ensure the quality of grouting work.
Easy to Maintain: This product features an external carbon brush design and comes with two carbon brushes inside the package. You can replace them when needed, making maintenance quick and easy.
Good Heat Dissipation: Its driving device has large ventilation openings on both the top and bottom, which allows the motor to dissipate heat timely and extend the product's service life.
Safe Use: The high-pressure gauge has clearly marked the safe pressure range for you, allowing you to clearly observe the pressure situation and prevent overpressure, making it safer to use.
Ready to Use: The machine you receive is the complete machine, just connect the high-pressure pipe and gun head to start using, convenient and fast.
Details
Rubber Foot Pads: They can make the product stand more stable during operation.
Long Power Cord & Pipe: The 9.84-foot power cord and 15.75-foot high-pressure pipe allow you to operate this product more flexibly and use it more freely.
Application
This product can be applied to the repair of concrete cracks and waterproofing in places such as subways, airports, pipeline engineering, tunnel engineering, water conservancy engineering, residential buildings, bathrooms, bathrooms, kitchens, windowsills, balconies, bridges, elevated structures, highways, basements, rooftops, garages, etc.
How to Install
The steps are for reference only and can be determined based on the actual situation of the construction site:
- Clean the surface and locate the leakage point.
- Drill a hole along the 0.79-3.15 inch area on both sides of the leak point crack using a 0.57-inch drill bit (not included).
- After placing the water stop needle, use the T-shaped wrench to tighten it, usually embedding 1.57-2.36 inches, and then embedding a needle every 1.97-7.87 inches.
- Add grouting material to the material under power outage.
- Before starting the filling process, open the gun head valve first
- Use the gun head to inject grout into the borehole until it overflows.
- After at least 48 hours, the needle and excess grouting material can be XLKT-9999
Material: ABS, Alloy Steel, Rubber
Process: Injection Molding
Color: Black
Mount Type: Floor Mounted
Assembly Required: No
Motor Type: Brushed Pure Copper Motor
Barrel Capacity: 5L/1.32gal
Plug Type: US Standard
Power Supply: Corded Electric
Voltage: 110V
Power: 1100W
Pressure Range: Pipe Safety Pressure: 0-500kg/cm²/7111.6psi
Switch Valve Safety Pressure Rate: 36 kg/79.37lbs/h
Power Cord Length: Approx. 3m/9.84ft
High-Pressure Pipe Length: 4.8m/15.75ft
Package Size: 45*40*20cm/17.7*15.7*7.8in
Gross Weight: 10kg/22lbs
Net Weight: 8kg/17.64lbs
Package Included
1 * Grouting Machine
1 * Grouting Gun
1 * High Pressure Pipe
1 * T-Shaped Wrench
1 Pair * Gloves
1 Pair * Goggles
2 * Carbon Brushes
Other Accessories for Assembly
Notes
- It is recommended to use professional matching grouting materials, such as water-soluble polyurethane rubber plugs, oil-soluble polyurethane rubber plugs, epoxy resin, acrylic ester, and other low-viscosity liquid materials (all are not included), to ensure quality.
- When assembling the high-pressure pipe and connecting rod to the product, please wrap it with sealing tape to prevent leakage and blockage.
- After you receive the product, tighten the screws in each position first. Using edible or engine oil (not included) for a test run is strictly required. Because the slurry injected by the product cannot come into contact with water, cleaning or testing the machine with water is strictly prohibited.
- Please occasionally loosen the switch when using the product, do not keep pressing the switch, and be careful not to exceed the yellow area on the high pressure gauge. Turn on the gun head first before turning on the machine.
- When grouting, please wear gloves, goggles (included), work clothes, and rain boots (not included) to prevent the grout from splashing onto the skin and accidentally coming into contact with the grout when using. Immediately rinse with plenty of water and seek medical attention if the accidents occur.
- After use or during maintenance, please immediately clean and wipe the machine with a diluent (such as engine oil, not included). Pour the diluent into the barrel, clean the barrel with the gun head, and cycle the cleaning several times by turning on the product to ensure complete cleaning. After draining the diluent, pour in engine oil (not included) and lubricate the product using the same method.
- Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
