Features:

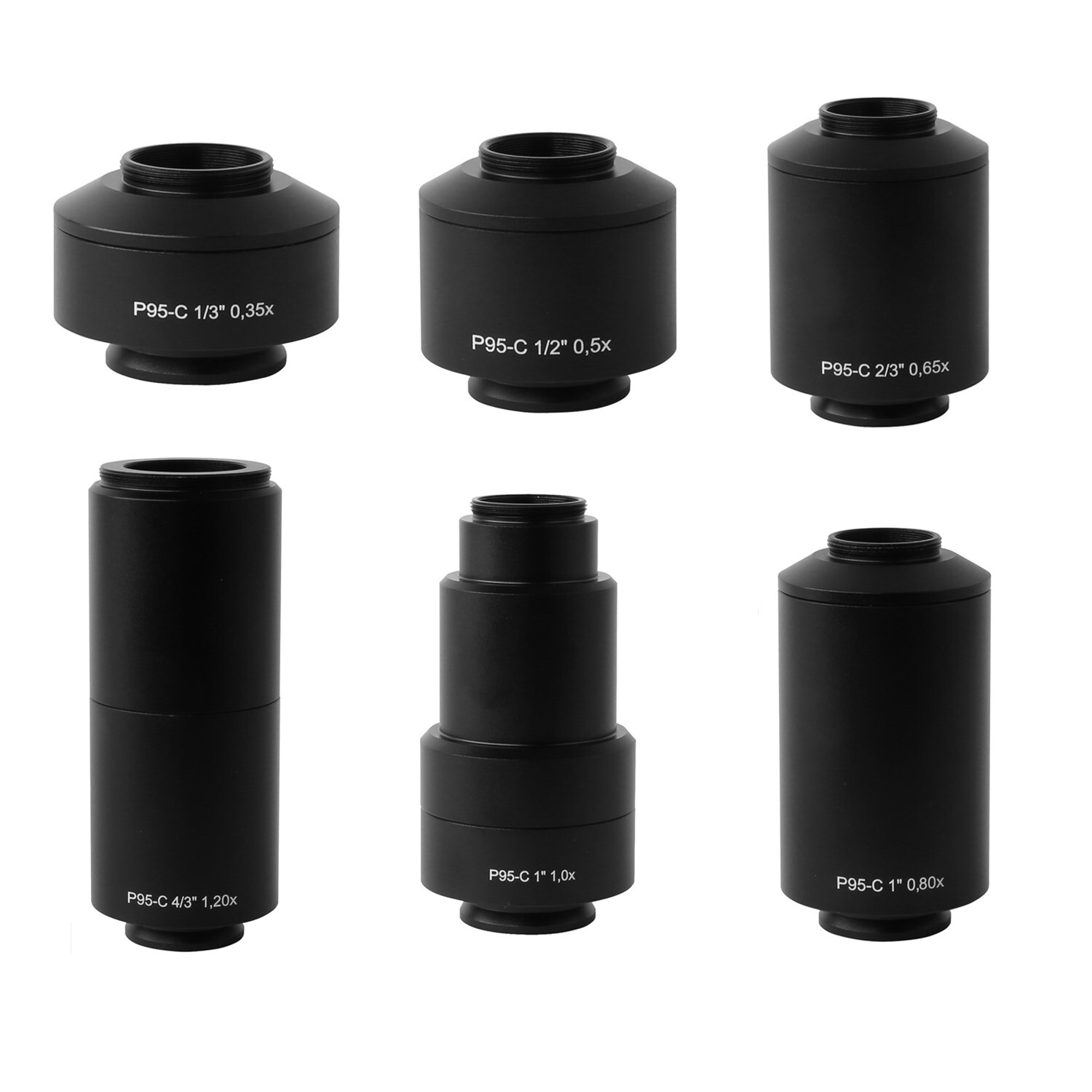

1.Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch)outer diameter for the insertion end to phototube) to traditional C Mount type (25.4 mm or 1 inch diameter with 32 threads per inch);
2.With different built-in reduction lens (1.2X,1X, 0.8X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
3.Can be installed in Zeiss UIS trinocular tube such as:
4.Zeiss PrimoStar series and Zeiss Primo vert series
5.Build of material: anodized aluminum;
6.Telecentric optics with low light deficiency;
7.Parfocal with different microscope objective lenses;
8.Diffraction limited MTF;
9.Aperture totally coupled with UIS microscope objective’s exit pupil
Model
Magnification
Sensor Size
Mount Type
P95-T2 1.2x
1.2X
1”, 4/3”
M42-Mount
P95-C 1” 1.0x
1X
1”, 2/3”
C-Mount
P95-C 1” 0.8x
0.8X
1”,2/3”
C-Mount
P95-C 2/3” 0.65x
0.65X
2/3”,1/1.8”,1/2”
C-Mount
P95-C 1/2” 0.50x
0.5X
C-Mount
P95-C 1/3” 0.35x
0.35X
1/3”,1/4”，1/5”
C-Mount
Support Microscope
Specially designed for Zeiss Primo Star series , Zeiss Primo vert series
