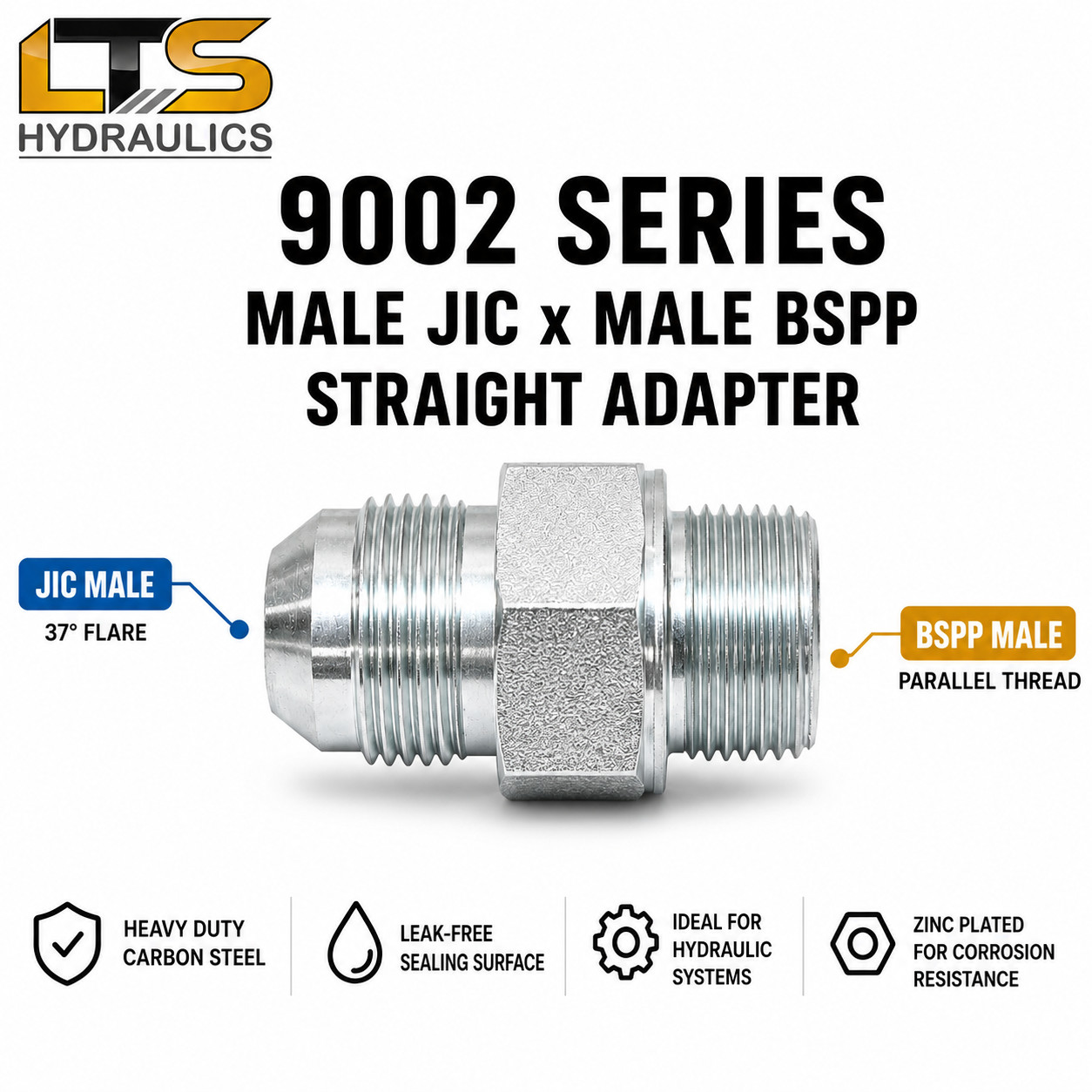

9002 Series Hydraulic AdapterMale JIC 37° x Male BSPP Straight Adapter
These 9002 Series hydraulic adapters connect a Male JIC 37° flare connection to a Male BSPP (British Standard Pipe Parallel) connection in a straight configuration.
They are commonly used when adapting American JIC hydraulic hose ends or fittings to BSPP ports found on imported equipment, hydraulic control valves, pumps, cylinders, and industrial hydraulic systems.
The BSPP side uses a parallel thread and includes a 90 durometer O-ring and retaining ring for sealing where applicable. BSPP is not tapered pipe thread like NPT, so correct port style and sealing method matter.
Available Sizes
The first dash size is the Male JIC side.
The second dash size is the Male BSPP side.
Example:
9002-06-08 = #06 Male JIC x #08 Male BSPP
Product Features
- 9002 Series straight hydraulic adapter
- Male JIC 37° flare x Male BSPP
- Carbon steel construction
- Trivalent zinc plated finish
- 90 durometer O-ring included
- Retaining ring included
- Straight adapter design
- Designed for hydraulic and industrial service
Product Specifications
- Series: 9002
- Connection 1: Male JIC 37° flare
- Connection 2: Male BSPP / British Standard Pipe Parallel
- Material: Carbon steel
- Finish: Trivalent zinc plating
- BSPP Seal Components: 90 durometer O-ring and retaining ring included
- Application: Hydraulic systems, imported equipment, valves, pumps, cylinders, and hose assemblies
Important Fitment Information
Please verify your fitting before ordering.
This adapter has:
- Male JIC 37° flare on one side
- Male BSPP parallel thread on the other side
BSPP and NPT can look similar, but they are not the same.
- BSPP uses straight/parallel threads
- NPT uses tapered pipe threads
- BSPP connections often seal with an O-ring, bonded seal, washer, cone, or port face rather than the threads themselves
Do not order based only on outside diameter. Confirm:
- JIC dash size
- BSPP dash size
- thread pitch
- port style
- sealing surface
- O-ring/retaining-ring arrangement
Common Applications
These adapters are commonly used on:
- Hydraulic control valves
- Imported machinery
- Compact tractors and agricultural equipment
- Hydraulic power units
- Pumps and motors
- Industrial equipment
- Mobile hydraulic systems
- Hose conversion and repair work
Some 9002 sizes are commonly used when adapting certain imported hydraulic control valves to JIC hose connections. Always verify the actual port size before ordering.
What You Will Receive
You will receive:
- One (1) 9002 Series hydraulic adapter
- 90 durometer O-ring
- Retaining ring
Unless otherwise stated, quantity is one fitting.
