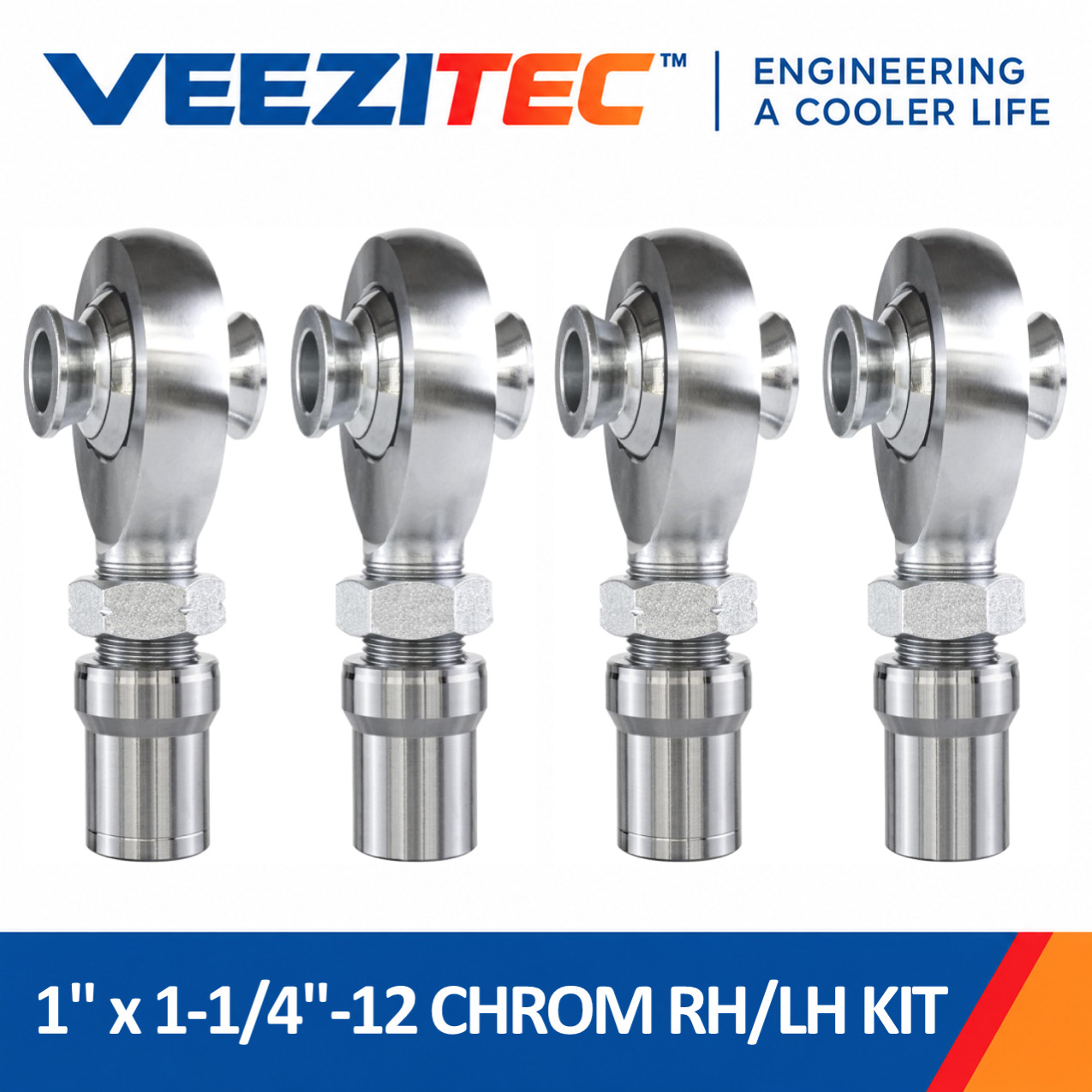

VEEZITEC Heavy Duty Chromoly Heim Joint Kit (2 Pairs) VEEZITEC™ Engineering a Cooler Life 1.25\" Chromoly Heim Joint Kit (1-1/4\"-12 Thread & 1\'\' bore) — 2 Pairs Set Technical Specifications Series XM Chromoly Heavy Duty Series (XM-16) Bore Size 1.000\" (1 Inch) Ball Width 1.375\" Thread Pitch & Size 1-1/4\" - 12 TPI (UNF) Radial Static Load 76,200 lbs (Each) Thread Orientation 2 Pairs (2x Left-Hand & 2x Right-Hand Threads) High Misalignment Spacers Reduces 1\" Bore down to 3/4\" Bolt Size (8x Included) Tube Adapter Dimensions 1.75\" Height × 1.75\" Width (Fits 1.75\" OD × 0.120\" Wall Tubing) Jam Nuts 1-1/4\"-12 Heavy Duty Jam Nuts (2x LH, 2x RH) Material & Construction Heim Joint Body Heat-Treated 4135 Chromoly Steel (Protective Plated Finish) Ball / Bore Material 52100 Hardened Bearing Steel (Hard Chrome Plated) Liner / Self-Lubrication PTFE & Nylon Composite Liner (Self-Lubricating / Maintenance-Free) Tube Adapter (Weld-In Bung) 1045 Carbon Steel Jam Nuts 1045 Carbon Steel High Misalignment Spacers (HMS) 1045 Carbon Steel (Zinc Plated Finish) Package Includes (2 Pairs Set) 4x Chromoly Heim Joints 1\" Bore / 1-1/4\"-12 Shank (2 Left Hand, 2 Right Hand) 8x High Misalignment Spacers Step-down from 1\" Bore to 3/4\" Bolt 4x Weld-In Tube Adapters 1.75\" H × 1.75\" W (Fits 1.75\" OD × 0.120\" Wall Tubing - 2 LH, 2 RH) 4x Jam Nuts 1-1/4\"-12 Heavy Duty Jam Nuts (2 LH, 2 RH) VEEZITEC™ XM-Series Specifications Chart
Designed for heavy-duty 4-link suspensions, steering linkages, and off-road applications. Need custom sizes, individual components, or technical assistance? Contact us via message.
Store Policy RETURN POLICY
We offer a 30-Day Free Return & Replacement policy.
If you ordered the wrong size or need a different model, our technical team is here to assist with a quick Replacement to get your project back on track. All returns must be in original, unused condition with all packaging included.
Need custom sizes, bulk orders, or technical support?
Contact us anytime via message — our engineering team is here to help!
VEEZITEC™ — HEAVY-DUTY PRECISION COMPONENTS
