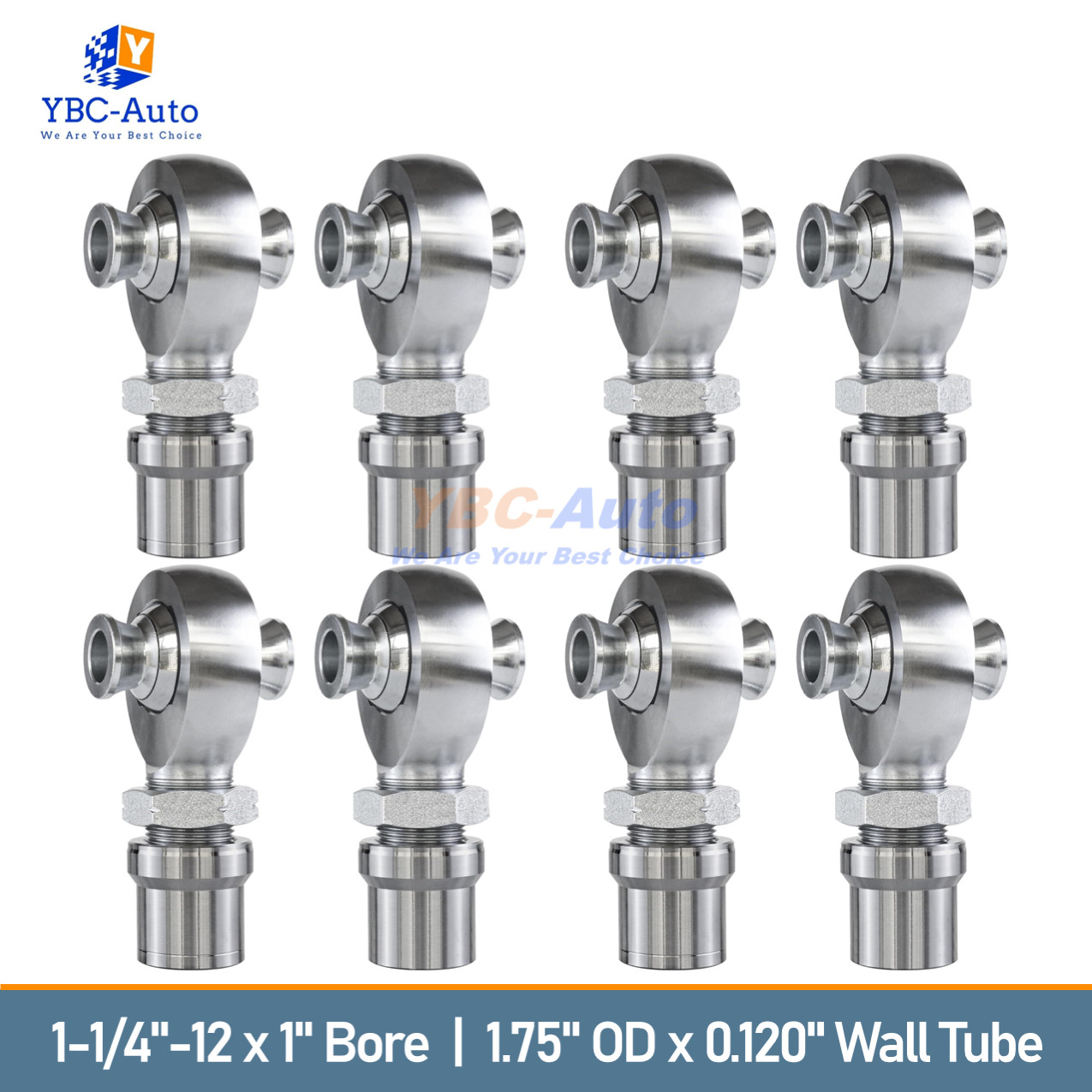

Heavy-Duty 1.25" Rod End Heim Joint Kit - 4 Pairs YBC-Auto Pro-Industrial Series
Premium Heat-Treated Chromoly | 8 Pack Complete Master Set (4 LH / 4 RH)
Brand Information 1. YBC-Auto offers parts and accessories for the perfect combination of quality and value.
2. YBC-Auto offers cost-conscious customers a full range of parts to a broad range of application.
3. Manufactured in ISO 9000 / ISO 9001 / ISO 9002 certified facilities gives the fit, performance reliability and durability of OE. Product Overview 4 PAIRS / 8-PACK COMPLETION KIT
Engineered for extreme off-road, racing, and heavy-duty chassis applications, this premium 1-1/4" Heim Joint 4-Pair Kit provides exceptional strength and articulation. Built with heat-treated Chromoly Steel and hard chrome plating, it is designed to endure maximum stress environments while delivering smooth, precise pivot performance for full 4-link suspension rebuilds or custom professional fabrication.
Technical Specifications 1. Chromoly Rod Ends (4x XML16 & 4x XMR16)
- Premium Build: Heat-treated Chromoly Body with Hard Chrome Plated finish and Loader Slot.
- High Capacity: Massive load rating up to 72,000 lbs per joint for ultimate failure resistance.
Total Quantity: 8 PCS (4x Right Hand, 4x Left Hand) Thread Size: 1-1/4" -12 TPI Ball Bore: 1.00" Ball Width: 1-3/8" (1.375") Centerline Length: 4.125" Thread Length: 2.125" Load Capacity: 72,000 lbs Static Load Rating 2. Weld-In Blunt Bungs (Tube Adapters) Total Quantity: 8 PCS (4x Right Hand, 4x Left Hand) Material Type: Heavy-Duty Carbon Steel Internal Thread: 1-1/4" -12 TPI Tube Compatibility: Fits 1.75" OD x 0.120" Wall Tube (Approx. 1.51" ID) 3. High Misalignment Spacers (HMS16-12) Total Quantity: 16 PCS (Silver Zinc Plated) Material Type: Premium Carbon Steel Insert Diameter: 1.00" (Fits Rod End Ball) Inside Bore: 0.75" (Bolt Size) Outside Boss Dia: 1.25" Overall Length: 2.625" (When installed in ball) RETURN POLICY We offer a 30-Day Free Return & Replacement policy.
If you ordered the wrong size or need a different model, our technical team is here to assist with a quick Replacement to get your project back on track.
All returns must be in original, unused condition with all packaging included.
Installation Note: Professional welding and alignment are highly recommended for all suspension and fabrication components to ensure safety and structural integrity.
