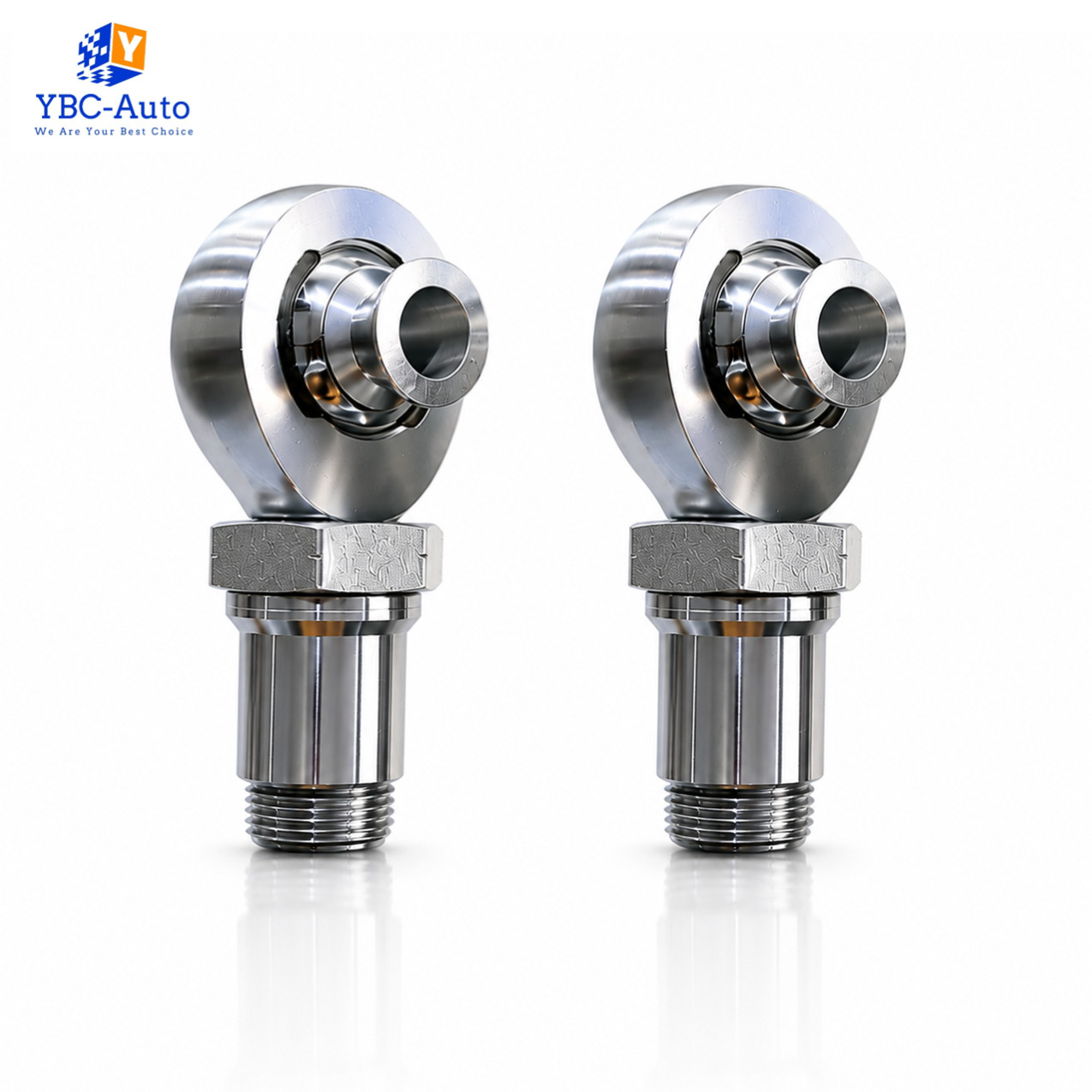

1.25\" Chromoly Heim Joint Master Kit (1 Pair) YBC-Auto | We Are Your Best Choice
Extreme-Duty Performance | Precision Engineered for Off-Road Mastery
Package Contents (8-Piece Set) COMPLETE LEFT & RIGHT HAND PAIR
- 2x Chromoly Rod Ends (1x XML16 RH / 1x XMR16 LH)
- 2x Steel Weld-In Bungs (Fits 1.75\" OD x .120\" Wall Tube)
- 2x Heavy Duty Jam Nuts (1-1/4\"-12 RH & LH)
- 4x High Misalignment Spacers (1\" Ball to 3/4\" Bolt Hole)
💪 72,000 LBS Load Rating:
Forged from Heat-Treated Chromoly Steel. Hard chrome plated ball and loader slot design ensure maximum durability for rock crawling and desert racing.
Technical Specifications ROD ENDS: XML16 & XMR16 Housing MaterialHeat Treated Chromoly Steel (Hard Chrome Plated) Thread Size1-1/4\" - 12 (Male) Ball Bore / Width1\" ID / 1.375\" Ball Width Static Load Rating72,000 lbs WELD-IN BUNGS & JAM NUTS Tubing FitmentFits 1.75\" OD x .120\" Wall (1.5\" ID) Steel Pipe Bung MaterialPrecision Machined Carbon Steel Jam Nuts2pcs Matched RH/LH Included MISALIGNMENT SPACERS: HMS16-12 FunctionReduces 1\" Ball Bore to 3/4\" Bolt Hole MaterialCarbon Steel with Silver Zinc Finish BenefitGreatly increases articulation for extreme suspension travel. Why Choose YBC-Auto?
- Certified Quality: Manufactured in ISO 9000/9001/9002 facilities for ultimate performance and OE-level reliability.
- Professional Value: We specialize in providing race-grade components for cost-conscious fabricators without compromising strength.
- Application Ready: Perfect for heavy-duty steering links, Panhard bars, and custom 4-link rear suspensions.
Store Policies Shipping: Fast & Free Shipping from our US warehouse. Orders are processed within 24 hours. Return Policy:
We offer a 30-Day Free Return & Replacement policy. If you ordered the wrong size or need a different model, our technical team is here to assist with a quick replacement to get your project back on track. All returns must be in original, unused condition with all packaging included.
YBC-Auto | We Are Your Best Choice
Industrial Strength • Racing Precision • US Direct Support
