Item Description:
Qty: 10

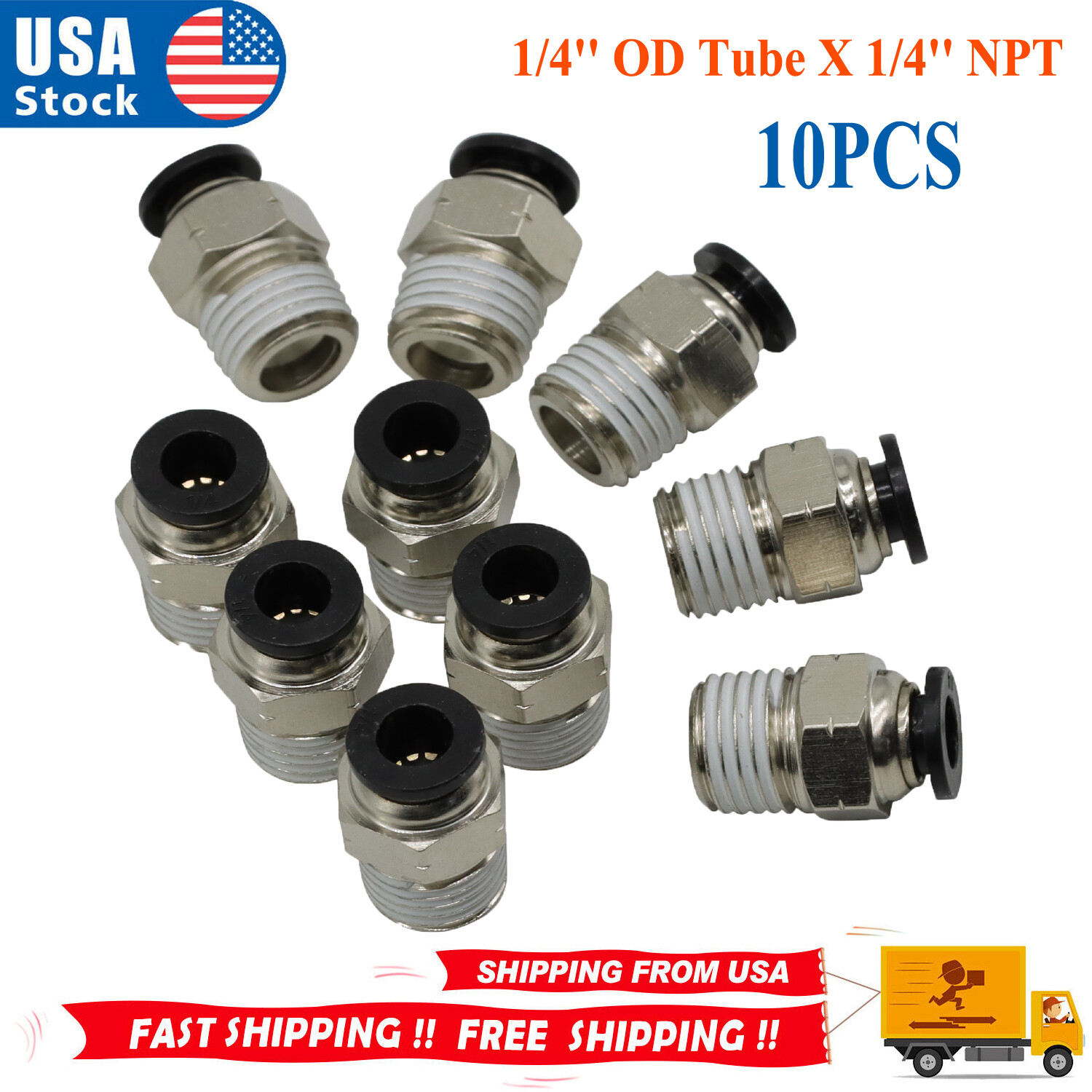

Type: Push To Connect Straight Fitting
Material: Nickel Plated Brass Threads and Body
Thread Size: 1/4" NPT (actual thread outside diameter is 0.405")
Tube Size: 1/4" Outside Diameter
Hex Sized For 1/2" Wrench
Operating Pressure: 0-150 PSI, 0-1.0MPA
Vacuum: 0-29.5 in Hg, 750 mm Hg
Threads Have Sealant, No Taping Needed
Made For: 1/4 Inch "Outside Diameter" Tubing
(Tubing Outside Diameter Must Be 1/4 Inch) NPT Thread Sizing Info:
Thread Size Outside Diameter
1/8 NPT 0.405 Roughly 3/8"
1/4 NPT 0.540 Roughly 1/2
3/8 NPT 0.675 Roughly 5/8"
1/2 NPT 0.840 Roughly 7/8"
