10/2 AWG Gauge Marine Grade Wire Boat Cable Tinned Copper, Flat Black/Red For Sale

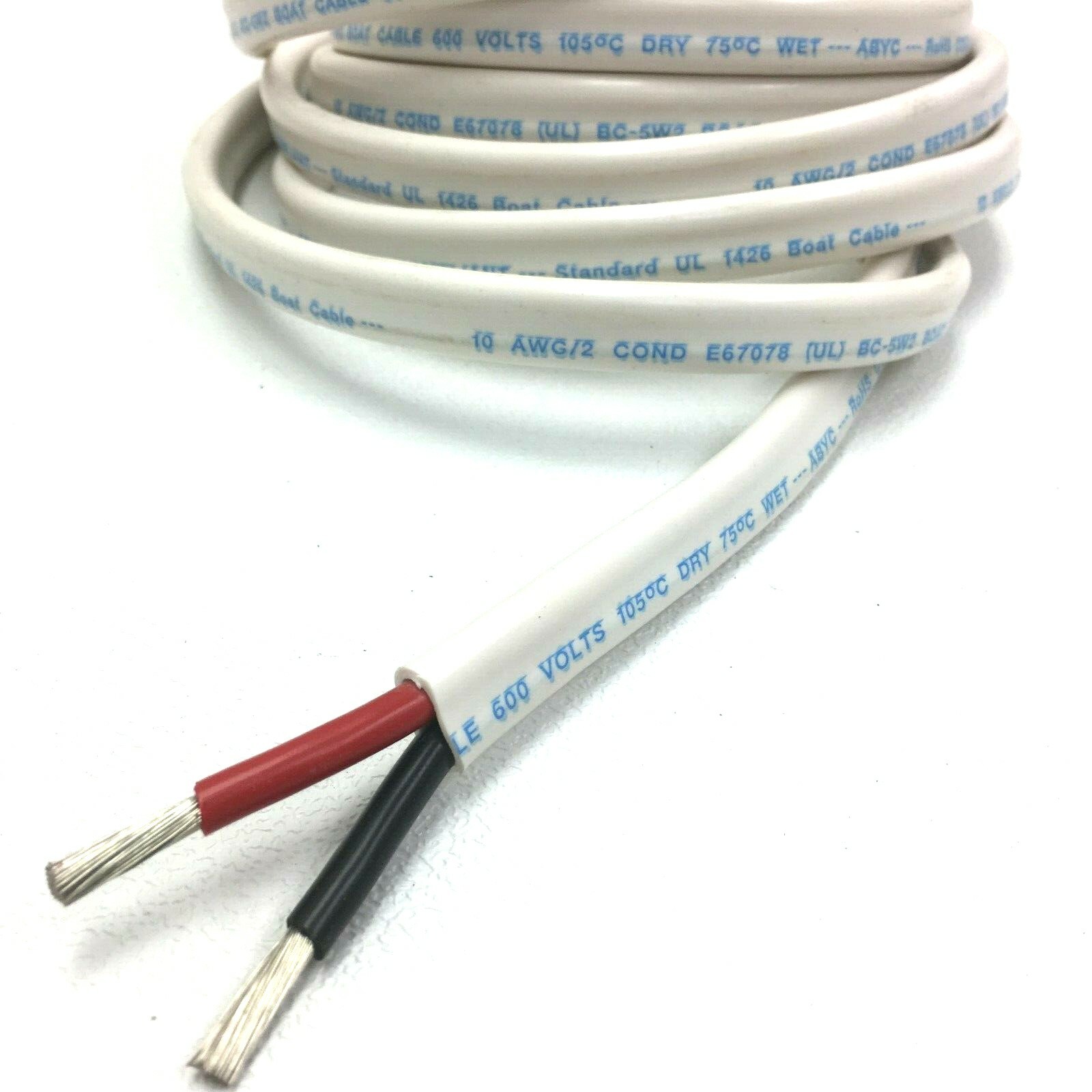

10 AWG 2 Conductor Wire, Marine Grade Flat Boat Cable withWhite overall jacketwithBlack andRed conductors inside used for wiring DC applications. This wire is UL1426 listed and exceeds the requirements of ABYC and the USCG (US Coast Guard) for installation on boats. Very flexible and designed to withstand the harsh marine environment.

• Color Code: Black and Red Conductors (Standard DC Color Code with Red for Positive and Black for Negative per ABYC)
• Copper stranding is tin plated to resist corrosion, Flexible Type III, Class K stranding
• Meets all applicable boat wiring regulations from ABYC and US Cost Guard for use on boats
• Rated 600 Volts Max with 105C Dry and 75C Wet (BC5-W2) temperature ratings and will remain flexible in extreme cold weather
• Jacket and insulation are resistant to oil, gas, salt water, battery acid, heat, abrasion and sunlight

Specifications for Flat Duplex Marine Wire:

Wire Size (AWG) Dimensions Weight/FT AmpsMax*
18/23/16" x 9/32" .049 lbs 20
16/23/16" x 5/16" .051 lbs 25
14/27/32" x 11/32".065 lbs 35
12/27/32" x 3/8".082 lbs 45
10/2 1/4" x 15/32" .128 lbs 60
8/211/32" x 5/8" .230 lbs 80
6/213/32" x 3/4" .364 lbs 120

*Inside of engine space de-rate amps by 15% due to extra heat
